Aluminum honeycomb panels are a marvel of modern engineering, offering exceptional strength-to-weight ratios and versatility across industries such as aerospace, construction, and automotive. One of their key attributes is thermal insulation, which is significantly influenced by the thickness of the honeycomb core. This article explores how variations in aluminum honeycomb core thickness impact thermal insulation performance and highlights the science behind this phenomenon.

Understanding Aluminum Honeycomb Panels

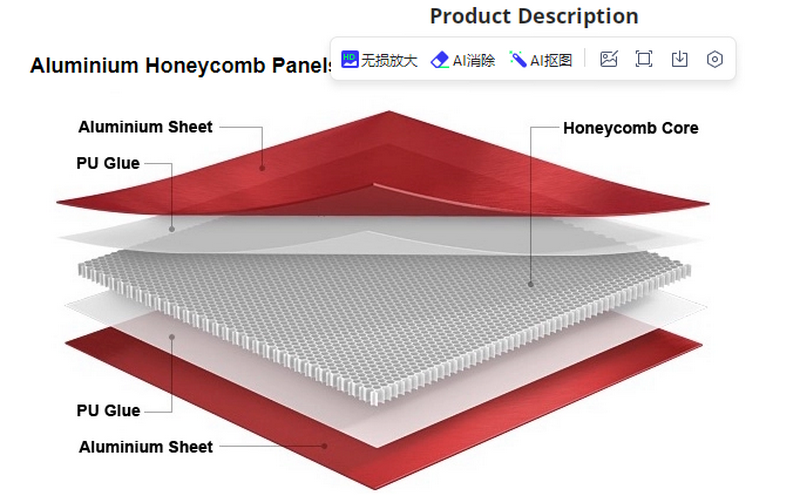

Aluminum honeycomb panels consist of three main components:

- Face Sheets: Thin layers of aluminum bonded to the core.

- Honeycomb Core: A lattice-like structure made from aluminum, forming hexagonal cells.

- Adhesive Layer: A bonding agent that holds the face sheets and core together.

The honeycomb core is the defining feature, providing rigidity, lightweight properties, and thermal insulation. The thickness of this core plays a crucial role in determining the panel's overall performance.

How Core Thickness Affects Thermal Insulation

The thermal insulation performance of aluminum honeycomb panels depends on several factors:

1. Air Gap Formation: The honeycomb structure creates air pockets within its cells. Thicker cores increase the depth of these air gaps, reducing heat transfer through conduction.

2. Material Density: While aluminum is a good conductor of heat, the honeycomb design minimizes material usage, reducing direct thermal pathways.

3. Thermal Resistance: Thicker cores offer greater resistance to heat flow due to the increased distance heat must travel.

Scientific Evidence

Studies have shown that increasing the thickness of the honeycomb core improves its ability to insulate against heat. For instance:

- A thicker core reduces thermal conductivity by creating more substantial barriers to heat transfer.

- Numerical models reveal that panels with thicker cores exhibit lower temperature gradients between their surfaces.

Applications Benefiting from Enhanced Thermal Insulation

1. Aerospace Industry:

- Used in spacecraft and aircraft for thermal protection systems.

- Helps mitigate extreme temperature variations during high-speed flight.

2. Construction:

- Ideal for building facades, roofing, and partitions where temperature control is essential.

- Reduces energy costs by improving insulation in residential and commercial buildings.

3. Automotive Sector:

- Applied in electric vehicles to manage battery temperatures.

- Enhances passenger comfort by minimizing heat transfer through vehicle panels.

4. Industrial Machinery:

- Used in enclosures for equipment operating in high-temperature environments.

Advantages of Optimizing Honeycomb Core Thickness

Improved Thermal Efficiency

Thicker cores enhance the panel's ability to resist heat transfer, making them suitable for applications requiring high thermal insulation.

Lightweight Design

Despite increased thickness, aluminum honeycomb panels remain lightweight compared to solid materials like steel or wood.

Cost-Effectiveness

By optimizing core thickness, manufacturers can achieve desired insulation levels without resorting to expensive materials or additional layers.

Durability

Thicker cores also contribute to structural integrity, ensuring long-term performance under varying environmental conditions.

Challenges and Considerations

While increasing core thickness offers numerous benefits, it also presents challenges:

1. Weight Increase: Although still lightweight, thicker cores add marginal weight compared to thinner alternatives.

2. Manufacturing Complexity: Producing thicker cores requires precise control over cell dimensions and bonding processes.

3. Cost Implications: Larger amounts of material and extended production times may increase costs.

To balance these factors, engineers often conduct simulations and testing to determine the optimal core thickness for specific applications.

Conclusion

The thickness of an aluminum honeycomb core is a critical factor in determining its thermal insulation capabilities. By increasing core thickness, engineers can significantly enhance a panel's ability to resist heat transfer while maintaining its lightweight and durable properties. This makes aluminum honeycomb panels an invaluable material for applications requiring efficient thermal management.

As technology advances, further innovations in manufacturing processes will likely expand the potential of aluminum honeycomb panels, enabling even greater customization and performance optimization for diverse industries.

Frequently Asked Questions

1. How does aluminum honeycomb core thickness influence thermal conductivity?

Thicker cores reduce thermal conductivity by increasing the distance heat must travel through the panel. The air pockets within the honeycomb cells act as insulators, further enhancing resistance to heat flow.

2. What are typical applications for aluminum honeycomb panels with thick cores?

Applications include aerospace (thermal protection systems), construction (insulated facades), automotive (battery enclosures), and industrial machinery (high-temperature enclosures).

3. Are there limitations to increasing honeycomb core thickness?

Yes. While thicker cores improve insulation and strength, they may slightly increase weight and production costs. Manufacturers must balance these factors based on application requirements.

4. How does honeycomb cell size interact with core thickness?

Smaller cell sizes combined with thicker cores can optimize insulation by minimizing heat transfer pathways while maintaining structural integrity.

5. Can aluminum honeycomb panels be customized for specific thermal insulation needs?

Absolutely. Manufacturers can adjust core thickness, cell size, and face sheet materials to meet specific thermal and structural requirements across industries.
