Aluminum honeycomb sandwich panels are a remarkable innovation in the field of materials engineering, combining lightweight properties with exceptional strength and durability. These panels are widely used in various industries, including aerospace, automotive, construction, and marine applications. This article will explore the manufacturing process of aluminum honeycomb sandwich panels in detail, highlighting the steps involved, the materials used, and the benefits of these panels.

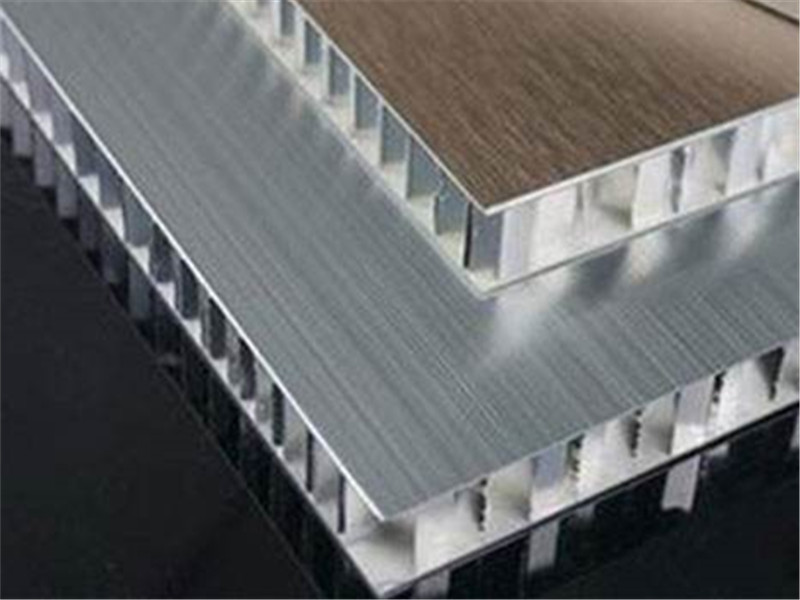

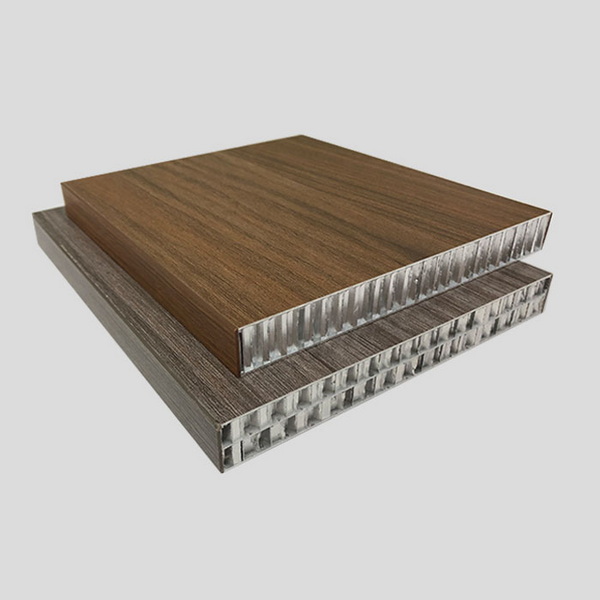

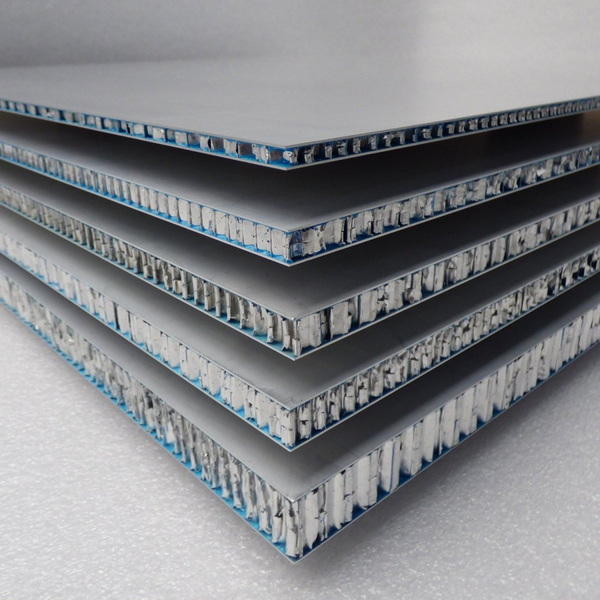

Aluminum honeycomb sandwich panels consist of two thin layers of aluminum sheets enclosing a core made of aluminum honeycomb. This unique structure provides a high strength-to-weight ratio, making it an ideal choice for applications where weight savings are critical without compromising structural integrity. The honeycomb core is formed by expanding aluminum foil into a series of hexagonal cells, which are then bonded to the outer aluminum sheets.
1. Lightweight: The honeycomb structure significantly reduces the weight of the panels, making them easier to handle and install.
2. High Strength: Despite their lightweight nature, these panels offer excellent strength and rigidity, making them suitable for demanding applications.
3. Thermal Insulation: The air-filled cells in the honeycomb core provide good thermal insulation properties.
4. Sound Insulation: The structure also helps in sound dampening, making these panels ideal for use in environments where noise reduction is essential.
5. Corrosion Resistance: Aluminum is naturally resistant to corrosion, enhancing the longevity of the panels in various environments.
The manufacturing of aluminum honeycomb sandwich panels involves several key steps, each critical to ensuring the quality and performance of the final product.
The first step in the manufacturing process is selecting the appropriate materials. The aluminum sheets used for the outer layers are typically made from high-strength alloys, such as 3003 or 5052, which offer excellent formability and corrosion resistance. The honeycomb core is made from the same aluminum alloy, ensuring compatibility and performance.
The core production process begins with aluminum foil, which is cut into strips. These strips are then subjected to a process called expansion, where they are heated and expanded into a honeycomb structure. This is achieved through a series of mechanical and thermal processes that create the characteristic hexagonal cells.
Once the honeycomb core is produced, it is bonded to the aluminum sheets. This bonding process is crucial for the structural integrity of the panel. There are several methods for bonding, including:
- Adhesive Bonding: A high-strength adhesive is applied to the surfaces of the honeycomb core and the aluminum sheets. The two components are then pressed together, allowing the adhesive to cure and form a strong bond.
- Mechanical Bonding: In some cases, mechanical fasteners or rivets may be used to secure the core to the sheets, although this method is less common due to the potential for added weight.
After bonding, the panels are placed in a press to ensure uniform pressure is applied across the surface. This step is essential for achieving a strong bond and ensuring that the panels are flat and free of defects. The panels are then cured, allowing the adhesive to fully set and bond the layers together.
Once the panels are cured, they undergo trimming to achieve the desired dimensions. This process involves cutting the panels to size and ensuring that the edges are smooth and free of sharp corners. Finishing processes may also include surface treatments, such as anodizing or painting, to enhance the appearance and corrosion resistance of the panels.
Quality control is a critical aspect of the manufacturing process. Each batch of panels is subjected to rigorous testing to ensure they meet industry standards and specifications. This may include tests for strength, thermal insulation, and sound absorption. Any panels that do not meet the required standards are rejected and recycled.
Once the panels pass quality control, they are packaged for shipping. Care is taken to ensure that the panels are protected during transport to prevent damage. The panels are typically stacked and secured with straps or shrink wrap to keep them stable during transit.
Aluminum honeycomb sandwich panels are used in a wide range of applications due to their unique properties. Some common uses include:
- Aerospace: Used in aircraft interiors, fuselage structures, and cargo floors due to their lightweight and strong characteristics.
- Automotive: Employed in vehicle body panels and interior components to reduce weight and improve fuel efficiency.
- Construction: Used in building facades, partitions, and roofing systems for their thermal insulation and aesthetic appeal.
- Marine: Ideal for boat hulls and interiors, providing strength while minimizing weight.
The manufacturing of aluminum honeycomb sandwich panels has evolved significantly over the years, with advancements in technology leading to improved efficiency and product quality. Some of the notable innovations include:
- Automated Production Lines: The introduction of automated machinery has streamlined the production process, reducing labor costs and increasing output. Automated cutting, bonding, and pressing systems ensure consistent quality and precision in panel manufacturing.
- Advanced Adhesives: The development of new adhesive formulations has enhanced the bonding process, allowing for stronger and more durable connections between the aluminum sheets and the honeycomb core. These adhesives are designed to withstand extreme temperatures and environmental conditions, further extending the lifespan of the panels.
- Sustainable Practices: As environmental concerns grow, manufacturers are increasingly adopting sustainable practices in the production of aluminum honeycomb panels. This includes using recycled aluminum materials and implementing energy-efficient processes to minimize waste and reduce the carbon footprint of manufacturing operations.
Looking ahead, the future of aluminum honeycomb sandwich panel manufacturing is promising, with several trends expected to shape the industry:
- Customization: As industries demand more specialized solutions, manufacturers are likely to offer greater customization options for aluminum honeycomb panels. This includes variations in core thickness, panel size, and surface finishes to meet specific application requirements.
- Integration with Smart Technologies: The integration of smart technologies, such as sensors and monitoring systems, into aluminum honeycomb panels could enhance their functionality. These smart panels could provide real-time data on structural integrity, temperature, and environmental conditions, making them ideal for use in critical applications like aerospace and construction.
- Increased Use in Renewable Energy: With the growing emphasis on renewable energy sources, aluminum honeycomb panels are expected to find increased applications in solar energy systems and wind turbine construction. Their lightweight and durable nature makes them suitable for supporting structures in these industries.
The manufacturing process of aluminum honeycomb sandwich panels is a complex yet fascinating journey that transforms raw materials into high-performance products. With their lightweight, strong, and versatile nature, these panels have become a staple in various industries, offering solutions that meet the demands of modern engineering.
They are lightweight, strong, provide thermal and sound insulation, and are resistant to corrosion.
The honeycomb core is produced by expanding aluminum foil into a series of hexagonal cells through mechanical and thermal processes.
Common bonding methods include adhesive bonding and mechanical bonding.
They are widely used in aerospace, automotive, construction, and marine industries.
Each batch of panels undergoes rigorous testing for strength, thermal insulation, and sound absorption to ensure they meet industry standards.
