Modern aircraft rely on lightweight yet durable aluminum skin panels to form the outer shell of the fuselage. These panels are engineered to withstand aerodynamic forces, pressurization cycles, and environmental stresses while maintaining structural integrity. Below, we explore the techniques, tools, and engineering principles involved in attaching aluminum skin panels to an aircraft's framework.

Structural Components of the Fuselage

Fuselage Frame

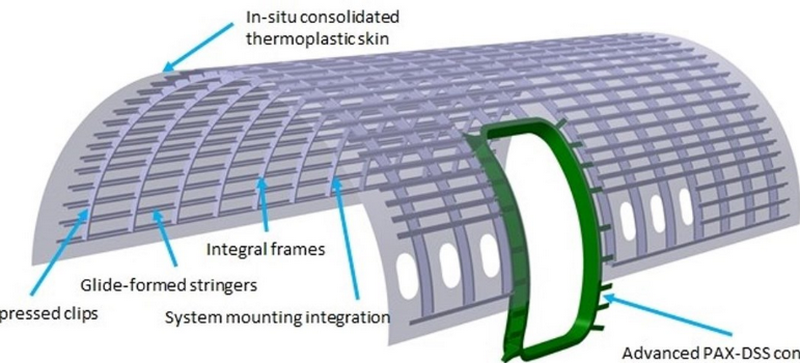

The fuselage frame consists of vertical ribs, horizontal stringers (longitudinal stiffeners), and bulkheads. These components form a grid-like skeleton that supports the aluminum skin panels. Cross ribs (curved or straight) distribute loads across the structure, while stringers reinforce the panels against bending and torsion.

Aluminum Skin Panels

Most panels are made from aluminum alloys (e.g., 2024-T3, 6061-T6) or advanced composites. Their thickness varies between 0.040 inches (1 mm) for low-stress areas and 0.250 inches (6.35 mm) near doors or high-load zones. Panels often include pre-formed stiffeners or are bonded to external stringers to enhance rigidity.

Methods of Attachment

1. Riveting

Riveting is the most common method for securing aluminum skin panels.

Steps:

- Alignment: Panels are aligned with the fuselage frame using temporary fasteners called *Clecos*. These hold the skin in place while ensuring proper edge distance (typically 2× rivet diameter) and spacing (4–12× rivet diameter).

- Drilling: Pilot holes are drilled through the panel and underlying structure.

- Rivet Installation: Solid or flush rivets (e.g., MS20470) are driven using a rivet gun and bucking bar.

Types of Rivets:

- Solid Rivets: Used in high-strength joints (e.g., wing spars).

- Blind Rivets: Ideal for hard-to-reach areas.

- Countersunk Rivets: Provide a smooth surface for aerodynamic efficiency.

Tools:

- Rivet gun

- Bucking bar

- Drill with #30 or #40 bits

2. Adhesive Bonding

High-strength adhesives (e.g., epoxy films) bond panels to the framework, reducing weight and stress concentrations.

Process:

- Surface preparation (cleaning, sanding).

- Adhesive application between the panel and frame.

- Curing under controlled temperature/pressure.

Advantages:

- Eliminates drill-induced stress fractures.

- Distributes loads evenly across joints.

3. Mechanical Fasteners

Bolts, screws, or specialty fasteners (e.g., Hi-Loks) are used in areas requiring frequent access or high repairability.

Applications:

- Engine mounts

- Access panels

Tools and Equipment

Tool	Purpose
Clecos	Temporarily hold panels in place
Rivet gun	Drive rivets into pre-drilled holes
Deburring tool	Smooth rough edges after drilling
Sealant applicator	Apply weatherproofing compounds

Challenges in Installation

1. Alignment Precision

Misaligned panels can create stress points. Jigs and laser-guided systems ensure accuracy.

2. Corrosion Prevention

Anodizing or alodining aluminum surfaces protects against oxidation.

3. Thermal Expansion

Allowances are made for temperature-induced material expansion during flight.

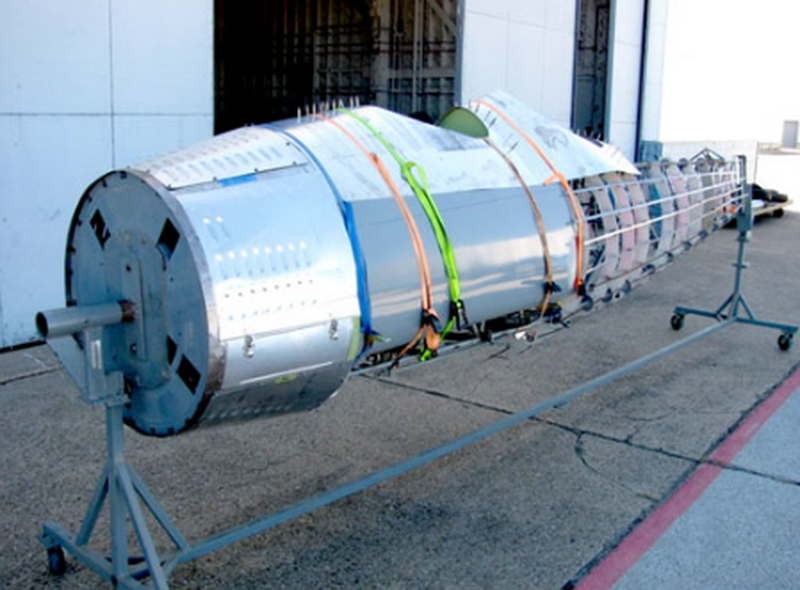

Case Study: Cessna 170B Fuselage Restoration

Kyle Fosso's restoration of a 1954 Cessna 170B involved replacing 75% of the fuselage skin:

- Damaged panels were removed by drilling out rivets.

- New aluminum sheets were cut, deburred, and formed using wooden molds.

- Panels were riveted to the frame with 0.040-inch-thick aluminum and MS20426 rivets.

Conclusion

Aluminum skin panels are attached to fuselage structures through riveting, adhesive bonding, or mechanical fasteners. Each method balances strength, weight, and maintainability. Precision in alignment, corrosion management, and adherence to engineering standards ensure the aircraft's safety and longevity. As materials evolve, hybrid approaches combining composites and advanced alloys are becoming standard.

Frequently Asked Questions

1. What materials are used for fuselage skin panels?

Most aircraft use aluminum alloys (2024-T3, 7075-T6) or composites like carbon fiber-reinforced polymer (CFRP). Aluminum balances strength, weight, and cost.

2. How are curved skin panels formed?

Panels are shaped using explosive forming (patent WO2004028719A1) or hydraulic presses. For repairs, artisans bend sheets over wooden molds.

3. What tools are essential for riveting?

A rivet gun, bucking bar, drill, and Clecos are critical. Proper technique prevents "smiling" or "crying" rivets (defective heads).

4. How do you prevent corrosion between panels?

Sealants (e.g., polysulfide) and corrosion-inhibiting primers are applied between layers.

5. Can composite panels be repaired like aluminum?

Composite repairs require specialized techniques like scarfing patches and curing with heat blankets.
