Foam filled aluminum honeycomb panels have gained significant attention in various industries due to their unique combination of lightweight properties and exceptional strength. These panels are engineered to provide excellent performance under high-impact conditions, making them ideal for applications in aerospace, automotive, and construction sectors. This article explores the performance characteristics of foam filled aluminum honeycomb panels when subjected to high-impact forces, examining their structural integrity, energy absorption capabilities, and overall durability.

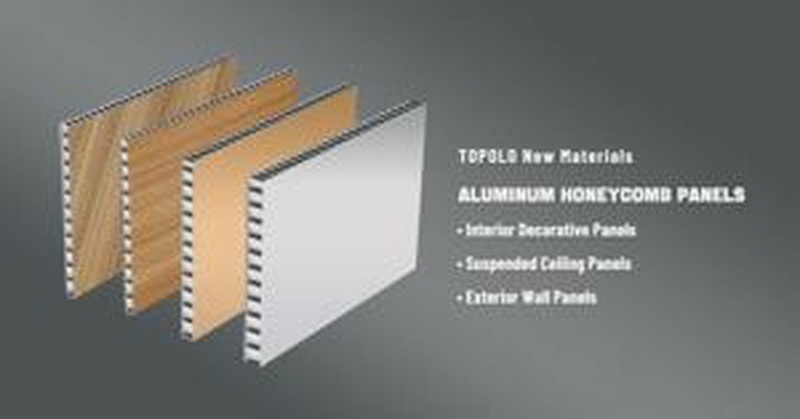

Foam filled aluminum honeycomb panels consist of a core made from aluminum honeycomb structure, which is then filled with a foam material. This design not only enhances the panel's mechanical properties but also contributes to its thermal insulation and sound-dampening capabilities. The combination of aluminum and foam creates a lightweight yet robust solution that can withstand significant stress.
The structure of these panels is crucial to their performance. The honeycomb core consists of hexagonal cells that provide high strength-to-weight ratios. When filled with foam, the panels gain additional properties such as:
- Increased Energy Absorption: The foam filling helps absorb impact energy, reducing the force transmitted through the panel.
- Enhanced Stiffness: The combination of aluminum and foam increases the stiffness of the panel, making it less likely to deform under stress.
- Improved Thermal Insulation: The foam acts as an insulator, helping maintain temperature stability within structures.

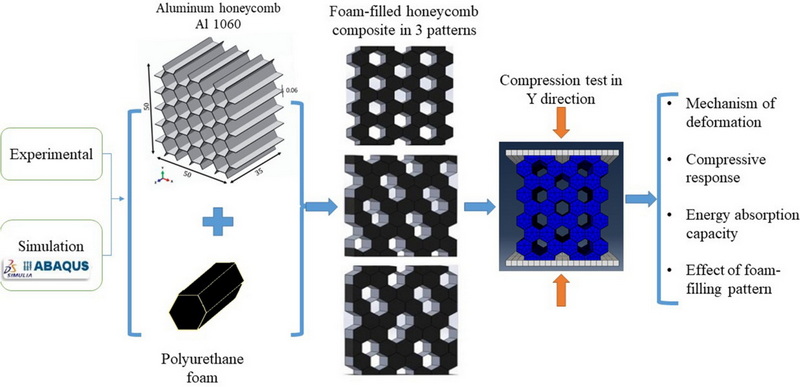

One of the most critical aspects of foam filled aluminum honeycomb panels is their ability to absorb energy during high-impact events. When an impact occurs, the honeycomb structure deforms, and the foam filling compresses. This dual action dissipates energy effectively, minimizing damage to both the panel and any structures it supports.
When compared to solid aluminum panels, foam filled aluminum honeycomb panels demonstrate superior energy absorption capabilities. Solid panels tend to transmit more impact force without significant deformation, whereas honeycomb panels distribute the load across a larger area.
To evaluate how foam filled aluminum honeycomb panels perform under high-impact conditions, various testing methods are employed:
- Drop Weight Tests: A standard method where a weight is dropped onto a panel from a specific height to assess its impact resistance.
- Dynamic Load Tests: These tests simulate real-world conditions by applying rapid loads to the panel to observe its behavior under stress.

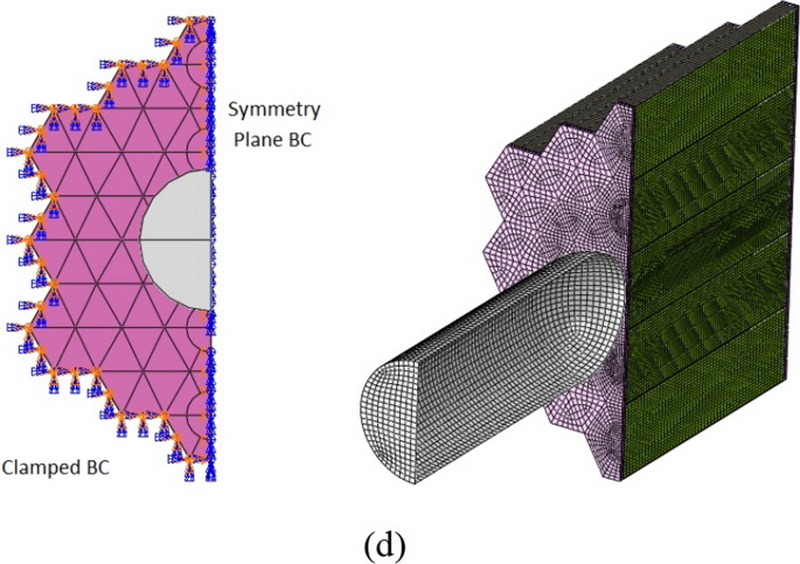

- Finite Element Analysis (FEA): A computational method that predicts how materials will react to external forces by simulating impacts on digital models.
In aerospace applications, weight savings are crucial for fuel efficiency. Foam filled aluminum honeycomb panels are used in aircraft interiors, fuselage structures, and cargo holds due to their lightweight nature and ability to withstand high-impact forces during turbulence or accidents.
The automotive sector utilizes these panels for crash protection systems and structural components. Their ability to absorb energy during collisions helps enhance passenger safety while maintaining vehicle performance.
In construction, foam filled aluminum honeycomb panels are employed in facades, roofing systems, and partition walls. Their durability and impact resistance make them suitable for high-traffic areas where accidental impacts may occur.
One of the primary advantages of foam filled aluminum honeycomb panels is their lightweight design. This characteristic allows for easier handling and installation while reducing overall structural weight.
These panels offer an impressive strength-to-weight ratio compared to traditional materials. This means they can withstand greater loads without adding unnecessary weight to structures or vehicles.
Aluminum is naturally resistant to corrosion, which enhances the longevity of foam filled aluminum honeycomb panels in various environments. This property makes them suitable for outdoor applications where exposure to moisture is a concern.
While initial costs may be higher than traditional materials, the long-term savings associated with reduced maintenance and increased durability make foam filled aluminum honeycomb panels a cost-effective choice over time.
The production process for foam filled aluminum honeycomb panels can be complex due to the need for precise manufacturing techniques. Ensuring uniformity in foam filling is essential for consistent performance across all panels.
While aluminum is recyclable, the production process can have environmental implications. Manufacturers are increasingly focusing on sustainable practices to minimize their carbon footprint during production.
Foam filled aluminum honeycomb panels demonstrate exceptional performance under high-impact conditions due to their unique structural design and material properties. Their ability to absorb energy effectively makes them suitable for various applications across multiple industries. As technology advances, we can expect further innovations in the manufacturing processes and applications of these versatile materials.
Foam filled aluminum honeycomb panels offer benefits such as lightweight design, high strength-to-weight ratio, excellent energy absorption capabilities, corrosion resistance, and cost efficiency over time.
Compared to traditional materials like solid metal or plywood, foam filled aluminum honeycomb panels provide superior strength-to-weight ratios and better impact resistance while being lighter in weight.
These panels are commonly used in aerospace, automotive, construction, marine, and military industries due to their lightweight nature and excellent performance under stress.
Common testing methods include drop weight tests, dynamic load tests, and finite element analysis (FEA) simulations to evaluate how these panels respond under high-impact conditions.
While aluminum is recyclable and offers some environmental benefits, the production process can have ecological impacts. Manufacturers are working towards sustainable practices to mitigate these effects.
