Aluminum honeycomb panels are widely recognized for their exceptional strength-to-weight ratio, making them a popular choice in various industries, including aerospace, automotive, and construction. One of the critical factors influencing the performance of these panels is their cell size, which directly impacts their density. In this article, we will explore how cell size affects the density of aluminum honeycomb panels, the implications of this relationship, and the various applications that benefit from these properties.
Aluminum honeycomb panels consist of a core made of aluminum honeycomb material sandwiched between two outer layers, typically made of aluminum sheets. The honeycomb structure resembles a beehive, with hexagonal cells that provide strength and rigidity while minimizing weight. This design allows for efficient load distribution and energy absorption, making aluminum honeycomb panels ideal for applications where weight reduction is crucial without compromising structural integrity.

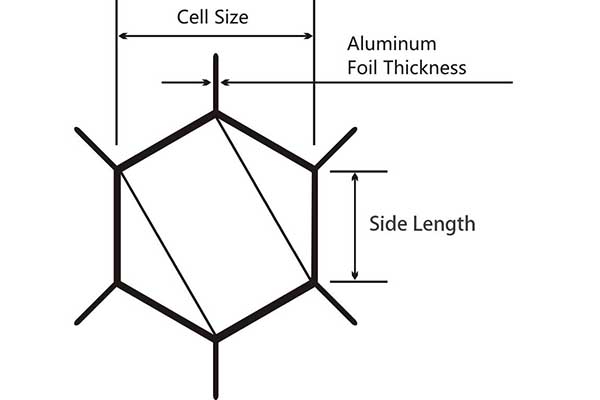

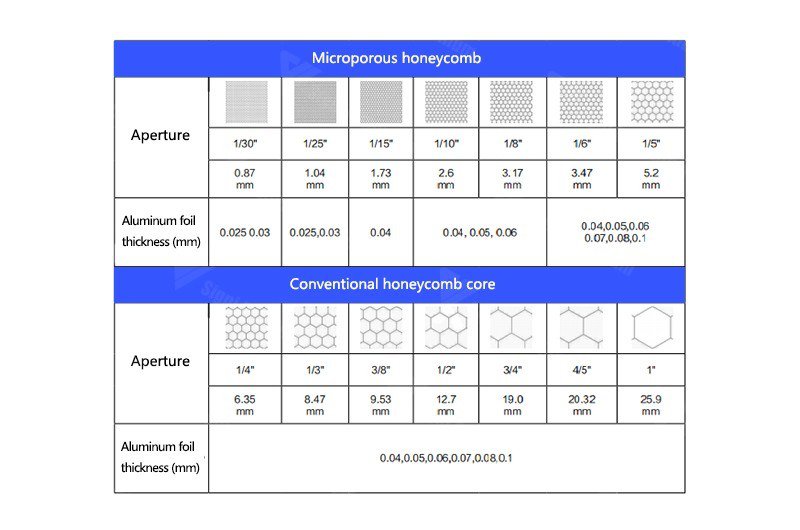

Cell size refers to the dimensions of the individual cells within the honeycomb structure. It can vary significantly depending on the intended application and desired properties of the panel. Generally, larger cell sizes result in lower density, while smaller cell sizes lead to higher density. This relationship is crucial for engineers and designers when selecting materials for specific applications.
1. Density Variations: The density of aluminum honeycomb panels is determined by the volume of the material and the volume of the air within the cells. Larger cells contain more air and less material, resulting in a lower overall density. Conversely, smaller cells have more material relative to the air, leading to a higher density. This variation in density can significantly affect the panel's mechanical properties, including strength, stiffness, and energy absorption.
2. Mechanical Properties: The mechanical properties of aluminum honeycomb panels, such as compressive strength and shear strength, are influenced by cell size. Smaller cells tend to provide greater strength and stiffness due to the increased surface area of the material in contact with the load. This makes smaller cell panels suitable for applications requiring high structural integrity, such as aircraft components and high-performance vehicles.
3. Weight Considerations: In industries where weight is a critical factor, such as aerospace and automotive, the choice of cell size can have a significant impact on the overall weight of the structure. Larger cell sizes can reduce weight, which is advantageous for fuel efficiency and performance. However, this must be balanced against the need for strength and durability, as larger cells may compromise the panel's ability to withstand loads.
Aluminum honeycomb panels are used in a wide range of applications due to their unique properties. Here are some common uses:
1. Aerospace: In the aerospace industry, weight reduction is paramount. Aluminum honeycomb panels are used in aircraft interiors, fuselage structures, and wing components. The ability to customize cell size allows engineers to optimize the balance between weight and strength.
2. Automotive: The automotive industry utilizes aluminum honeycomb panels in various components, including doors, hoods, and structural reinforcements. The lightweight nature of these panels contributes to improved fuel efficiency and performance.
3. Construction: In construction, aluminum honeycomb panels are used for facades, partitions, and ceilings. Their lightweight and durable nature makes them an excellent choice for modern architectural designs.
4. Marine: The marine industry benefits from aluminum honeycomb panels in boat construction and interior applications. The corrosion resistance of aluminum combined with the lightweight properties of honeycomb structures makes them ideal for marine environments.
5. Furniture: Aluminum honeycomb panels are increasingly used in furniture design, providing a modern aesthetic while maintaining strength and durability. The versatility of cell size allows for creative designs without sacrificing functionality.
Understanding the science behind how cell size impacts density involves delving into material science and engineering principles. The honeycomb structure is designed to maximize strength while minimizing weight. The geometry of the cells plays a crucial role in this balance.
The hexagonal shape of the cells in aluminum honeycomb panels is not arbitrary; it is a design choice that optimizes load distribution. When a load is applied to the panel, the honeycomb structure allows for even distribution of stress across the surface. Smaller cells can better distribute loads due to their increased number and surface area, which helps prevent localized failure.
Another significant aspect of aluminum honeycomb panels is their energy absorption capabilities. In applications such as crash protection in vehicles or impact resistance in aerospace components, the ability of the panel to absorb energy is critical. Smaller cells can deform more easily under stress, allowing for greater energy absorption before failure occurs. This characteristic is essential for safety applications where impact resistance is a priority.
As industries become more environmentally conscious, the choice of materials and their properties is under scrutiny. Aluminum honeycomb panels offer several environmental benefits:
1. Recyclability: Aluminum is a highly recyclable material, and aluminum honeycomb panels can be recycled at the end of their life cycle. This reduces waste and promotes sustainability in manufacturing processes.
2. Energy Efficiency: The lightweight nature of aluminum honeycomb panels contributes to energy efficiency in transportation. Lighter vehicles consume less fuel, leading to lower greenhouse gas emissions.
3. Durability: The corrosion resistance of aluminum ensures that honeycomb panels have a long lifespan, reducing the need for frequent replacements and minimizing resource consumption.
The impact of cell size on the density of aluminum honeycomb panels is a critical consideration for engineers and designers across various industries. Understanding this relationship allows for the optimization of material properties to meet specific application requirements. Whether it's achieving lightweight structures in aerospace or enhancing strength in automotive applications, the choice of cell size plays a pivotal role in the performance of aluminum honeycomb panels.
As industries continue to evolve and demand more efficient materials, aluminum honeycomb panels will remain a vital component in innovative designs. By leveraging the unique properties of these panels, manufacturers can create products that are not only lightweight and strong but also environmentally friendly, as aluminum is a recyclable material.

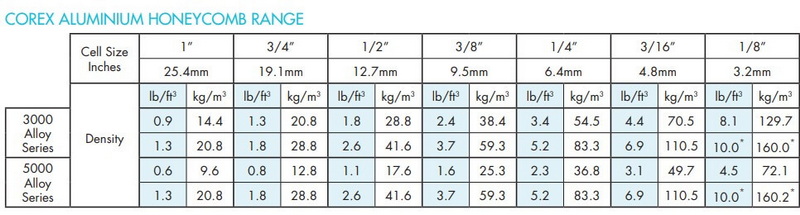

The density of aluminum honeycomb panels typically ranges from 30 to 150 kg/m³, depending on the cell size and material thickness.
Smaller cell sizes generally provide better thermal insulation due to the increased surface area of the material, which helps reduce heat transfer.
Yes, aluminum honeycomb panels can be designed for high-temperature applications, but the specific material and coating must be selected to withstand the required temperatures.
Aluminum honeycomb panels offer a superior strength-to-weight ratio, better energy absorption, and reduced weight compared to solid materials, making them ideal for various applications.
The appropriate cell size depends on the specific requirements of your application, including weight constraints, strength needs, and environmental factors. Consulting with a materials engineer can help in making the right choice.
