The aluminum honeycomb manufacturing process is a complex series of steps that transform raw aluminum foil into a lightweight yet incredibly strong material used in various industries, including aerospace, construction, and automotive. This process involves several key stages: printing adhesive lines, cutting and stacking, bonding, cutting into slices, and expansion. Below, we will delve into each stage, highlighting the intricacies and technologies involved.

Introduction to Aluminum Honeycomb

Aluminum honeycomb is renowned for its unique structure, which resembles a honeycomb. This structure provides exceptional strength-to-weight ratio, making it ideal for applications where minimizing weight while maintaining structural integrity is crucial. The manufacturing process ensures that the final product can be tailored to meet specific requirements, such as varying cell sizes and thicknesses.

The Aluminum Honeycomb Manufacturing Process

Step 1: Printing Adhesive Lines

The process begins with large rolls of aluminum foil being passed through a printer. This printer applies adhesive lines in a specific pattern onto the foil. These lines are crucial as they determine the structure of the honeycomb cells when the foil is later expanded.

Step 2: Cutting and Stacking

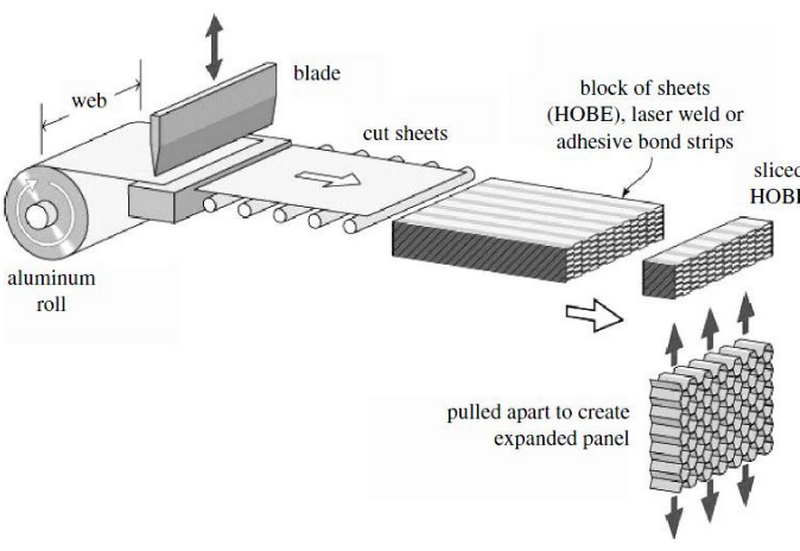

After printing, the foil is cut into sheets. The size and number of these sheets depend on the desired dimensions of the honeycomb block. The sheets are then stacked in a specific sequence to create the honeycomb pattern. This stacking process is critical, as it ensures that the adhesive lines are staggered, allowing for the formation of hexagonal cells when expanded.

Step 3: Bonding

The stacked sheets are then placed in a heated press. The heat activates the adhesive, bonding the sheets together to form a solid block of honeycomb. This step is essential for creating a strong and cohesive structure.

Step 4: Cutting into Slices

Once bonded, the block can be cut into slices of varying thicknesses, depending on the customer's requirements. This flexibility allows aluminum honeycomb to be used in a wide range of applications.

Step 5: Expansion

The final step involves expanding the honeycomb block to create the characteristic honeycomb structure. This is done by applying tension to the block, causing the cells to open up. The expanded honeycomb can then be used as is or sandwiched between aluminum sheets to create composite panels.

Applications of Aluminum Honeycomb

Aluminum honeycomb is used in various industries due to its unique properties:

- Aerospace: For lightweight structural components.

- Construction: In composite panels for building facades.

- Automotive: For lightweight vehicle components.

Conclusion

The aluminum honeycomb manufacturing process is a sophisticated sequence of steps that transforms aluminum foil into a versatile and powerful material. From printing adhesive lines to expansion, each stage requires precision and technology to ensure the final product meets the high standards required by various industries. The ability to tailor the honeycomb's properties, such as cell size and thickness, makes it an indispensable component in modern manufacturing.

Frequently Asked Questions

1. What is the primary material used in aluminum honeycomb manufacturing?

Aluminum honeycomb is primarily made from aluminum foil, which is processed to create the honeycomb structure.

2. How does the stacking process affect the honeycomb structure?

The stacking process is crucial as it determines the pattern of the honeycomb cells. Sheets are stacked in a staggered manner to create hexagonal cells when expanded.

3. What is the purpose of the heated press in the manufacturing process?

The heated press is used to activate the adhesive lines printed on the aluminum foil, bonding the sheets together to form a solid block of honeycomb.

4. Can aluminum honeycomb be customized for specific applications?

Yes, aluminum honeycomb can be customized by varying the cell size and thickness of the honeycomb block to meet specific application requirements.

5. What are some common applications of aluminum honeycomb?

Aluminum honeycomb is commonly used in aerospace, construction, and automotive industries due to its lightweight yet strong properties.
