Bending aluminum sheet metal is a crucial skill in metalworking, with applications ranging from DIY projects to industrial manufacturing. This comprehensive guide will walk you through the process of bending aluminum sheet metal, covering essential techniques, tools, and best practices to achieve precise and professional results.

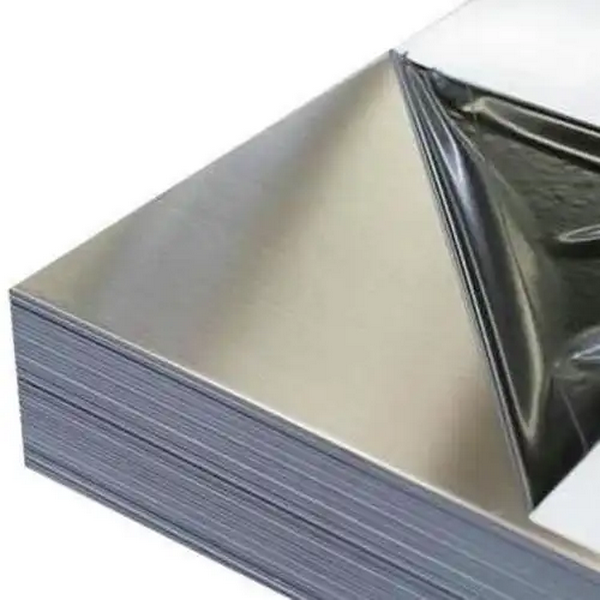

Aluminum is a popular choice for sheet metal projects due to its lightweight nature, corrosion resistance, and malleability. However, it's important to understand the properties of aluminum before attempting to bend it.
Different aluminum alloys have varying properties that affect their bendability:
- 6061-T6: Commonly used, but can be challenging to bend due to its hardness
- 5052-H32: More malleable and easier to bend
- 3003-H14: Offers a good balance between strength and formability
The thickness of the aluminum sheet plays a crucial role in the bending process:
- Thinner sheets (0.5mm - 1.5mm) are easier to bend
- Thicker sheets (2mm and above) require more force and may need special techniques
To successfully bend aluminum sheet metal, you'll need the following tools:
1. Sheet Metal Brake: The primary tool for making precise bends
2. Hammer and Rubber Mallet: For manual bending and adjustments
3. Measuring Tools: Tape measure, square, and protractor
4. Safety Equipment: Gloves, safety glasses, and protective clothing
Before bending aluminum sheet metal, proper preparation is essential:
1. Clean the metal surface to remove any dirt or oils
2. Mark the bending lines clearly using a permanent marker or scribe
3. Determine the bend radius and angle required for your project
4. Calculate the bend allowance to ensure accurate dimensions
A sheet metal brake is the most efficient tool for bending aluminum:
1. Set up the brake according to your desired bend angle
2. Insert the aluminum sheet, aligning it with your marked bend line
3. Clamp the sheet securely in place
4. Lift the bending leaf to create the bend
5. Release the clamp and remove the bent piece
For smaller projects or when a brake is unavailable:
1. Use a sturdy edge (like a workbench) as a bending surface
2. Clamp the sheet metal securely, leaving the portion to be bent exposed
3. Apply even pressure along the bend line using a rubber mallet
4. Gradually increase the bend angle until you reach the desired shape
For thicker aluminum sheets or complex bends:
1. Use a heat gun or torch to warm the bend area
2. Heat evenly along the bend line until the metal becomes more pliable
3. Bend the metal using manual techniques or a brake
4. Allow the metal to cool naturally before handling
1. Always bend across or diagonal to the grain of the metal to prevent cracking
2. Use a larger bend radius for thicker sheets to reduce the risk of fracturing
3. Account for springback by overbending slightly (1-3 degrees)
4. Lubricate the bend area to reduce friction and improve results
5. Practice on scrap pieces before attempting your final project
If you experience cracking during bending:
- Increase the bend radius
- Try annealing the aluminum before bending
- Use a softer alloy if possible
To achieve more consistent bends:
- Ensure your brake is properly aligned and calibrated
- Apply even pressure along the entire bend line
- Use guide marks for precise alignment
To compensate for springback:
- Overbend slightly (1-3 degrees more than desired)
- Use a smaller die opening in your brake
- Consider using a bottoming die for sharper bends
When creating parts with multiple bends:
1. Plan your bending sequence carefully
2. Start with the innermost bends and work outward
3. Use a brake with adjustable fingers for complex shapes
For creating curved or rounded bends:
1. Use a slip roll machine for gentle curves
2. Employ a press brake with specialized tooling for tighter curves
3. Consider incremental bending techniques for complex shapes
After bending your aluminum sheet metal:
1. Inspect the bends for accuracy and quality
2. Deburr any sharp edges using a file or deburring tool
3. Clean the surface to remove any lubricants or debris
4. Apply any necessary finishes (paint, powder coating, anodizing)
When working with aluminum sheet metal:
- Always wear appropriate personal protective equipment (PPE)
- Be cautious of sharp edges and burrs
- Use proper lifting techniques for larger sheets
- Ensure adequate ventilation when using heat bending techniques
Bent aluminum sheet metal finds use in various industries and applications:
1. Automotive: Body panels, trim, and interior components
2. Aerospace: Aircraft skin and structural elements
3. Architecture: Facades, roofing, and decorative elements
4. Electronics: Enclosures and heat sinks
5. Furniture: Modern designs and outdoor pieces
Aluminum is a highly recyclable material, making it an environmentally friendly choice for sheet metal projects. When working with aluminum:
- Recycle any scrap material
- Consider using recycled aluminum sheets for your projects
- Properly dispose of any chemicals or lubricants used in the bending process
The field of aluminum sheet metal bending continues to evolve:
1. Advanced CNC bending machines for increased precision
2. Simulation software for predicting bend outcomes
3. New alloys with improved bendability and strength
4. Integration of AI and machine learning in bending processes
Mastering the art of bending aluminum sheet metal opens up a world of possibilities for both DIY enthusiasts and professional fabricators. By understanding the properties of aluminum, using the right tools and techniques, and following best practices, you can achieve precise and high-quality bends in your projects. Remember to always prioritize safety, practice on scrap pieces, and continually refine your skills to become proficient in this valuable metalworking skill.
The minimum bend radius for aluminum sheet metal depends on the alloy and thickness. As a general rule, the minimum inside bend radius should be at least 1-3 times the material thickness. For example, for 1mm thick aluminum, the minimum bend radius should be 1-3mm. However, softer alloys may allow for tighter bends, while harder alloys may require larger radii to prevent cracking.
To prevent springback when bending aluminum:
1. Overbend slightly (1-3 degrees more than the desired angle)
2. Use a smaller die opening in your brake
3. Consider using a bottoming die for sharper bends
4. Apply pressure for a longer duration during the bend
5. Use heat bending techniques for thicker sheets
Yes, you can bend anodized aluminum sheet metal, but there are some considerations:
1. The anodized coating may crack or craze at tight bend radii
2. Use a larger bend radius to minimize damage to the coating
3. Protect the surface with tape or padding during the bending process
4. Consider bending the aluminum before anodizing if possible
For bending aluminum sheet metal at home, you'll need:
1. A sheet metal brake (manual or hydraulic)
2. Measuring tools (tape measure, square, protractor)
3. Marking tools (permanent marker, scribe)
4. Safety equipment (gloves, safety glasses)
5. Rubber mallet for adjustments
6. Clamps for securing the metal
7. Optional: heat gun for heat bending techniques
To calculate the bend allowance for aluminum sheet metal:
1. Determine the bend angle and inside bend radius
2. Use the formula: BA = (π/180) × (R + KT) × A
Where:
BA = Bend Allowance
R = Inside Bend Radius
K = K-factor (typically 0.33 for aluminum)
T = Material Thickness
A = Bend Angle in degrees
Alternatively, use online calculators or bend allowance tables specific to aluminum for quick reference.
