Bending aluminum sheet is a crucial skill in metalworking, with applications ranging from DIY projects to industrial manufacturing. This comprehensive guide will explore various techniques, tools, and tips for effectively bending aluminum sheet, ensuring precise and professional results.
Aluminum is a versatile and lightweight metal, making it ideal for many applications. However, its properties also present unique challenges when bending:
- Malleability: Aluminum is highly malleable, allowing for easy shaping.
- Springback: Aluminum tends to partially return to its original shape after bending.
- Strength-to-weight ratio: Despite its lightness, aluminum can be surprisingly strong.
- Corrosion resistance: Aluminum naturally forms a protective oxide layer.
Understanding these properties is crucial for successful bending operations.
To bend aluminum sheet effectively, you'll need the right tools. Here are some essential equipment options:
A press brake is a powerful machine that uses a punch and die to create precise bends in metal sheets.
For smaller projects or workshops, a manual folding machine offers a more affordable option.
Hydraulic bending machines provide increased power and precision for thicker aluminum sheets.
For simple bends or small-scale projects, hand tools like pliers, hammers, and bending bars can be effective.
Air bending is a versatile technique that uses a V-shaped die and allows for various bend angles with the same tooling.
1. Position the aluminum sheet on the die.
2. Lower the punch to create the desired bend angle.
3. Account for springback by overbending slightly.
Bottom bending provides more precise angles by fully contacting the sheet with the die bottom.
1. Place the sheet on the die.
2. Lower the punch until the sheet fully contacts the die bottom.
3. Apply pressure to create a sharp, accurate bend.

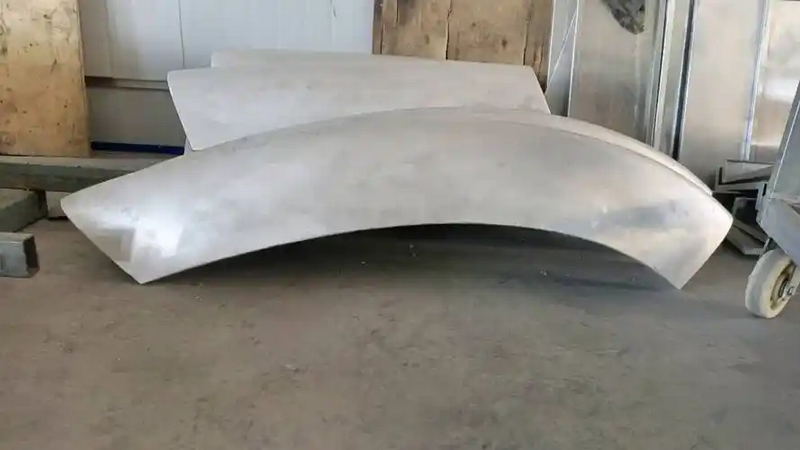

This technique is ideal for creating smooth, continuous bends in tubing or profiles.
1. Secure the aluminum in the bending machine.
2. Rotate the bending die to form the desired curve.
3. Use mandrels for internal support if necessary.
1. Prepare the material:
- Clean the aluminum sheet and mark your bend lines clearly.
2. Set up the press brake:
- Install the appropriate punch and die.
- Align the tooling carefully.
- Adjust the back gauge for precise positioning.
3. Position the sheet:
- Place the aluminum sheet against the back gauge, ensuring it's square and level.
4. Make the bend:
- Lower the punch slowly.
- Watch for any misalignment or shifting.
- Continue until the desired angle is achieved.
5. Check and adjust:
- Measure the bend angle.
- Make any necessary adjustments for springback.
6. Repeat for multiple bends:
- Reposition the sheet and repeat the process for additional bends.
For smaller projects or when specialized equipment isn't available, you can bend aluminum sheet by hand:
1. Mark the bend line: Use a straight edge and marker to clearly indicate where you want to bend.
2. Create a bending jig:
- Secure two pieces of wood or metal to form a 90-degree angle.
- Clamp the aluminum sheet between them, aligning the bend line with the edge.
3. Apply pressure:
- Use a rubber mallet or block of wood to gradually apply pressure along the bend line.
- Work slowly and evenly to avoid creases or uneven bends.
4. Refine the bend:
- Use pliers or a bending bar for final adjustments.
- Tap gently with a hammer to sharpen the bend if needed.
1. Choose the right alloy: Some aluminum alloys are more suitable for bending than others. 6061-T6 and 5052-H32 are popular choices for their formability.
2. Consider sheet thickness: Thicker sheets may require more force and specialized equipment.
3. Use the correct bend radius: The minimum bend radius should be at least 1-2 times the material thickness to avoid cracking.
4. Account for springback: Overbend slightly to compensate for the natural tendency of aluminum to spring back.
5. Apply heat for thick sheets: Heating the bend area can increase malleability for thicker aluminum sheets.
6. Protect the surface: Use protective pads or films to prevent scratching or marring the aluminum surface during bending.
7. Maintain proper lubrication: Lubricate tooling and contact points to reduce friction and improve bend quality.
Laser bending uses a focused laser beam to heat and bend aluminum sheets with high precision.

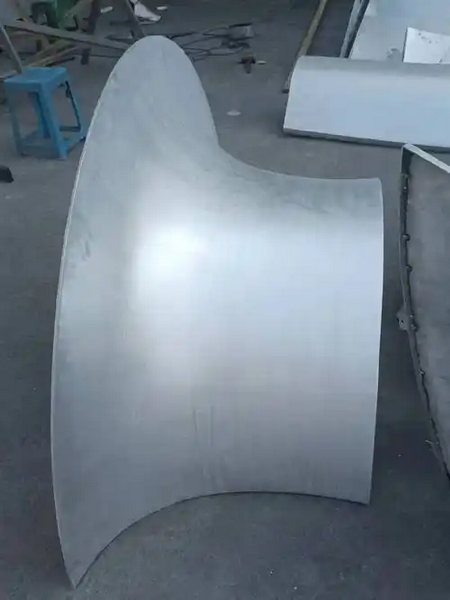

This technique uses a CNC-controlled tool to gradually form complex shapes in aluminum sheets.
When bending aluminum sheet, always prioritize safety:
- Wear appropriate personal protective equipment (PPE), including gloves and safety glasses.
- Be cautious of sharp edges on cut aluminum sheets.
- Follow proper machine operating procedures and safety guidelines.
- Ensure adequate ventilation when working with heated aluminum.

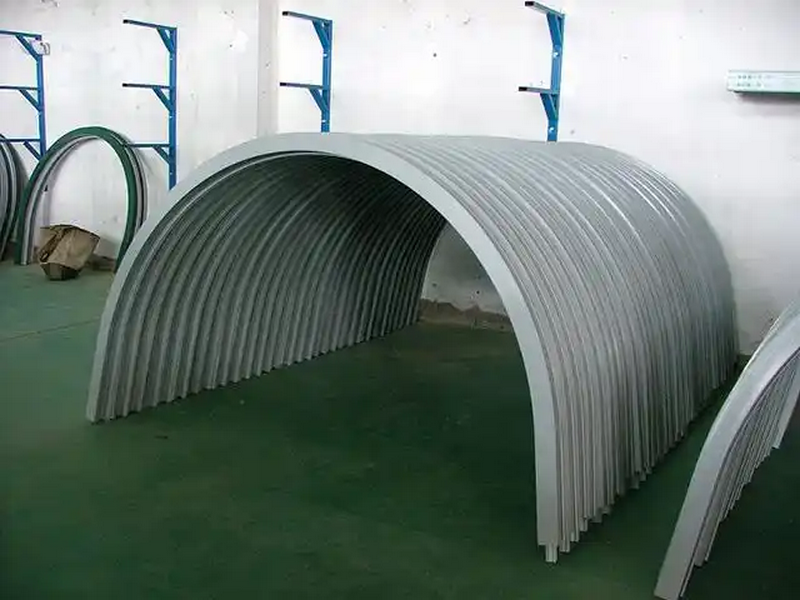

Bent aluminum sheets find use in various industries and applications:
1. Automotive: Body panels, trim, and structural components.
2. Aerospace: Aircraft skin and interior components.
3. Architecture: Facades, roofing, and decorative elements.
4. Consumer goods: Electronics casings and appliance parts.
5. Signage: Custom-shaped signs and displays.
To illustrate the practical application of aluminum sheet bending, let's examine a custom canopy project for a four-wheel-drive vehicle:
1. Design phase:
- Create detailed drawings with precise measurements.
- Determine bend locations and angles.
2. Material selection:
- Choose 1.6mm thick aluminum sheet for durability and weight savings.
3. Preparation:
- Cut sheets to size.
- Mark bend lines clearly.
4. Bending process:
- Use a manual bending brake for most bends.
- Apply the router technique to create weakened bend lines for sharper angles.
5. Assembly:
- Join bent panels using rivets or welding.
- Install weatherproofing seals.
6. Finishing:
- Sand and prepare surfaces.
- Apply paint or powder coating for protection and aesthetics.
- Cause: Uneven pressure or misalignment.
- Solution: Ensure proper alignment and apply pressure evenly along the bend line.
- Cause: Bending radius too small or material too thick.
- Solution: Increase bend radius or use a softer aluminum alloy.
- Cause: Natural material properties.
- Solution: Overbend slightly and use bottom bending techniques for more precise angles.
As technology advances, new methods for bending aluminum sheets are emerging:
1. AI-powered bending machines: Intelligent systems that optimize bend sequences and compensate for material variations.
2. Robotic bending cells: Automated systems that can handle complex bending operations with high precision.
3. Advanced alloys: Development of new aluminum alloys with improved bending characteristics.
4. Simulation software: More accurate prediction of springback and stress distribution during bending.
Bending aluminum sheet is a versatile skill that opens up a world of possibilities in metalworking and fabrication. By understanding the properties of aluminum, choosing the right tools and techniques, and following best practices, you can achieve precise and professional results in your projects. Whether you're working on a small DIY task or a large-scale industrial application, mastering the art of bending aluminum sheet will enhance your capabilities and expand your creative horizons.
The minimum bend radius for aluminum sheet typically ranges from 1 to 2 times the material thickness. For example, a 1mm thick sheet should have a minimum bend radius of 1-2mm. However, this can vary depending on the specific aluminum alloy and its temper.
To prevent scratching when bending aluminum sheet:
- Use protective films or pads on tooling surfaces.
- Ensure all contact points are clean and free of debris.
- Consider using nylon or plastic tools for manual bending operations.
- Regularly maintain and polish bending equipment to remove any burrs or rough spots.
Yes, you can bend anodized aluminum sheet, but there are some considerations:
- The anodized layer may crack or craze at tight bend radii.
- Use larger bend radii when possible to minimize damage to the anodized surface.
- For best results, bend the aluminum before anodizing if the manufacturing process allows.
- If bending after anodizing is necessary, use protective materials and gentle techniques to minimize surface damage.
Air bending and bottom bending are two different techniques used in press brake operations:
Air Bending:
- The punch doesn't fully press the material into the die.
- Allows for different bend angles with the same tooling.
- Requires less force but may be less precise.
Bottom Bending:
- The material is pressed fully against the bottom of the die.
- Produces more accurate and consistent bends.
- Requires more force and specific tooling for each angle.
Calculating springback for aluminum sheet bending involves several factors:
1. Determine the K-factor for your specific aluminum alloy and thickness.
2. Use the following formula: Springback Angle = (180 / π) * (L / T) * (σy / E)
Where:
L = bend allowance
T = material thickness
σy = yield strength of the material
E = modulus of elasticity
Alternatively, use bending calculators or software for more accurate results. In practice, it's often necessary to perform test bends and adjust based on actual results.
