How To Build A Solar Panel Out of Aluminum Cans?

Content Menu

Introduction

>> Materials Needed

Step-by-Step Instructions

>> Step 1: Prepare the Cans

>> Step 2: Assemble the Frame

>> Step 3: Glue the Cans Together

>> Step 4: Paint the Cans and Frame

>> Step 5: Attach the Plexiglas Cover

>> Step 6: Install Air Intake and Output Tubes

>> Step 7: Add a Fan (Optional)

>> Step 8: Insulate the Back

Example Projects

>> Project 1: Seattle Backyard Studio

>> Project 2: Greenhouse Heating

Benefits and Limitations

>> Benefits

>> Limitations

Conclusion

Frequently Asked Questions

>> 1. What Materials Are Needed to Build a Solar Panel Out of Aluminum Cans?

>> 2. How Do Solar Panels Made from Aluminum Cans Work?

>> 3. What Are the Benefits of Using Aluminum Cans for Solar Heating?

>> 4. What Are the Limitations of Solar Panels Made from Aluminum Cans?

>> 5. Can These Solar Panels Be Used for Large-Scale Heating?

Citations:

Building a solar panel out of aluminum cans is a creative and eco-friendly way to harness solar energy for heating purposes. This DIY project not only reduces waste but also provides a cost-effective solution for supplemental home heating. Here's a comprehensive guide on how to build a solar panel using recycled aluminum cans.

A Solar Panel Out of Aluminum Cans_3

Introduction

The concept of using aluminum cans to create a solar panel is based on the principle of thermal energy conversion. By painting the cans black and arranging them in a specific pattern, they can absorb sunlight and heat up the air inside, which is then circulated back into a room or space. This method is particularly useful for small-scale heating needs, such as warming up a greenhouse or a small office.

Materials Needed

- Aluminum Cans: Collect empty soda, beer, or juice cans. The more cans you have, the larger and more efficient your solar panel will be.

- Wooden Frame: Use 2x4s to construct a frame that will hold the cans in place.

- Plywood or Sheet Metal: For the back of the panel to provide additional support.

- Plexiglas or Polycarbonate: A transparent sheet to cover the front of the panel.

- High-Temperature Silicone Adhesive: To glue the cans together.

- Heat-Resistant Black Paint: To enhance heat absorption.

- Drill and Drill Bits: For making holes in the cans.

- Screws and Nails: For assembling the frame.

- Air Intake and Output Tubes: To circulate air through the panel.

- Fan (Optional): To enhance air circulation.

Step-by-Step Instructions

Step 1: Prepare the Cans

Cut the top off each can using a can opener or a hole saw. Then, cut a star or fin shape into the bottom of each can to enhance airflow. Be cautious when handling sharp edges.

Step 2: Assemble the Frame

Construct a wooden frame using 2x4s. The size will depend on how many cans you have and the space where you plan to install the panel.

Step 3: Glue the Cans Together

Stack the cans on top of each other and glue them together using high-temperature silicone adhesive. Ensure the adhesive is applied to the outside edges to avoid obstructing airflow.

Step 4: Paint the Cans and Frame

Spray the cans and frame with heat-resistant black paint to maximize heat absorption.

Step 5: Attach the Plexiglas Cover

Secure the Plexiglas sheet to the front of the frame using screws or adhesive. This protects the cans from the elements and helps retain heat.

Step 6: Install Air Intake and Output Tubes

Drill holes at the bottom and top of the frame for air intake and output. Connect these to tubes that will circulate air through the panel.

Step 7: Add a Fan (Optional)

If you want to enhance air circulation, attach a fan to either the intake or output tube. This can be powered by a small solar panel for efficiency.

Step 8: Insulate the Back

Use rock wool or Styrofoam to insulate the back of the panel, ensuring that heat is retained and not lost.

A Solar Panel Out of Aluminum Cans_2

Example Projects

Project 1: Seattle Backyard Studio

Peter Rowan built a solar heater using 275 cans, which effectively warmed his backyard studio by several degrees even on cloudy days.

Project 2: Greenhouse Heating

A solar heater made from aluminum cans was used to keep a greenhouse warm during winter, ensuring that cool-weather crops could thrive.

Benefits and Limitations

Benefits

- Cost-Effective: Uses recycled materials and can be built at a low cost.

- Eco-Friendly: Reduces waste and uses solar energy.

- Easy to Build: Requires basic DIY skills.

Limitations

- Limited Heat Output: Suitable for small spaces only.

- No Electricity Generation: Does not produce electricity, only heat.

- Dependent on Sunlight: Efficiency varies with weather conditions.

Conclusion

Building a solar panel out of aluminum cans is a fun and practical DIY project that can provide supplemental heating for small spaces. While it has its limitations, it offers a creative way to reuse materials and harness solar energy.

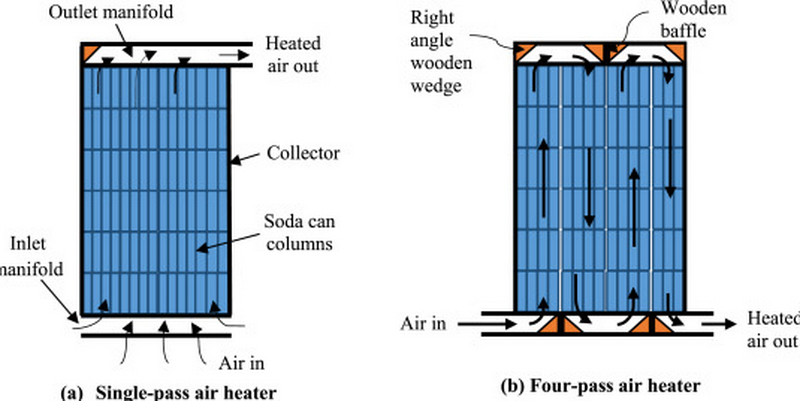

A Solar Panel Out of Aluminum Cans_1

Frequently Asked Questions

1. What Materials Are Needed to Build a Solar Panel Out of Aluminum Cans?

Materials needed include aluminum cans, a wooden frame, plywood or sheet metal, Plexiglas or polycarbonate, high-temperature silicone adhesive, heat-resistant black paint, drill and drill bits, screws and nails, air intake and output tubes, and a fan (optional).

2. How Do Solar Panels Made from Aluminum Cans Work?

These panels work by absorbing sunlight with the black-painted cans, heating the air inside, which is then circulated back into a room or space through air intake and output tubes.

3. What Are the Benefits of Using Aluminum Cans for Solar Heating?

Benefits include cost-effectiveness, eco-friendliness, ease of construction, and the ability to reuse waste materials.

4. What Are the Limitations of Solar Panels Made from Aluminum Cans?

Limitations include limited heat output, inability to generate electricity, and dependence on sunlight for efficiency.

5. Can These Solar Panels Be Used for Large-Scale Heating?

No, these panels are best suited for small-scale heating needs due to their limited heat output. For larger spaces, more extensive and complex solar heating systems are required.
