Building aluminum door panels is a rewarding project that can enhance the aesthetic and functional aspects of both residential and commercial spaces, as well as automotive customization. Aluminum door panels are lightweight, durable, and resistant to corrosion, making them an ideal choice for various applications. This guide will walk you through the process of creating aluminum door panels from scratch, covering planning, materials, tools, and installation.
Before starting, it's crucial to plan your project carefully. Consider the purpose of the door panels—whether they are for a vehicle, a residential entrance, or an interior partition. Measure the space where the panels will be installed to ensure accurate dimensions. Choose a design that suits your needs, such as flat panels or more intricate designs with cutouts for handles or speakers.
- Swing Doors: Suitable for most residential and commercial applications.
- Sliding Doors: Ideal for spaces where swing space is limited.
- Bi-fold Doors: Often used for larger openings, providing a wide entry point.
- French Doors: Popular for balconies and patios, offering a classic aesthetic.
- Aluminum Profiles: Extruded aluminum sections available in various series (e.g., 46, 50, 70) differing in thickness and strength.
- Aluminum Sheets: For automotive panels, a thickness of 1/8" is common for durability without excessive weight.
- Fasteners: Self-tapping screws or rivets for securing panels to frames.
- Welding Equipment (Optional): For added strength, a MIG or TIG welder can be used.
- Aluminum Sheet: Choose a thickness suitable for your application.
- Measuring Tools: Tape measure, square, and caliper.
- Cutting Tools: Angle grinder, metal snips, or jigsaw for complex shapes.
- Finishing Tools: Sandpaper or deburring tool for smoothing edges.
- Protective Gear: Safety glasses, gloves, and dust mask.
1. Template Creation: Use cardboard to create a template of your design. This allows you to visualize how it will fit and make adjustments easily. You can also use CAD software for digital design.

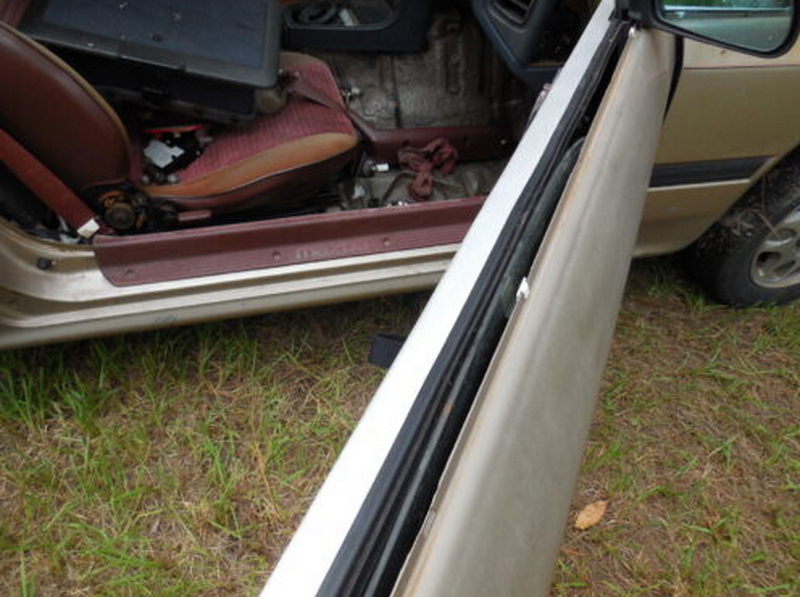

2. Measure Your Door: Use a tape measure to get the exact dimensions of your door frame or vehicle door.
3. Transfer Measurements: Mark these dimensions onto your aluminum sheet using a permanent marker. Ensure you account for any additional features like speaker mounts or handle cutouts.
1. Cutting: Carefully cut along your marked lines using an angle grinder or metal snips. For complex shapes, a jigsaw may be more appropriate.
2. Safety Protocols: Always follow safety guidelines to avoid accidents.
1. Smoothing Edges: Use sandpaper or a deburring tool to smooth out any sharp edges from cutting. This is crucial for safety and aesthetics.
2. Fit Check: Place the cut panel against the door frame to check for fit. Make any necessary adjustments by trimming excess material.
1. Drill Holes for Fasteners: Mark where you will need holes for screws or rivets based on where the panel will attach to the door frame. Use a center punch to create an indentation before drilling.
2. Create Cutouts: If necessary, cut out holes for door handles, window cranks, or speakers using a jigsaw. Take care to measure accurately so that all components align correctly once installed.
1. Position the Panel: Align it with the door frame and ensure all holes are accessible.
2. Secure with Fasteners: Use self-tapping screws or rivets to attach the panel securely to the frame. Ensure that it is flush against the door without any gaps.
- Angle Grinder: Useful for cutting and smoothing aluminum edges.
- Jigsaw: Ideal for complex shapes or curved cuts.
- Drill Press: For precise drilling of screw holes.
- Welding Equipment: If you choose to weld edges for added strength.
- Bead Rolling: Can be used to create decorative edges or strengthen panels.
- Welding: For joining aluminum pieces together, providing a strong and durable bond.
Welding is an advanced technique that can significantly enhance the structural integrity of your aluminum panels. It involves joining two pieces of aluminum together using heat and filler material. MIG and TIG welding are common methods used for aluminum.

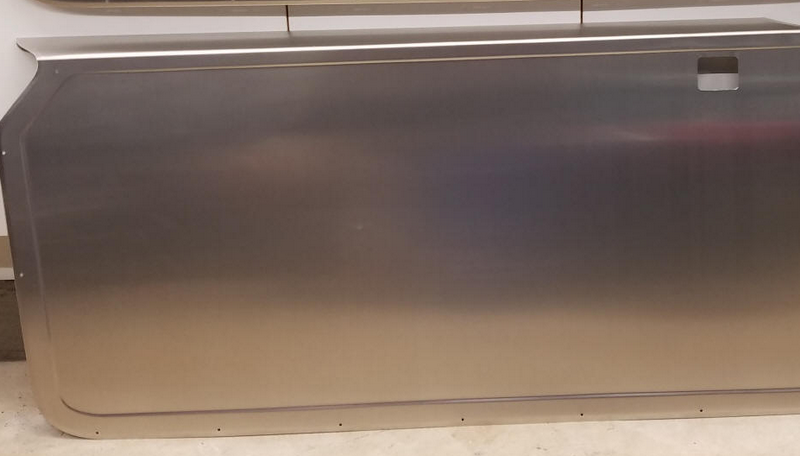

Bead rolling is a technique used to create decorative edges or strengthen panels by forming a bead along the edge. This not only adds aesthetic appeal but also provides additional structural support.
Powder coating is a durable finish that can protect your aluminum panels from corrosion and enhance their appearance. It involves applying a powder coat to the metal and then baking it in an oven to create a hard, chip-resistant finish.
Ensure that you use fasteners suitable for aluminum to avoid corrosion. Stainless steel or aluminum fasteners are ideal choices.
Consider applying a protective coating or paint to enhance durability and appearance. Always use a primer for better adhesion if painting directly onto bare aluminum.
Double-check that your panels fit perfectly in the door frame or vehicle door. This is crucial for both functionality and aesthetics.
Always wear protective gear when working with power tools and sharp materials. Safety glasses, gloves, and a dust mask are essential.
1. Ensure Proper Fit: Double-check that your panels fit perfectly in the door frame or vehicle door.
2. Use Correct Fasteners: Choose fasteners that are suitable for aluminum to avoid corrosion.
3. Apply Protective Coatings: Consider applying a protective coating or paint to enhance durability and appearance.
Building aluminum door panels is a versatile project that can be tailored to various applications, from automotive customization to residential and commercial door installations. With careful planning, precise measurements, and attention to detail, you can create panels that not only look great but also stand up to wear and tear over time.
You will need measuring tools (tape measure, square), cutting tools (angle grinder or metal snips), fasteners (self-tapping screws or rivets), finishing tools (sandpaper), and potentially welding equipment if you choose that method of assembly.
A thickness of 1/8" is commonly used for durability without excessive weight; however, depending on your application, you might choose thicker sheets if additional strength is required.
Yes! You can use automotive paint or powder coating for a durable finish that enhances appearance; remember to use primer for better adhesion if painting directly onto bare aluminum.
Welding equipment is optional but recommended if you want to add strength to your panels by welding edges together.
Ensure accurate measurements and perform multiple fit checks during the fabrication process. Make adjustments as necessary to achieve a perfect fit.
