Aluminum honeycomb panels have gained immense popularity in various industries due to their lightweight, high strength, and excellent thermal insulation properties. These panels are widely used in aerospace, automotive, construction, and interior design applications. However, cutting aluminum honeycomb panels requires specific techniques and tools to ensure clean edges and maintain the integrity of the material. This guide will provide you with a comprehensive understanding of how to cut aluminum honeycomb panels effectively, covering everything from tools and techniques to safety considerations.

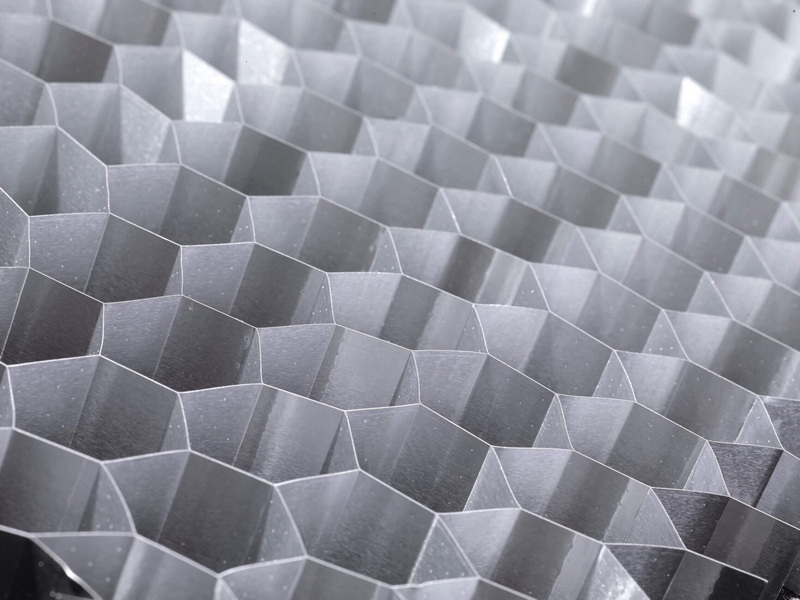

Aluminum honeycomb panels consist of a core made of a honeycomb structure sandwiched between two thin layers of aluminum. This design provides exceptional strength-to-weight ratios, making them ideal for applications where weight savings are crucial. The honeycomb structure also offers excellent rigidity and resistance to bending, which is why these panels are commonly used in aircraft interiors, automotive parts, and architectural facades.
The versatility of aluminum honeycomb panels extends to their applications in various fields. In the aerospace industry, they are used for aircraft flooring, walls, and ceilings. In the automotive sector, they serve as lightweight components that enhance fuel efficiency. Additionally, in construction, they are utilized for wall panels, ceilings, and partitions due to their aesthetic appeal and durability.
When it comes to cutting aluminum honeycomb panels, the right tools and equipment are essential for achieving precise cuts. Here are some of the most commonly used tools:
- CNC Machines: Computer Numerical Control (CNC) machines are highly efficient for cutting aluminum honeycomb panels. They provide precise cuts and can handle complex shapes and designs. CNC machines are ideal for large-scale production and ensure consistency in the cutting process.
- Band Saws: Band saws are versatile tools that can be used for cutting aluminum honeycomb panels. They are suitable for both straight and curved cuts. When using a band saw, it is crucial to select the right blade designed for cutting aluminum to prevent damage to the material.
- Plasma Cutters: Plasma cutters are effective for cutting thicker aluminum honeycomb panels. They use a high-velocity jet of ionized gas to melt the metal, allowing for clean and precise cuts. Plasma cutting is particularly useful for intricate designs and shapes.
- Hand Tools: For DIY enthusiasts or smaller projects, hand tools such as jigsaws or circular saws can be used to cut aluminum honeycomb panels. However, it is essential to use blades specifically designed for cutting metal to achieve the best results.
Cutting aluminum honeycomb panels requires specific techniques to ensure clean edges and prevent damage. Here's a step-by-step guide on how to cut aluminum honeycomb panels using different methods:
1. Preparation: Start by measuring and marking the desired cut on the aluminum honeycomb panel. Use a straight edge to ensure accuracy.
2. Select the Right Blade: Choose a blade designed for cutting aluminum. A fine-toothed blade will help achieve a smoother cut.
3. Set Up the Band Saw: Adjust the band saw to the appropriate speed for cutting aluminum. A slower speed is generally recommended to prevent overheating.
4. Cutting Process: Align the marked line with the blade and slowly feed the panel into the saw. Maintain a steady pace to ensure a clean cut.
5. Finishing Touches: After cutting, use a deburring tool to smooth out any sharp edges.

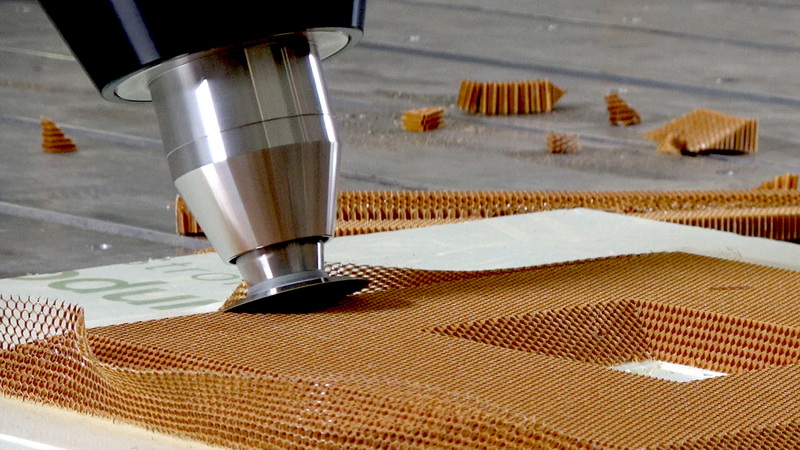

1. Design the Cut: Use CAD software to create a digital design of the cut you want to make on the aluminum honeycomb panel.
2. Set Up the CNC Machine: Load the design into the CNC machine and secure the panel in place.
3. Select the Right Tooling: Choose the appropriate cutting tool based on the thickness and type of aluminum honeycomb panel.
4. Run the Machine: Start the CNC machine and monitor the cutting process. CNC machines are programmed to make precise cuts, so ensure that the settings are correct.
5. Post-Cutting Finishing: Once the cutting is complete, inspect the edges and use a deburring tool if necessary.
1. Mark the Cut: Measure and mark the cut on the aluminum honeycomb panel using a marker.
2. Choose the Right Tool: For straight cuts, a circular saw with a metal cutting blade is ideal. For curves, a jigsaw with a fine-toothed blade works well.
3. Cutting Technique: Align the blade with the marked line and cut slowly to maintain control. Ensure that the panel is securely held in place to prevent movement during cutting.
4. Finishing: After cutting, smooth out any rough edges with sandpaper or a deburring tool.
Safety is paramount when cutting aluminum honeycomb panels. Here are some essential safety tips to keep in mind:
- Wear Protective Gear: Always wear safety goggles, gloves, and a dust mask to protect yourself from metal shavings and debris.
- Secure the Work Area: Ensure that your workspace is clean and free of clutter. Secure the aluminum honeycomb panel properly to prevent it from moving during cutting.
- Use the Right Tools: Always use tools that are designed for cutting aluminum. Using the wrong tools can lead to accidents and damage to the material.
- Follow Manufacturer Instructions: Adhere to the manufacturer's guidelines for the tools and equipment you are using. This will help prevent accidents and ensure optimal performance.
- Be Mindful of Sharp Edges: After cutting, be cautious of sharp edges on the aluminum honeycomb panels. Use a deburring tool to smooth out any sharp points.
Cutting aluminum honeycomb panels requires the right tools, techniques, and safety precautions to achieve clean and precise results. Whether you are using a CNC machine for large-scale production or hand tools for DIY projects, understanding the properties of aluminum honeycomb and the best cutting methods will ensure success. By following the guidelines outlined in this comprehensive guide, you can confidently tackle your aluminum honeycomb cutting projects.
Aluminum honeycomb panels offer several advantages, including lightweight construction, high strength, excellent thermal insulation, and resistance to corrosion. These properties make them ideal for various applications in aerospace, automotive, and construction industries.
While it is possible to cut aluminum honeycomb panels with a regular saw, it is recommended to use tools specifically designed for cutting metal, such as band saws or jigsaws with fine-toothed blades. This will ensure cleaner cuts and reduce the risk of damaging the material.
To maintain your cutting tools, regularly clean them to remove any metal shavings or debris. Ensure that blades are sharp and replace them as needed. Proper maintenance will prolong the life of your tools and improve cutting performance.
A jigsaw can typically cut aluminum honeycomb panels up to 1/2 inch thick, depending on the blade used. For thicker panels, it is advisable to use a band saw or CNC machine for better results.
When using a CNC machine, ensure that you are familiar with its operation and safety features. Always wear protective gear, keep hands and loose clothing away from moving parts, and never leave the machine unattended while it is in operation.
