Aluminum sheet metal is a versatile material used in various industries, from construction to aerospace. Knowing how to cut it properly is essential for achieving precise results and maintaining safety. This comprehensive guide will explore the tools, techniques, and tips for cutting aluminum sheet metal effectively.
Aluminum sheet metal is known for its lightweight properties, corrosion resistance, and malleability. These characteristics make it an ideal material for many applications, but they also present unique challenges when it comes to cutting.
- Lightweight
- Corrosion-resistant
- Malleable
- Good thermal and electrical conductivity
- Relatively soft compared to other metals
Aluminum sheet metal is available in various thicknesses, typically measured in gauges. The most common thicknesses range from 0.016 inches (30 gauge) to 0.125 inches (8 gauge).
Choosing the right tool is crucial for achieving clean and accurate cuts. Here are some of the most effective tools for cutting aluminum sheet metal:
1. Tin Snips
Ideal for thin sheets and curved cuts.
2. Aviation Snips
Designed for straight and curved cuts in thicker sheets.
3. Hacksaw
Suitable for straight cuts in thicker sheets.
1. Circular Saw
Excellent for long, straight cuts.
2. Jigsaw
Ideal for curved cuts and intricate shapes.
3. Angle Grinder
Good for rough cuts and edge finishing.
4. Reciprocating Saw
Useful for demolition work and cutting large sheets.
1. Sheet Metal Shear
Provides clean, straight cuts in thin to medium-thickness sheets.
2. Plasma Cutter
Offers precise cuts in thicker sheets.
3. Water Jet Cutter
Provides extremely precise cuts without heat-affected zones.
Now that we've covered the tools, let's explore the techniques for cutting aluminum sheet metal effectively.
Before cutting, it's essential to prepare your workspace and materials:

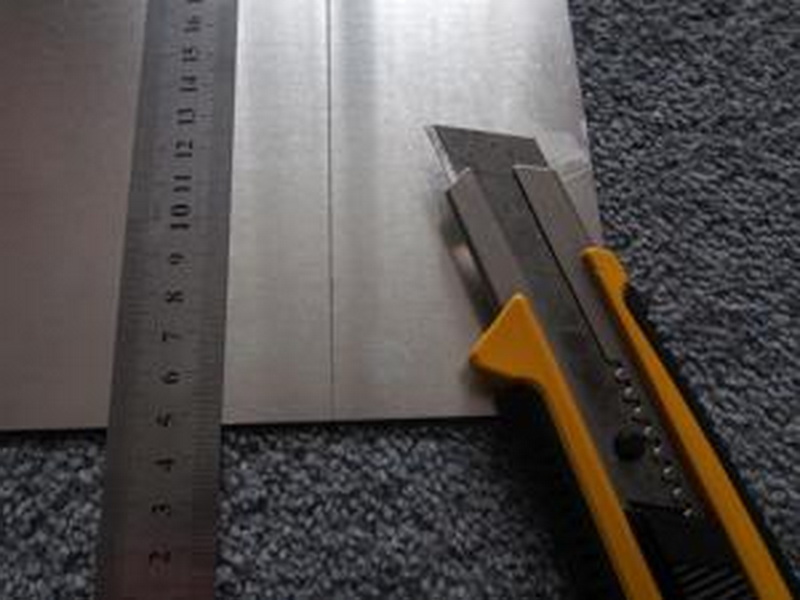

1. Measure and mark your cutting lines clearly.
2. Secure the sheet metal to prevent movement during cutting.
3. Wear appropriate safety gear, including safety glasses, gloves, and hearing protection.
1. Choose the appropriate snips for your cut direction (straight, left, or right).
2. Start at the edge of the sheet and work your way inward.
3. Keep the blades perpendicular to the sheet for clean cuts.
1. Use a fine-toothed blade (24-32 teeth per inch).
2. Apply steady pressure and use long, smooth strokes.
3. Lubricate the blade to reduce friction and heat.
1. Install a non-ferrous metal cutting blade.
2. Set the blade depth to just below the sheet thickness.
3. Use a straight edge as a guide for precise cuts.
4. Cut at a moderate speed to prevent overheating.
1. Use a metal-cutting blade with fine teeth.
2. Set the orbital action to zero for cleaner cuts.
3. Apply steady pressure and move the saw slowly along the cutting line.
4. Use a cooling lubricant to prevent overheating.
1. Set up the plasma cutter according to the manufacturer's instructions.
2. Adjust the amperage based on the sheet thickness.
3. Maintain a consistent distance between the torch and the sheet.
4. Move at a steady pace to ensure a clean cut.
1. Create a digital design of your cut pattern.
2. Secure the sheet metal on the cutting bed.
3. Allow the machine to complete the cutting process.
4. Remove the cut pieces carefully.
To ensure the best results when cutting aluminum sheet metal, consider these tips:
1. Use the Right Blade: Always use blades designed for cutting non-ferrous metals.
2. Maintain Blade Sharpness: Replace or sharpen blades regularly for clean cuts.
3. Control Speed: Cut at a moderate speed to prevent overheating and melting.
4. Apply Lubricant: Use cutting oil or wax to reduce friction and heat buildup.
5. Support the Sheet: Provide adequate support to prevent bending or warping during cutting.
6. Practice on Scrap: If you're new to cutting aluminum, practice on scrap pieces first.
7. Clean Up Edges: Use a file or sandpaper to smooth any rough edges after cutting.
Safety should always be a top priority when cutting aluminum sheet metal. Here are some important safety measures to keep in mind:
1. Wear Protective Gear: Always use safety glasses, gloves, and hearing protection.
2. Secure Your Workpiece: Ensure the sheet metal is firmly clamped or secured before cutting.
3. Maintain a Clean Workspace: Keep your work area free of debris and obstacles.
4. Be Aware of Sharp Edges: Freshly cut aluminum can have very sharp edges. Handle with care.
5. Ventilation: Ensure proper ventilation when using power tools to avoid inhaling metal particles.
6. Fire Safety: Have a fire extinguisher nearby, especially when using tools that generate sparks.
For those looking to take their aluminum sheet metal cutting skills to the next level, consider these advanced techniques:

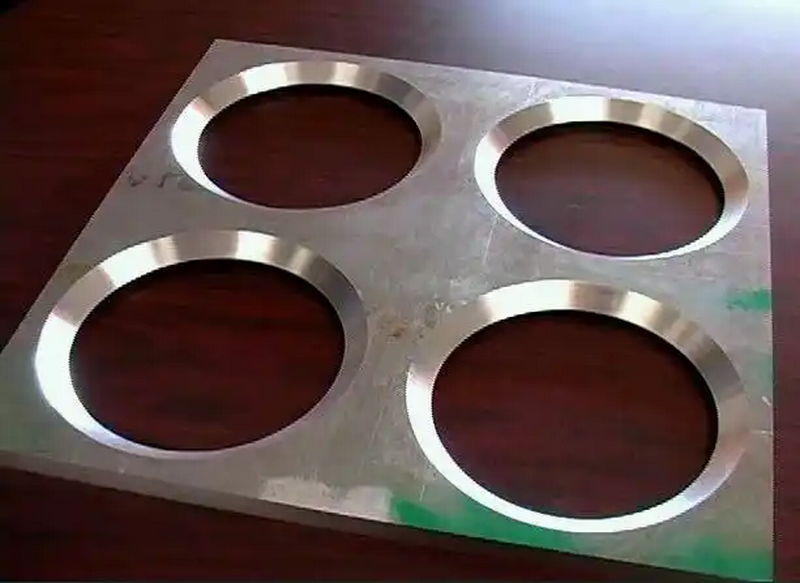

Computer Numerical Control (CNC) routing offers precise and repeatable cuts for complex designs.
CNC Router
Laser cutting provides extremely accurate cuts and is ideal for intricate designs in thin sheets.
Waterjet cutting uses high-pressure water mixed with abrasive particles to cut through aluminum without heat-affected zones.
When cutting aluminum sheet metal, it's important to consider the environmental impact:
1. Recycling: Aluminum is highly recyclable. Collect and recycle scrap pieces.
2. Dust Collection: Use dust collection systems to minimize airborne particles.
3. Energy Efficiency: Choose energy-efficient tools and methods when possible.
Cutting aluminum sheet metal requires the right tools, techniques, and safety precautions. Whether you're using hand tools for small projects or advanced machinery for industrial applications, understanding the properties of aluminum and the appropriate cutting methods is crucial for achieving clean, precise cuts.
By following the guidelines outlined in this article, you'll be well-equipped to tackle a wide range of aluminum sheet metal cutting tasks. Remember to prioritize safety, practice on scrap material, and choose the most suitable method for your specific project requirements.
As you gain experience, you'll develop a better feel for working with aluminum sheet metal, allowing you to create more complex and precise cuts. Whether you're a DIY enthusiast or a professional metalworker, mastering the art of cutting aluminum sheet metal will open up a world of possibilities for your projects.
For thin aluminum sheet metal (typically less than 1/16 inch thick), tin snips or aviation snips are often the best tools. They provide clean cuts without the need for power tools and are easy to control for precise cutting.
No, it's not recommended to use a regular wood-cutting blade for aluminum sheet metal. Wood-cutting blades have larger teeth that can catch and tear the metal, leading to rough cuts and potential safety hazards. Always use blades specifically designed for cutting non-ferrous metals like aluminum.
To prevent warping, ensure the sheet is properly supported and clamped securely. Use a sturdy work surface and clamp the sheet as close to the cutting line as possible. For larger sheets, consider using multiple clamps or a dedicated cutting table.
While not always necessary, using a cutting fluid or lubricant can significantly improve the cutting process. It helps reduce friction and heat buildup, resulting in cleaner cuts and extended tool life. For power tools, a wax stick lubricant is often convenient and effective.
A jigsaw can typically cut aluminum sheets up to 1/4 inch thick, depending on the blade and the saw's power. For best results, use a metal-cutting blade with fine teeth and adjust the saw's speed to prevent overheating. When cutting thicker sheets, consider using a circular saw or specialized metal-cutting tools for more efficient and precise cuts.
