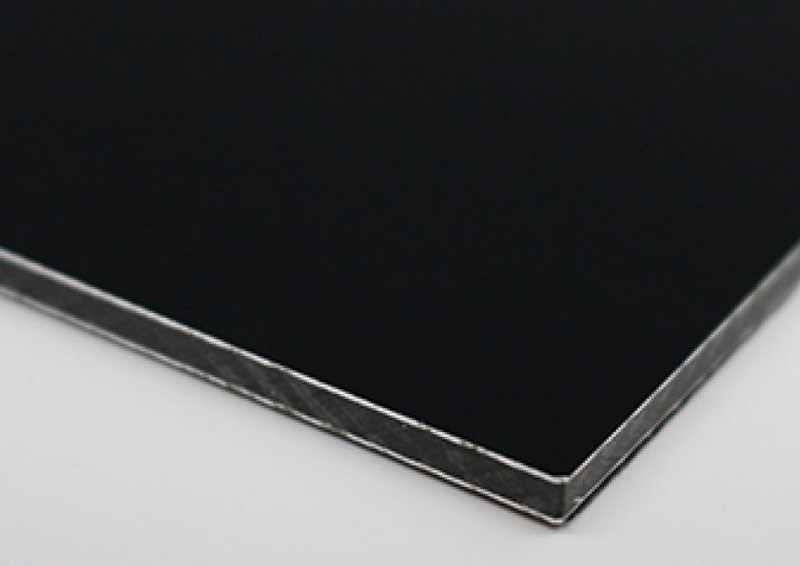

Aluminum composite panels (ACPs) are a popular choice in modern architecture and construction due to their durability, lightweight nature, and aesthetic appeal. These panels consist of two thin layers of aluminum enclosing a non-aluminum core, making them ideal for both exterior and interior applications. This comprehensive guide will walk you through the process of installing aluminum composite panels, ensuring a successful and professional finish.
Before diving into the installation process, it's essential to understand what aluminum composite panels are and their benefits:
- Durability: ACPs are resistant to weathering, corrosion, and fire.
- Lightweight: Their lightweight nature makes them easy to handle and install.
- Aesthetic Flexibility: Available in various colors and finishes, ACPs can enhance the visual appeal of any building.
- Cost-effective: Compared to solid metal alternatives, ACPs provide a more economical solution without compromising quality.
Proper preparation is crucial for a successful installation. Here's what you need to do:
1. Site Assessment: Ensure the installation area is clean, dry, and free from debris. Check for any irregularities or defects in the substrate that could affect the panel's appearance.
2. Material Selection: Choose high-quality aluminum composite panels suitable for your project. Ensure you have all necessary tools and materials ready:
- Power drill
- Saw (for cutting panels)
- Level
- Caulking gun
- Safety equipment (gloves, goggles)
3. Measuring and Cutting Panels: Measure the area where the panels will be installed accurately. Use a precision saw to cut the panels according to your measurements. Remember to account for expansion gaps.
There are several methods for installing aluminum composite panels, each suited for different applications:
This method involves applying sealant between the panel and substrate to create a watertight seal.
- Apply sealant on the back of the panel.
- Press the panel into place and wipe away excess sealant.
Using gaskets or compression seals, this method provides a reliable watertight installation.
- Place the gasket between the panel and substrate.
- Secure the panel using mechanical fasteners.
This is one of the most common methods where screws or rivets attach the panels to a frame.
- Pre-drill holes in the panels.
- Use stainless steel screws or rivets for durability.
- Ensure screws are evenly spaced and installed at appropriate distances from edges.
For a seamless look, adhesive fixing involves bonding panels directly to the frame.
- Apply high-strength adhesive evenly on the back of each panel.
- Align and press the panel into place before the adhesive sets.
1. Prepare the Substrate: Ensure that your wall or surface is level and structurally sound. If necessary, install a secondary framing system for better support.
2. Mark Panel Positions: Use chalk lines or markers to outline where each panel will be placed on the wall. This will help maintain alignment during installation.
3. Install Framing System: If using a framing system, install vertical framing members according to your panel dimensions. Ensure they are plumb and securely anchored.
4. Cut Panels to Size: Based on your measurements, cut each aluminum composite panel carefully using a saw designed for metal cutting.
5. Attach Panels:
- For mechanical fixing: Align each panel with pre-drilled holes over the framing members and secure with screws or rivets.
- For adhesive fixing: Apply adhesive on the back of each panel before pressing it against the wall.
6. Seal Edges: After all panels are installed, apply weatherproof silicone around edges and seams to prevent water infiltration.
7. Final Touches: Clean any excess adhesive or sealant from the surface of the panels using appropriate solvents.
8. Inspection: Once installation is complete, inspect all seams and edges for proper sealing and alignment.
While installing aluminum composite panels, safety should always be a priority:
- Wear safety goggles and gloves while handling sharp tools or materials.
- Ensure proper ventilation when using adhesives or sealants.
- Follow manufacturer guidelines regarding temperature and humidity during installation to avoid issues with adhesion.
Installing aluminum composite panels can be a rewarding project that enhances both aesthetics and functionality in construction. By following this guide carefully—from preparation through installation—you can achieve professional results that stand up to weathering while providing an attractive facade for any building.
Aluminum composite panels are commonly used for cladding buildings, signage, interior decoration, partition walls, roofing systems, and more due to their versatility and durability.
Consider factors such as thickness, core material (PE or FR), color options, fire resistance ratings, and manufacturer recommendations based on your specific application needs.
Yes! With proper tools, materials, safety precautions, and following this guide closely, DIY enthusiasts can successfully install aluminum composite panels.
Regular cleaning with mild soap and water is recommended. Avoid abrasive cleaners that could scratch the surface. Inspect periodically for any damage or wear around seams or edges.
Many manufacturers offer eco-friendly options made from recycled materials or those that contribute to energy efficiency in buildings through insulation properties.
By understanding how to install aluminum composite panels effectively, you can ensure a durable finish that enhances your building's appearance while providing long-lasting protection against environmental factors.
