Aluminum composite panels (ACP) have become a popular choice in the construction industry due to their aesthetic appeal, durability, and versatility. This guide will provide a comprehensive overview of how to install aluminum composite panels in India, detailing each step of the process to ensure a successful installation.

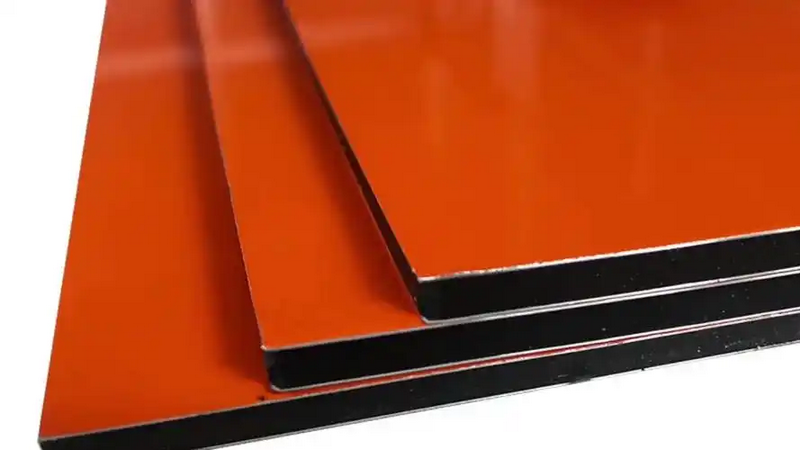

Aluminum composite panels consist of two thin layers of aluminum enclosing a non-aluminum core. This structure provides strength and durability while remaining lightweight. ACPs are widely used for exterior cladding, interior applications, signage, and more due to their resistance to weathering, corrosion, and fire.
- Durability: ACPs are resistant to harsh weather conditions, making them suitable for various climates in India.
- Lightweight: The lightweight nature of ACPs simplifies transportation and installation.
- Aesthetic Versatility: Available in various colors and finishes, ACPs can enhance the visual appeal of any building.
- Cost-Effective: Compared to other materials like stone or solid metal, ACPs offer a more economical solution for cladding.
- Easy Maintenance: Cleaning ACPs is straightforward; they can be wiped down with mild detergents without requiring special care.
- Environmental Impact: Many manufacturers produce ACPs using recyclable materials, making them a more environmentally friendly option compared to traditional materials.
Before starting the installation process, gather the following tools and materials:
- Aluminum composite panels
- Measuring tape
- Level
- Electric saw or panel cutter
- Drill machine
- Screws and bolts
- Adhesives
- Brackets or clamps
- Safety equipment (gloves, goggles, helmets)
The first step in installing aluminum composite panels is to prepare the site properly.
Ensure that the surface where the panels will be installed is clean, dry, and free from debris. Conduct a visual inspection for any irregularities such as cracks or unevenness. Address any issues before proceeding.
Depending on the substrate type (concrete, masonry, or metal), prepare it accordingly:
- For concrete or masonry substrates: Clean the surface thoroughly and allow it to dry completely. If there are any existing coatings or paints, remove them to ensure proper adhesion.
- For metal substrates: Remove any rust or corrosion and apply a suitable primer. This step is crucial as it enhances the bond between the panel and substrate.
Installing a sturdy frame that will support the ACPs is essential. The frame must be securely attached to the wall structure. Use metal studs or aluminum extrusions spaced according to the panel dimensions.
When designing your frame:
- Ensure that it can support the weight of the aluminum composite panels.
- Consider wind load factors specific to your location in India; areas prone to high winds may require additional support.
Using a measuring tape, take precise measurements of the area where the ACPs will be installed. Mark these measurements clearly on both the wall and the panels to ensure accurate cutting and fitting.
1. Always measure from multiple points; do not rely on a single measurement.
2. Use a level to ensure that your markings are straight and true.
3. Double-check your measurements before cutting to avoid costly mistakes.
Cut the aluminum composite panels according to your measurements using an electric saw or panel cutter. Ensure you wear appropriate safety gear during this process. Follow these steps:
1. Measure twice before cutting.
2. Use a straight edge as a guide for clean cuts.
3. Handle the panels carefully to avoid damage; sharp edges can cause injury.
4. If possible, perform cuts outdoors or in a well-ventilated area to minimize exposure to dust particles generated during cutting.
There are several methods for attaching aluminum composite panels:
1. Align the panel with the frame.
2. Drill holes through the panel into the frame.
3. Insert screws and tighten them securely.
This method provides strong support but requires careful drilling to avoid damaging the panels.
1. Apply high-strength adhesive tape on the back of the panel.
2. Press the panel firmly against the surface.
3. Use clamps or brackets to hold it in place until the adhesive sets.
Adhesive fixing is often quicker but requires careful application to ensure even coverage and avoid gaps that could lead to moisture ingress.
To ensure water resistance, apply sealant around all joints between panels. This step is crucial for preventing moisture ingress which can lead to damage over time.
Choose sealants that are compatible with aluminum surfaces:
- Silicone Sealants: Flexible and waterproof; ideal for exterior applications.
- Polyurethane Sealants: Provide strong adhesion and are suitable for high-stress areas.
Once all panels are installed:
1. Inspect for any gaps or misalignments.
2. Clean any excess adhesive or sealant from visible areas.
3. Peel off any protective film from the panels.
4. Consider applying a protective coating if your installation is in an area with extreme weather conditions.
While installing aluminum composite panels can be straightforward, several challenges may arise:
- Misalignment: Ensure all panels are aligned correctly during installation; misalignment can lead to aesthetic issues later on.
- Weather Conditions: Avoid installing during extreme weather conditions (heavy rain or high winds) as they can affect adhesion and alignment.
- Material Handling: ACPs can be easily scratched; handle them with care throughout transportation and installation processes.
To ensure longevity, regular maintenance is essential:
1. Cleaning: Use mild detergents mixed with water for cleaning; avoid harsh chemicals that could damage finishes.
2. Inspection: Regularly inspect joints and seals for integrity; replace sealants as necessary.
3. Repairs: Address scratches or dents immediately using touch-up paint designed for aluminum surfaces.
4. Environmental Considerations: Be mindful of pollution levels in urban areas; frequent cleaning may be necessary in heavily polluted regions.
Installing aluminum composite panels in India requires careful planning and execution but can yield impressive results when done correctly. By following this step-by-step guide, you can ensure that your installation is successful and durable while enhancing both functionality and aesthetics in your projects.
Aluminum composite panels are sandwich panels made from two layers of aluminum enclosing a non-aluminum core, offering durability and aesthetic versatility for various applications.
The benefits include durability against weathering, lightweight properties for easy handling, aesthetic versatility with various colors and finishes, cost-effectiveness compared to other materials, easy maintenance requirements, and lower environmental impact due to recyclable materials used in manufacturing.
Installation involves site preparation, frame installation, accurate measurements, cutting panels, attaching them using mechanical or adhesive methods, sealing joints properly, and applying finishing touches for an aesthetically pleasing result.
Yes, ACPs are suitable for both exterior cladding and interior applications such as partitions and decorative walls due to their lightweight nature and aesthetic appeal.
Regular cleaning with mild detergents is recommended to maintain their appearance while inspecting joints periodically ensures seal integrity; addressing any issues promptly prevents moisture ingress which could lead to structural damage over time.
By following this comprehensive guide on installing aluminum composite panels in India, you can achieve professional results that enhance both functionality and aesthetics in your projects while ensuring long-term durability through proper maintenance practices.
