In the aerospace industry, weight reduction is a critical factor that directly influences the performance, fuel efficiency, and overall operational costs of aircraft. One of the most effective materials used to achieve this goal is aluminum honeycomb panels. These panels are renowned for their lightweight yet robust structure, making them an ideal choice for various applications in aircraft design. This article explores the numerous ways aluminum honeycomb panels contribute to weight reduction in aircraft, their structural advantages, and their impact on the aviation industry.

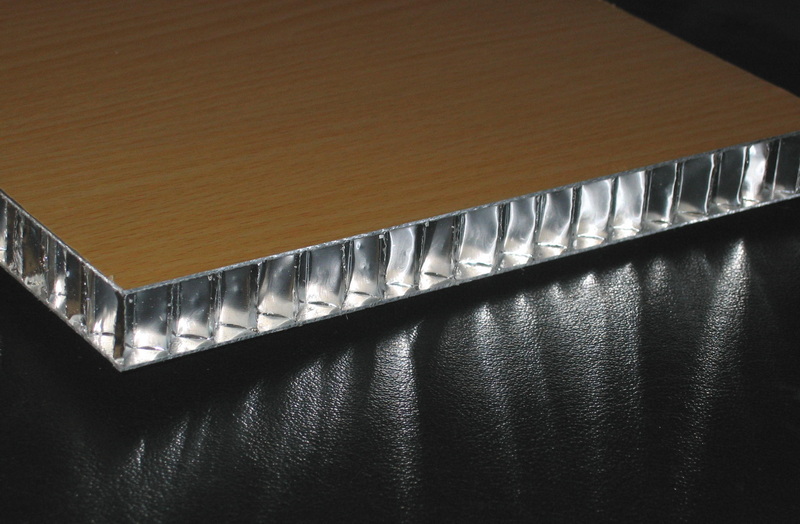

Aluminum honeycomb panels consist of two thin layers of aluminum sheets with a core made of a honeycomb structure. This design provides exceptional strength-to-weight ratios, making them significantly lighter than solid aluminum sheets or other materials. The honeycomb core acts as a lightweight filler, providing rigidity and stability while minimizing weight.
1. Lightweight: The primary advantage of aluminum honeycomb panels is their lightweight nature. The honeycomb structure allows for a significant reduction in weight without compromising strength.
2. High Strength: Despite their lightweight design, aluminum honeycomb panels exhibit remarkable strength. The honeycomb core distributes loads evenly, enhancing the panel's structural integrity.
3. Durability: Aluminum is resistant to corrosion and fatigue, making honeycomb panels suitable for the demanding conditions of aviation.
4. Thermal Insulation: The air-filled cells in the honeycomb core provide excellent thermal insulation, contributing to energy efficiency in aircraft.
5. Sound Dampening: The structure of aluminum honeycomb panels also helps in reducing noise, enhancing passenger comfort.
Aluminum honeycomb panels are utilized in various components of aircraft, including:

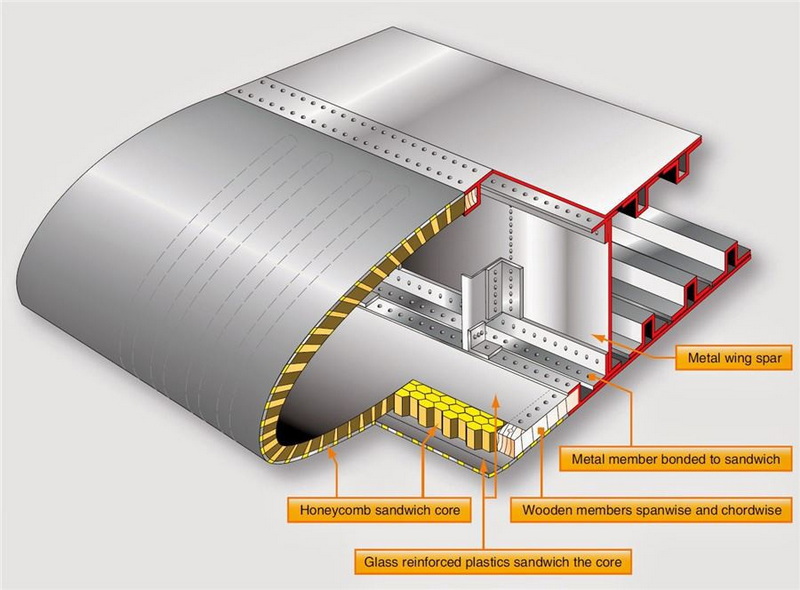

- Wings: The wings of an aircraft are critical for lift and stability. Honeycomb panels are used in wing structures to reduce weight while maintaining strength.

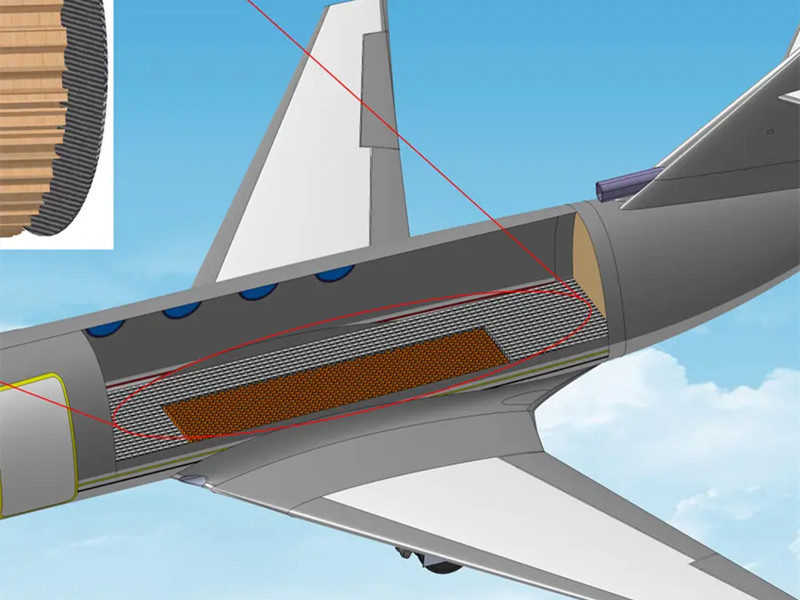

- Fuselage: The fuselage, or body of the aircraft, benefits from the lightweight properties of honeycomb panels, allowing for a more efficient design.
- Interior Components: Honeycomb panels are also used in cabin interiors, such as overhead bins and partition walls, contributing to overall weight reduction.
- Control Surfaces: Elevators, ailerons, and rudders can be constructed using aluminum honeycomb panels to enhance performance without adding unnecessary weight.
Aluminum honeycomb panels maximize material efficiency by using less material to achieve the same strength as traditional solid materials. The honeycomb structure allows for a significant reduction in weight while maintaining the necessary structural integrity. This efficiency is particularly important in aviation, where every ounce counts.
The design of aluminum honeycomb panels enables effective load distribution. When forces are applied to the panel, the honeycomb core spreads the load across a larger area, reducing stress on any single point. This characteristic allows for thinner panels without sacrificing strength, further contributing to weight reduction.
Due to their high strength-to-weight ratio, aluminum honeycomb panels can be manufactured with reduced thickness compared to solid materials. This reduction in thickness directly correlates to weight savings, making them an ideal choice for aircraft components.
Aluminum honeycomb panels can be easily integrated with other lightweight materials, such as composites. This synergy allows for the creation of hybrid structures that optimize weight reduction while enhancing performance. For instance, combining honeycomb panels with carbon fiber can lead to even lighter and stronger components.
The weight reduction achieved through the use of aluminum honeycomb panels has a direct impact on fuel efficiency. Lighter aircraft require less thrust to achieve and maintain flight, leading to lower fuel consumption. This reduction in fuel usage not only decreases operational costs but also contributes to a smaller carbon footprint, aligning with the aviation industry's goals for sustainability.
Several aircraft manufacturers have successfully implemented aluminum honeycomb panels in their designs, resulting in significant weight savings and improved fuel efficiency. For instance, the Boeing 787 Dreamliner utilizes honeycomb technology extensively, showcasing the benefits of this innovative material. The Dreamliner is known for its fuel efficiency, which is partly attributed to the extensive use of lightweight materials, including aluminum honeycomb panels.
The aerospace industry is continuously evolving, and the future of aluminum honeycomb panels looks promising. Ongoing research and development aim to enhance the properties of these panels further, exploring new alloys and manufacturing techniques. Innovations such as 3D printing and advanced composite materials may lead to even lighter and stronger honeycomb structures.
3D printing technology is revolutionizing the way components are manufactured in the aerospace sector. By utilizing additive manufacturing techniques, engineers can create complex honeycomb structures that are tailored to specific load requirements. This customization allows for even greater weight savings and performance enhancements.
Another area of innovation involves the development of advanced coatings for aluminum honeycomb panels. These coatings can enhance corrosion resistance, improve thermal performance, and even provide additional weight savings. As research continues, we can expect to see more sophisticated coatings that further extend the lifespan and performance of honeycomb panels in aircraft.
Aluminum honeycomb panels play a crucial role in the quest for weight reduction in aircraft. Their lightweight, durable, and efficient design allows for significant savings in weight without compromising performance. As the aviation industry continues to prioritize fuel efficiency and sustainability, the use of aluminum honeycomb panels will likely expand, paving the way for more innovative aircraft designs.
Aluminum honeycomb panels are made of two thin layers of aluminum sheets with a honeycomb core structure in between.
They reduce weight by maximizing material efficiency, distributing loads effectively, and allowing for thinner designs without sacrificing strength.
Benefits include lightweight construction, high strength, durability, thermal insulation, and sound dampening.
They are used in wings, fuselage, interior components, and control surfaces.
By reducing the overall weight of the aircraft, they require less thrust to maintain flight, leading to lower fuel consumption and operational costs.
