Aluminum honeycomb sandwich panels have gained significant popularity in various industries due to their unique strength characteristics, lightweight nature, and versatility. However, like any material, they come with limitations that must be understood for optimal application. This article explores the limitations of aluminum honeycomb sandwich panels regarding strength, delving into their structural properties, potential failure modes, and the contexts in which they may not perform as expected.

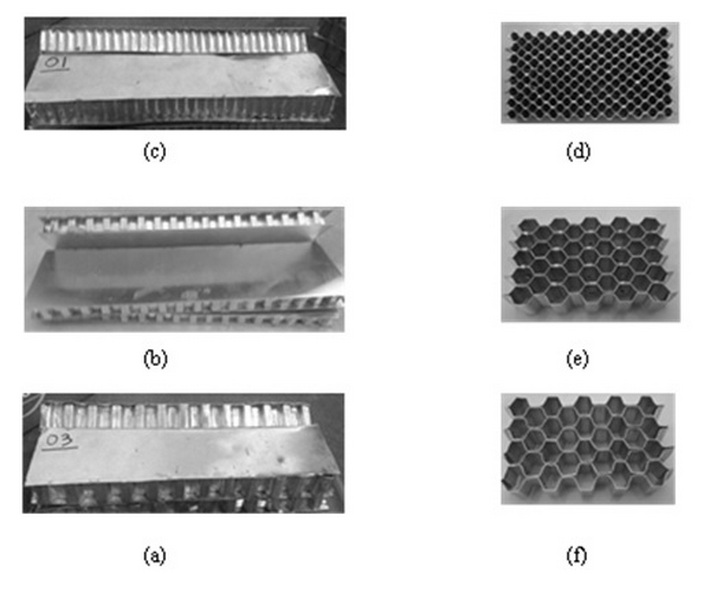

Aluminum honeycomb sandwich panels consist of two thin layers of aluminum (the skins) enclosing a core made of a honeycomb structure. This design allows for high strength-to-weight ratios, making them ideal for applications in aerospace, automotive, marine, and architectural sectors. The strength characteristics of aluminum honeycomb sandwich panels are influenced by several factors, including material properties, manufacturing processes, and environmental conditions.
Before diving into their limitations, it is essential to understand the strengths of these panels:
- High Strength-to-Weight Ratio: The honeycomb core provides excellent rigidity while keeping weight low.
- Good Compressive Strength: These panels can withstand significant compressive loads without buckling.
- Impact Resistance: The structure absorbs energy effectively during impacts.
- Thermal Insulation: The core structure offers good thermal insulation properties.
Despite these strengths, there are inherent limitations that users must consider.
One of the primary limitations of aluminum honeycomb sandwich panels is their bending and shear strength. While they excel under compressive loads, they can be vulnerable to bending and shear forces.
- Bending Stress: When subjected to bending moments, the outer skins can experience tension or compression that may exceed their yield strength.
- Shear Failure: The adhesive bond between the skins and the honeycomb core can fail under shear stress, leading to delamination.
Aluminum honeycomb sandwich panels have temperature sensitivity that can affect their strength characteristics:
- Thermal Expansion: Different materials expand at different rates; thus, temperature fluctuations can lead to stress concentrations at the interfaces between the aluminum skins and the core.
- Degradation at High Temperatures: Prolonged exposure to high temperatures can weaken adhesives used in the panels, compromising structural integrity.
While aluminum is inherently resistant to corrosion, moisture can still pose a threat to aluminum honeycomb sandwich panels:
- Core Material Vulnerability: If the core material is not adequately sealed or treated, it may absorb moisture over time, leading to reduced strength and potential mold growth.
- Delamination Risks: Moisture intrusion can weaken adhesive bonds between layers, resulting in delamination under load.
The load-bearing capacity of aluminum honeycomb sandwich panels is limited compared to solid materials:
- Maximum Load Limits: Each panel has a specified maximum load it can bear before failure occurs. Exceeding this limit can lead to catastrophic failure.
- Design Considerations: Engineers must carefully calculate loads during design phases to ensure safety and performance.
While these panels are designed to absorb impacts effectively, they are not impervious:
- Localized Damage: High-energy impacts can cause localized damage that may not be visible externally but can compromise internal structures.
- Cracking and Dents: Severe impacts can lead to cracking or denting of the outer skins without affecting the core significantly.
Although aluminum honeycomb sandwich panels offer many benefits, cost can be a limiting factor:
- Material Costs: The price of high-quality aluminum and specialized manufacturing processes can make these panels more expensive than alternatives like plywood or solid metal sheets.
- Manufacturing Complexity: The production process requires precision engineering and quality control measures that add to costs.
Once damaged, repairing aluminum honeycomb sandwich panels can be challenging:
- Difficulties in Repairing Delamination: If delamination occurs due to moisture or impact damage, repairing the bond between layers may require specialized techniques or complete replacement.
- Surface Repair Challenges: Surface damage may require refinishing or repainting to restore aesthetics and protect against corrosion.
The production of aluminum honeycomb sandwich panels has environmental implications:
- Energy Intensive Production: Manufacturing aluminum requires significant energy input, contributing to carbon emissions if not sourced from renewable energy.
- Recycling Challenges: While aluminum is recyclable, separating it from composite materials used in some sandwich panels can complicate recycling efforts.
Aluminum honeycomb sandwich panels offer remarkable strength characteristics that make them suitable for various applications. However, understanding their limitations is crucial for engineers and designers seeking optimal performance in structural applications. By being aware of issues such as bending and shear strength limitations, temperature sensitivity, moisture absorption risks, limited load-bearing capacity, vulnerability to impact damage, cost considerations, repair challenges, and environmental impacts, stakeholders can make informed decisions about using these materials effectively.
Aluminum honeycomb sandwich panels provide a high strength-to-weight ratio, excellent thermal insulation properties, good impact resistance, and design flexibility for various applications.
The appropriate thickness depends on factors such as load requirements, application type (e.g., aerospace vs. construction), and specific design criteria outlined by engineering standards.
Yes, they can be used outdoors; however, proper sealing and protective coatings are essential to prevent moisture ingress and UV degradation over time.
Repairing damage typically involves assessing the extent of damage first; minor surface scratches may require sanding and repainting while more severe issues might necessitate replacing sections or re-bonding layers with specialized adhesives.
These panels are widely used in aerospace (aircraft interiors), automotive (lightweight components), marine (boat hulls), architectural (facades), and industrial applications due to their unique properties.
