Aluminum composite panels (ACPs) have become increasingly popular in the construction and signage industries due to their versatility, durability, and aesthetic appeal. Understanding the standard dimensions of these panels is crucial for architects, designers, and contractors to effectively plan and execute their projects. In this comprehensive guide, we'll explore the various aspects of aluminum composite panel dimensions and their applications.

The Basics of Aluminum Composite Panels

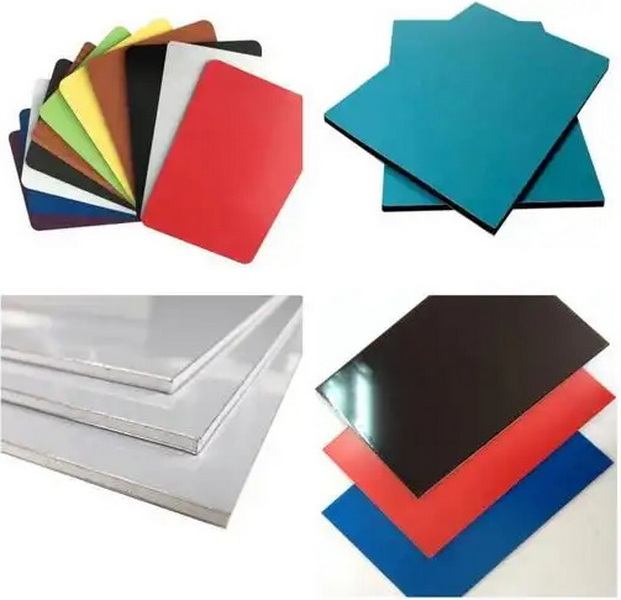

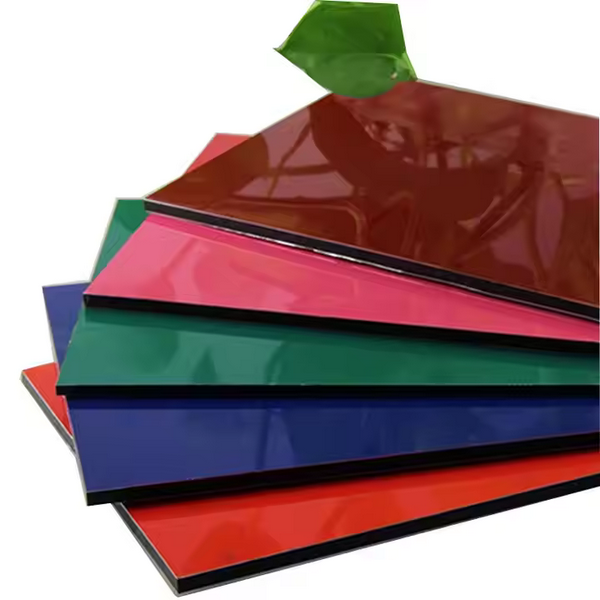

Aluminum composite panels are sandwich-structured panels consisting of two aluminum sheets bonded to a non-aluminum core. This unique composition provides a lightweight yet sturdy material that offers excellent flatness and rigidity. Before delving into the specific dimensions, let's take a closer look at the structure of an ACP:

1. Aluminum Skin: The outer layers of the panel, typically ranging from 0.2mm to 0.5mm in thickness.

2. Core Material: Usually made of polyethylene (PE) or a fire-retardant (FR) material.

3. Adhesive Layer: Bonds the aluminum skins to the core material.

Standard Aluminum Composite Panel Dimensions

Panel Thickness

The thickness of aluminum composite panels is one of the most critical dimensions to consider. Standard thicknesses include:

- 2mm

- 3mm

- 4mm

- 6mm

While these are the most common thicknesses, some manufacturers may offer custom thicknesses to meet specific project requirements.

Panel Width and Length

Standard aluminum composite panel dimensions for width and length vary, but the most common sizes are:

1. 1220mm x 2440mm (4ft x 8ft)

2. 1220mm x 3050mm (4ft x 10ft)

3. 1500mm x 3050mm (5ft x 10ft)

4. 1500mm x 4050mm (5ft x 13ft)

Some manufacturers may offer custom sizes or larger panels up to 2000mm in width and 6000mm in length for specific applications.

Aluminum Skin Thickness

The thickness of the aluminum skins plays a crucial role in the panel's overall performance. Standard skin thicknesses include:

- 0.20mm

- 0.30mm

- 0.40mm

- 0.50mm

Thicker skins generally provide better rigidity and impact resistance, while thinner skins offer more flexibility for curved applications.

Factors Influencing ACP Dimensions

Several factors can influence the choice of aluminum composite panel dimensions:

1. Application: Different applications may require specific panel sizes or thicknesses. For example, exterior cladding might need thicker panels compared to interior signage.

2. Building Codes: Local building codes and regulations may dictate minimum thickness requirements, especially for fire-rated panels.

3. Wind Load: In areas with high wind loads, thicker panels or smaller panel sizes may be necessary to ensure structural integrity.

4. Aesthetic Considerations: The desired visual effect may influence the choice of panel size and thickness.

5. Installation Method: Different installation systems may require specific panel dimensions for optimal performance.

Applications and Recommended Dimensions

Exterior Cladding

For exterior cladding applications, 4mm thick panels are most commonly used. However, 6mm panels may be preferred for larger facades or areas with high wind loads.

Recommended dimensions:

- Thickness: 4mm - 6mm

- Width: 1220mm - 1500mm

- Length: 3050mm - 4050mm

Interior Wall Panels

Interior applications often use thinner panels, as they don't need to withstand external forces.

Recommended dimensions:

- Thickness: 2mm - 3mm

- Width: 1220mm

- Length: 2440mm - 3050mm

Signage

For signage applications, the choice of dimensions depends on the size and type of sign.

Recommended dimensions:

- Thickness: 3mm - 4mm

- Width: 1220mm - 1500mm

- Length: 2440mm - 3050mm

Column Covers

Column covers often require custom dimensions to fit specific architectural elements.

Recommended dimensions:

- Thickness: 4mm - 6mm

- Width: Custom (typically 1000mm - 1500mm)

- Length: Custom (based on column height)

Installation Considerations

When working with aluminum composite panels, proper installation is crucial to ensure longevity and performance. Here are some key considerations related to panel dimensions:

1. Joint Spacing: Allow for proper joint spacing between panels to accommodate thermal expansion and contraction. Typically, a gap of 10-15mm is recommended.

2. Edge Distance: Maintain adequate distance from panel edges when placing fasteners to prevent edge failure.

3. Support Spacing: Ensure that the panel size is compatible with the supporting structure's spacing to prevent sagging or oil-canning.

4. Cutting and Fabrication: Consider the panel dimensions in relation to the available cutting and fabrication equipment to minimize waste and ensure precise cuts.

Customization Options

While standard dimensions are widely available, many manufacturers offer customization options to meet specific project requirements:

1. Custom Colors: In addition to standard colors, custom color matching is often available.

2. Custom Sizes: Panels can be manufactured in non-standard sizes to minimize waste or accommodate unique architectural features.

3. Curved Panels: Some manufacturers can produce pre-curved panels for specific radius requirements.

4. Perforated Panels: Custom perforation patterns can be created for decorative or functional purposes.

Sustainability and Environmental Considerations

When selecting aluminum composite panel dimensions, it's important to consider sustainability factors:

1. Material Efficiency: Choose panel sizes that minimize waste during fabrication and installation.

2. Recycled Content: Many manufacturers offer panels with recycled aluminum content, reducing the environmental impact.

3. Longevity: Selecting appropriate dimensions and thicknesses can contribute to the longevity of the installation, reducing the need for replacement.

4. Energy Efficiency: Proper panel dimensions and installation can contribute to improved building energy performance.

Future Trends in ACP Dimensions

As technology and manufacturing processes evolve, we can expect to see some trends in aluminum composite panel dimensions:

1. Larger Panel Sizes: Advancements in manufacturing may lead to the availability of even larger panel sizes, reducing the number of joints in large-scale applications.

2. Ultra-Thin Panels: Development of stronger core materials may allow for thinner panels without compromising strength.

3. Variable Thickness Panels: Panels with varying thicknesses across their surface may emerge, offering unique design possibilities.

4. Smart Panels: Integration of technology within the panel structure may lead to new dimensional considerations for incorporating sensors or lighting elements.

Conclusion

Understanding the standard aluminum composite panel dimensions is essential for successful project planning and execution. While 3mm and 4mm thicknesses with widths of 1220mm or 1500mm and lengths of 2440mm to 4050mm are the most common, the versatility of ACPs allows for customization to meet specific project needs. By considering factors such as application, building codes, and installation methods, architects and contractors can select the optimal panel dimensions to achieve both functional and aesthetic goals.

As the construction industry continues to evolve, staying informed about the latest developments in aluminum composite panel technology and dimensions will be crucial for professionals looking to leverage the full potential of this versatile material.

FAQs

Here are five frequently asked questions related to aluminum composite panel dimensions:

1. What is the maximum size available for aluminum composite panels?

The maximum size of aluminum composite panels can vary by manufacturer, but typically, the largest standard size available is around 2000mm x 6000mm (6.5ft x 19.7ft). However, it's important to note that handling and transportation of such large panels can be challenging, and not all manufacturers may offer this size as a standard option.

2. How does panel thickness affect the weight of aluminum composite panels?

Panel thickness directly affects the weight of aluminum composite panels. As a general rule, the weight increases proportionally with thickness. For example:

- 3mm thick panel: approximately 3.8 kg/m²

- 4mm thick panel: approximately 5.5 kg/m²

- 6mm thick panel: approximately 8.0 kg/m²

These weights can vary slightly depending on the specific composition of the panel and the manufacturer.

3. Can aluminum composite panels be cut to custom sizes on-site?

Yes, aluminum composite panels can be cut to custom sizes on-site using various tools such as circular saws with carbide-tipped blades, routers, or water jet cutters. However, for the best results and to ensure warranty coverage, it's often recommended to have panels pre-cut to size by the manufacturer or a specialized fabricator who has the proper equipment and expertise.

4. How do I choose the right panel thickness for my project?

Choosing the right panel thickness depends on several factors:

1. Application (interior vs. exterior)

2. Structural requirements

3. Wind load considerations

4. Local building codes

5. Aesthetic preferences

For most exterior applications, 4mm panels are standard, while interior applications often use 3mm panels. Consult with the manufacturer or a structural engineer for specific recommendations based on your project requirements.

5. Are there any special considerations for panel dimensions in fire-rated applications?

For fire-rated applications, the dimensions of aluminum composite panels may need to adhere to specific requirements set by local building codes and fire safety regulations. Generally, fire-rated panels may be slightly thicker than standard panels to accommodate the fire-resistant core material. Additionally, the maximum allowable panel size may be limited to ensure proper performance in fire conditions. Always consult with the manufacturer and local building authorities when using ACPs in fire-rated applications to ensure compliance with all relevant codes and standards.
