Modern electrical systems demand careful planning, and selecting the right wiring material plays a critical role in ensuring safety and performance. Aluminum wire remains a cost-effective choice for 100-amp service panels, but its installation requires adherence to specific guidelines. This article explores the essentials of using aluminum wire for 100-amp applications, including wire sizing, installation best practices, safety considerations, and comparisons with copper alternatives.
Aluminum wire is widely used in residential and commercial electrical systems due to its affordability and lightweight properties. For 100-amp service panels, the correct wire size ensures optimal current flow while minimizing voltage drop and overheating risks. Key considerations include:
- Wire Sizing:
- #1 Aluminum: Rated for up to 100 amps but less common due to its lower durability compared to copper.
- 2/0 Aluminum: The most widely recommended size for 100-amp panels, balancing cost and performance.
- Voltage Drop Mitigation: For long-distance runs (e.g., 450 feet), larger sizes like 350 kcmil may be necessary to maintain efficiency.
- Types of Aluminum Wiring:
- THWN (Thermoplastic Heat and Water-resistant Nylon-coated): Suitable for indoor and outdoor use, with a 90°C temperature rating.
- XHHW-2 (Cross-linked High Heat Water-resistant): Ideal for high-voltage applications like HVAC systems.
- SER Cable (Service Entrance Cable): Combines THHN wires and a bare ground, commonly used in residential setups.
Proper installation is critical to mitigating risks associated with aluminum wiring, such as corrosion and loose connections. Follow these steps:
- Use 1.5" conduit for runs up to 200 feet. Ensure it's fully sealed and grounded at both ends.
- Apply antioxidant paste to wire ends to prevent oxidation.

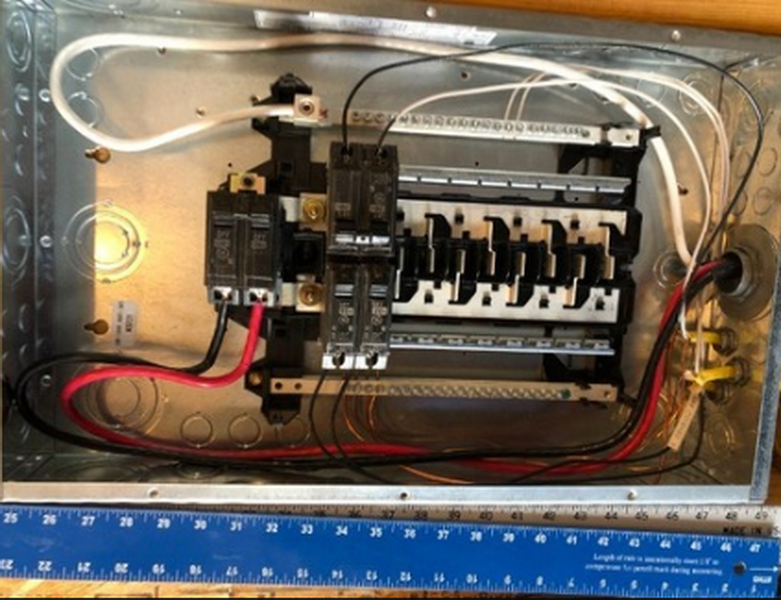

- Connect hot wires to a 100-amp breaker in the main panel.
- Separate ground and neutral bars in the subpanel to comply with NEC guidelines.
- Install ground rods at both the main and subpanel locations.
- Use insulated ground wires (e.g., #6 aluminum) for added safety.
Aluminum wire requires meticulous handling to avoid hazards:
- Thermal Expansion: Aluminum expands more than copper, so use torque wrenches to secure connections and recheck them annually.
- Corrosion Prevention: Apply anti-oxidant compounds at termination points.
- Ampacity Limits: Never exceed the wire's rated capacity. For example, #2 aluminum is limited to 90 amps unless derated for specific conditions.
| Feature | Aluminum Wire | Copper Wire |
|---|---|---|
| Cost | 40–60% cheaper | Expensive |
| Ampacity | Lower (requires larger size) | Higher |
| Durability | Prone to corrosion | Resists oxidation |
| Installation Ease | Stiffer, harder to bend | Flexible |
- Residential Subpanels: Garages, workshops, and barns.
- Commercial Buildings: Cost-effective for large-scale installations.
- HVAC Systems: XHHW-2 aluminum handles high-voltage demands.
Aluminum wire offers a practical solution for 100-amp electrical systems when installed correctly. Prioritize wire sizing, corrosion prevention, and code compliance to ensure safety. While copper remains superior in conductivity, aluminum's affordability makes it a viable choice for budget-conscious projects.
Yes, if installed with antioxidant paste, proper torque, and regular inspections.
Use 2/0 aluminum for most residential setups. For long distances, upgrade to 350 kcmil.
No. #1 aluminum is rated for 100 amps, but derating for temperature and distance is essential.
Use torque wrenches and annual maintenance checks to ensure tightness.
NEC requires separation to prevent current from flowing through unintended paths.
