Is Vented Aluminum Honeycomb Suitable for Aerospace Applications?

Content Menu

● Understanding Vented Aluminum Honeycomb

>> What is Aluminum Honeycomb?

>> What Does "Vented" Mean in Aluminum Honeycomb?

● Key Properties of Vented Aluminum Honeycomb

● Manufacturing Process of Vented Aluminum Honeycomb

● Applications of Vented Aluminum Honeycomb in Aerospace

>> Structural Components

>> Tooling and Manufacturing

>> Environmental Control Systems

>> Defense and Spacecraft

● Advantages of Vented Aluminum Honeycomb in Aerospace

● Recent Advancements in Vented Aluminum Honeycomb Technology

● Design Considerations for Aerospace Engineers

● Environmental Impact and Sustainability

● Challenges and Considerations

● Challenges and Considerations

● Conclusion

● Frequently Asked Questions (FAQs)

>> 1. What is the primary benefit of vented aluminum honeycomb in aerospace?

>> 2. How does vented aluminum honeycomb improve thermal management?

>> 3. Can vented aluminum honeycomb be used in all parts of an aircraft?

>> 4. How does vented aluminum honeycomb compare to unvented honeycomb?

>> 5. Is vented aluminum honeycomb environmentally friendly?

● Citations:

Vented aluminum honeycomb has become a pivotal material in aerospace engineering, offering a unique combination of lightweight strength, thermal management, and structural integrity. This article explores the suitability of vented aluminum honeycomb for aerospace applications, detailing its properties, benefits, manufacturing processes, and real-world uses. We will also provide visual aids and videos to enhance understanding, followed by a comprehensive conclusion and a Frequently Asked Questions section.

Understanding Vented Aluminum Honeycomb

What is Aluminum Honeycomb?

Aluminum honeycomb is a core material made from thin aluminum foil sheets formed into a hexagonal honeycomb structure. This design mimics natural honeycombs, providing exceptional strength-to-weight ratios. The honeycomb core is typically sandwiched between two face sheets to create a composite panel that is lightweight yet extremely strong and stiff.

What Does "Vented" Mean in Aluminum Honeycomb?

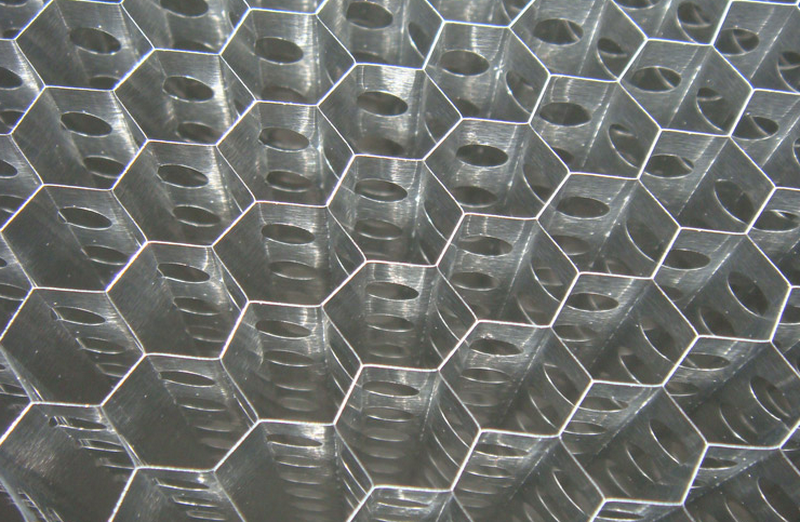

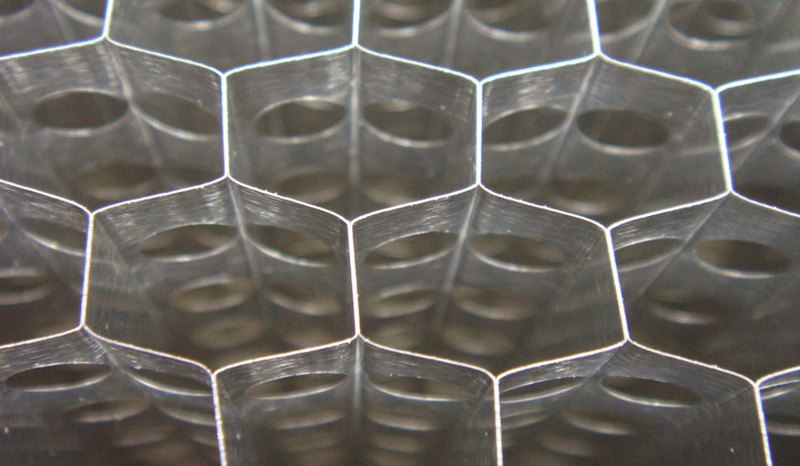

Vented aluminum honeycomb refers to honeycomb cores that have perforations or slots allowing air or gases to flow through the cells. This venting is critical in aerospace applications to equalize pressure differences during rapid altitude changes and to allow volatiles or moisture to escape, preventing structural damage or failure[1][5].

Key Properties of Vented Aluminum Honeycomb

- Lightweight and High Strength: Aluminum honeycomb cores provide a high strength-to-weight ratio, essential for aerospace structures where weight reduction is critical[2][6].

- Pressure Equalization: Vented cores allow air to flow through, preventing pressure differentials that can cause panel deformation or failure during flight ascent and descent[1].

- Thermal Management: The vented design facilitates even heat distribution, which is vital during manufacturing processes like curing and in-flight thermal conditions[5][7].

- Corrosion and Moisture Resistance: Aluminum's natural corrosion resistance, combined with venting, reduces moisture entrapment and fungal growth, enhancing durability[6][11].

- Fire Resistance and Temperature Tolerance: Aerospace-grade aluminum honeycomb can withstand elevated temperatures and is flame resistant, meeting stringent aerospace safety standards[12].

Manufacturing Process of Vented Aluminum Honeycomb

The production of vented aluminum honeycomb involves several precise steps:

1. Foil Preparation: Thin aluminum foils are cleaned and coated for corrosion resistance.

2. Expansion and Corrugation: Foils are stacked and expanded to form the honeycomb structure.

3. Perforation: Cells are perforated or slotted to create venting pathways.

4. Bonding: The honeycomb core is bonded to face sheets, often aluminum or composite materials.

5. Cutting and Finishing: Panels are cut to size and finished according to aerospace specifications[6][9].

Applications of Vented Aluminum Honeycomb in Aerospace

Structural Components

Vented aluminum honeycomb is widely used in aircraft fuselage panels, wing structures, tailcones, and radomes. Its lightweight nature helps reduce overall aircraft weight, improving fuel efficiency and payload capacity[2][5].

Tooling and Manufacturing

In aerospace tooling, vented honeycomb cores ensure even heat distribution during composite curing, preventing defects and ensuring consistent quality[5][7].

Environmental Control Systems

The material is also used in aircraft heating, ventilation, and air conditioning (HVAC) systems, where its vented structure supports airflow while maintaining structural integrity[6].

Defense and Spacecraft

Due to its strength and pressure equalization capabilities, vented aluminum honeycomb is employed in military vehicles and spacecraft components, where extreme conditions demand reliable materials[1][14].

Advantages of Vented Aluminum Honeycomb in Aerospace

Advantage	Description
Weight Reduction	Significantly lowers aircraft weight, enhancing fuel efficiency and performance.
Pressure Management	Prevents panel failure by equalizing internal and external pressures during flight.
Thermal Stability	Facilitates uniform heat distribution during manufacturing and operation.
Corrosion and Moisture Control	Reduces risk of corrosion and moisture-related damage, extending service life.
Environmental Sustainability	Aluminum is highly recyclable, supporting eco-friendly aerospace manufacturing.

Recent Advancements in Vented Aluminum Honeycomb Technology

Recent technological advancements have further enhanced the performance and applicability of vented aluminum honeycomb in aerospace. Innovations include:

- Improved Perforation Techniques: Laser and precision mechanical perforation methods now allow for more uniform venting patterns, optimizing pressure equalization without compromising structural integrity.

- Hybrid Core Materials: Combining aluminum honeycomb with advanced composite materials enhances impact resistance and fatigue life.

- Surface Treatments: New coatings improve corrosion resistance and reduce friction, extending the lifespan of honeycomb panels in harsh aerospace environments.

- Smart Honeycomb Structures: Integration of sensors within vented honeycomb cores enables real-time monitoring of structural health, temperature, and pressure changes during flight.

These advancements contribute to safer, more efficient aerospace designs and open new possibilities for vented aluminum honeycomb applications.

Design Considerations for Aerospace Engineers

When integrating vented aluminum honeycomb into aerospace structures, engineers must consider:

- Cell Size and Thickness: Optimizing cell dimensions affects strength, weight, and venting efficiency.

- Vent Pattern Design: The size, shape, and distribution of vents must balance airflow with mechanical performance.

- Compatibility with Face Sheets: Proper bonding techniques and material compatibility ensure panel durability.

- Environmental Exposure: Protective coatings and sealants may be necessary for corrosive or high-moisture environments.

- Regulatory Compliance: Panels must meet aerospace standards such as FAR, MIL-STD, and ASTM for safety and performance.

Environmental Impact and Sustainability

In today's aerospace industry, sustainability is a growing concern. Vented aluminum honeycomb contributes positively to environmental goals in several ways:

- Recyclability: Aluminum is one of the most recyclable metals, and honeycomb cores can be reclaimed and reused, reducing waste.

- Fuel Efficiency: By significantly reducing aircraft weight, vented aluminum honeycomb helps lower fuel consumption and carbon emissions.

- Long Service Life: Its corrosion resistance and durability reduce the need for frequent replacements, minimizing resource use.

- Eco-Friendly Manufacturing: Advances in manufacturing processes have reduced energy consumption and emissions during production.

These factors make vented aluminum honeycomb not only a high-performance material but also an environmentally responsible choice for aerospace manufacturers.

Challenges and Considerations

While vented aluminum honeycomb offers many benefits, aerospace engineers must consider:

- Manufacturing Complexity: Perforation and venting add complexity and cost to production.

- Environmental Exposure: Although corrosion-resistant, aluminum honeycomb must be protected from harsh environments, especially saltwater exposure[11].

- Design Integration: Proper venting design is critical to ensure pressure equalization without compromising structural integrity[1].

Challenges and Considerations

While vented aluminum honeycomb offers many benefits, aerospace engineers must consider:

- Manufacturing Complexity: Perforation and venting add complexity and cost to production.

- Environmental Exposure: Although corrosion-resistant, aluminum honeycomb must be protected from harsh environments, especially saltwater exposure.

- Design Integration: Proper venting design is critical to ensure pressure equalization without compromising structural integrity.

- Repair and Maintenance: Damage to vented honeycomb panels can be more challenging to repair due to the venting structure, requiring specialized techniques.

Conclusion

Vented aluminum honeycomb is highly suitable for aerospace applications due to its exceptional strength-to-weight ratio, pressure equalization capabilities, thermal management, and durability. Its use in structural components, tooling, and environmental control systems underscores its versatility and reliability in demanding aerospace environments. Recent technological advancements have further enhanced its performance, making it an indispensable material in modern aerospace engineering. As aerospace technology advances, vented aluminum honeycomb will continue to play a crucial role in creating safer, lighter, and more efficient aircraft and spacecraft.

Frequently Asked Questions (FAQs)

1. What is the primary benefit of vented aluminum honeycomb in aerospace?

The primary benefit is its ability to equalize pressure differences during flight, preventing structural damage while maintaining a lightweight and strong core for aerospace panels.

2. How does vented aluminum honeycomb improve thermal management?

The vented design allows heat to distribute evenly through the core, which is essential during composite curing and in-flight temperature fluctuations, reducing the risk of hot spots and material failure.

3. Can vented aluminum honeycomb be used in all parts of an aircraft?

While it is widely used in many structural and non-structural components, its application depends on specific design requirements, environmental exposure, and load conditions.

4. How does vented aluminum honeycomb compare to unvented honeycomb?

Vented honeycomb prevents pressure build-up and moisture entrapment, reducing the risk of panel failure, especially during rapid altitude changes, unlike unvented honeycomb which can trap air and volatiles.

5. Is vented aluminum honeycomb environmentally friendly?

Yes, aluminum is highly recyclable, and the use of vented aluminum honeycomb supports sustainability goals in aerospace manufacturing by reducing weight and improving fuel efficiency.
