Nordam aluminum honeycomb panels are renowned for their exceptional strength-to-weight ratio, making them a preferred choice in various industries such as aerospace, architecture, and transportation. These panels consist of a honeycomb core sandwiched between two aluminum facings, offering a unique combination of lightweight construction, high strength, and rigidity. In this article, we will delve into the strengths of Nordam aluminum honeycomb panels compared to other materials, exploring their applications, benefits, and technical specifications.

Introduction to Aluminum Honeycomb Panels

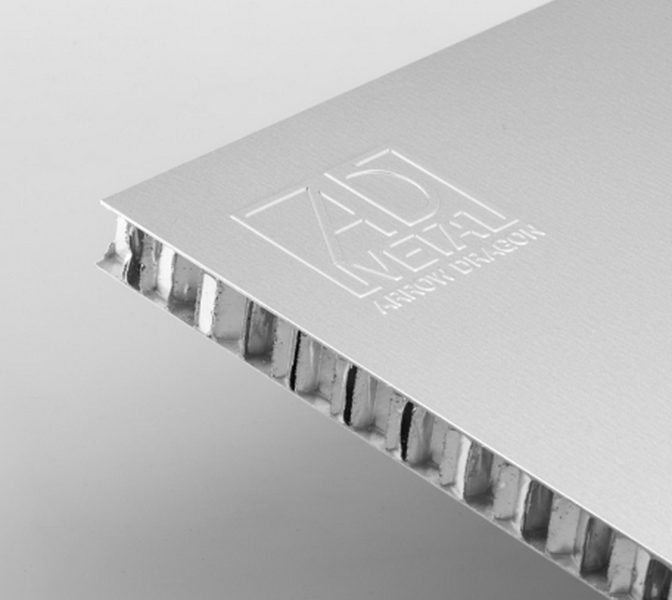

Aluminum honeycomb panels are inspired by the natural hexagonal structure of honeycombs, which provides maximum strength with minimal material usage. The core is made from thin aluminum foil, expanded into a honeycomb structure and then bonded between two aluminum sheets. This design ensures that the panels are not only lightweight but also highly resistant to deformation under stress.

Advantages of Nordam Aluminum Honeycomb Panels

1. Lightweight and High Strength:

These panels are significantly lighter than traditional materials like steel or solid aluminum, yet they maintain high strength and rigidity. This makes them ideal for applications where weight reduction is crucial, such as in aerospace and transportation.

2. Excellent Stiffness:

The honeycomb structure provides a high moment of inertia, which enhances the panel's stiffness. This is particularly beneficial in bending loads, where the panel's ability to resist deformation is critical.

3. Thermal and Sound Insulation:

The cellular structure of the honeycomb core acts as an effective barrier to heat and sound, making these panels suitable for applications requiring thermal insulation and soundproofing.

4. Fire Resistance:

Aluminum is non-combustible, providing excellent fire resistance. This feature is essential in construction and aerospace applications where safety is paramount.

5. Environmental Benefits:

Aluminum honeycomb panels are fully recyclable, contributing to sustainable practices and reducing environmental impact.

Comparison with Other Materials

Aluminum Honeycomb vs. Steel

- Weight: Aluminum honeycomb panels are much lighter than steel, making them ideal for weight-sensitive applications.

- Strength: While steel offers higher tensile strength, aluminum honeycomb panels provide superior stiffness-to-weight ratio, which is crucial in bending loads.

- Corrosion Resistance: Aluminum generally offers better corrosion resistance than steel, especially in marine environments.

Aluminum Honeycomb vs. Carbon Composite

- Weight: Both materials are lightweight, but carbon composite often provides a slightly better strength-to-weight ratio.

- Cost: Aluminum honeycomb panels are generally more cost-effective than carbon composite panels.

- Applications: Carbon composite is often used in high-performance applications where ultimate strength is required, while aluminum honeycomb is preferred for its cost-effectiveness and ease of production.

Aluminum Honeycomb vs. Foam Sandwich Panels

- Weight: Both are lightweight, but foam sandwich panels can offer better thermal and acoustic insulation.

- Cost: Foam sandwich panels are often cheaper than aluminum honeycomb, with a better cost-to-performance ratio.

- Strength: Aluminum honeycomb generally provides higher tensile strength per weight than foam cores.

Applications of Nordam Aluminum Honeycomb Panels

These panels are widely used in:

- Aerospace: For aircraft components where weight reduction is critical.

- Architecture: In building facades, ceilings, and partitions due to their aesthetic appeal and structural benefits.

- Transportation: In vehicle construction to enhance fuel efficiency and reduce emissions.

- Marine: For shipbuilding due to their corrosion resistance and lightweight properties.

Technical Specifications

Nordam aluminum honeycomb panels are available in various thicknesses and configurations, including different core densities and skin materials. For example, the NL610 series features a 5052 aluminum core with a 2024-T3 clad aluminum skin, offering a balance of strength and corrosion resistance.

Manufacturing Process

The manufacturing process of aluminum honeycomb panels involves several key steps:

1. Core Production: Thin aluminum foil is expanded into a honeycomb structure through a process of cutting and folding.

2. Skin Preparation: Aluminum sheets are cut to size and prepared for bonding.

3. Bonding: The honeycomb core is sandwiched between the aluminum skins using a strong adhesive.

4. Curing: The panel is cured under pressure to ensure a strong bond between the core and skins.

Challenges and Future Developments

While Nordam aluminum honeycomb panels offer numerous benefits, there are challenges to their widespread adoption. These include:

- Cost: Although cost-effective compared to some materials, they can be more expensive than traditional materials like steel or wood.

- Complexity: The manufacturing process can be complex, requiring specialized equipment and expertise.

Future developments are likely to focus on improving manufacturing efficiency and reducing costs, as well as exploring new applications in emerging industries such as renewable energy and advanced transportation systems.

Conclusion

Nordam aluminum honeycomb panels are a versatile and efficient material choice for various industries. Their unique combination of lightweight construction, high strength, and rigidity, along with their environmental benefits, makes them an attractive option for applications requiring both performance and sustainability.

Frequently Asked Questions

1. What are the primary advantages of using Nordam aluminum honeycomb panels?

Nordam aluminum honeycomb panels offer a high strength-to-weight ratio, excellent stiffness, thermal and sound insulation, fire resistance, and environmental sustainability.

2. How do Nordam aluminum honeycomb panels compare to steel in terms of strength?

While steel has higher tensile strength, aluminum honeycomb panels provide superior stiffness-to-weight ratio, making them ideal for applications where weight reduction is critical.

3. What are the common applications of Nordam aluminum honeycomb panels?

These panels are commonly used in aerospace, architecture, transportation, and marine industries due to their lightweight and high-strength properties.

4. Are Nordam aluminum honeycomb panels recyclable?

Yes, these panels are fully recyclable, contributing to sustainable practices and reducing environmental impact.

5. How do Nordam aluminum honeycomb panels perform in terms of thermal insulation?

The honeycomb structure provides excellent thermal insulation by preventing air circulation, which reduces heat transfer and maintains a stable temperature.
