Forming aluminum body panels is a complex process that involves several techniques and technologies. Aluminum is widely used in the automotive industry due to its lightweight, corrosion resistance, and high strength-to-weight ratio. However, its formability and weldability present challenges compared to traditional steel. Here, we will explore the methods and tools used in forming aluminum body panels, including traditional cold forming, warm forming, hydroforming, and extrusion.

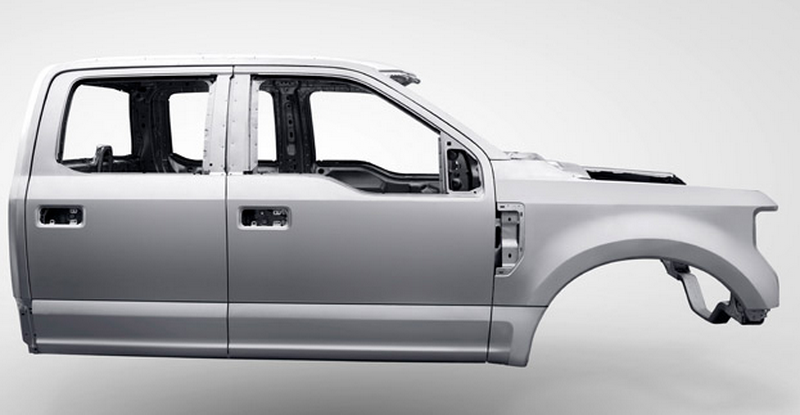

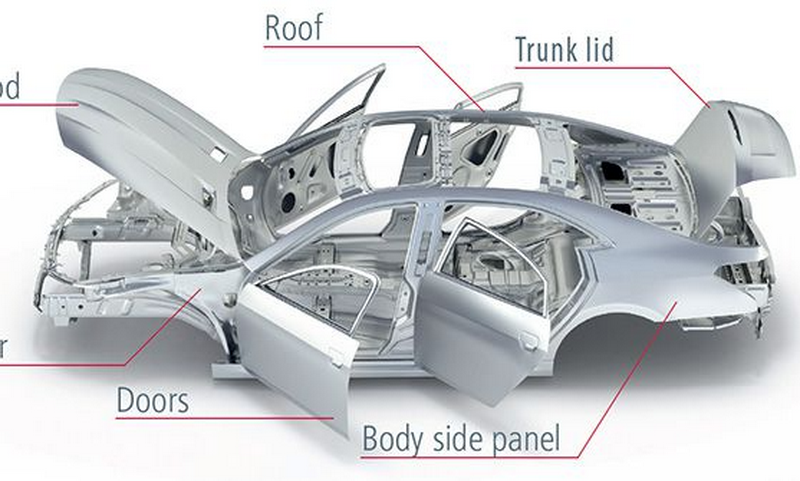

Aluminum alloys, particularly the 5000 and 6000 series, are commonly used for automotive body panels. These alloys offer good corrosion resistance and mechanical properties but require special handling during the forming process. The formability of aluminum is generally lower than that of steel, which necessitates careful control of forming conditions to avoid defects like wrinkling and springback.
Cold forming is the most common method for shaping aluminum body panels. It involves using presses to stamp the aluminum sheets into the desired shape. However, aluminum's lower formability and higher springback compared to steel require additional measures to achieve the desired shape accurately. Techniques such as controlling blank holding forces and using specialized lubricants are crucial for successful cold forming.
Warm forming is used to improve the formability of aluminum by heating the material to a temperature range of 240-260°C. This process allows for more complex shapes to be formed with reduced springback. However, it requires sophisticated tooling and temperature control systems, which can increase costs and reduce production efficiency.
Hydroforming is a technique used for creating complex shapes, especially for hollow components like tubes and profiles. It involves filling a tube with liquid and applying high pressure to shape it into a mold. This method is particularly useful for producing parts with precise tolerances and complex cross-sections.
Aluminum extrusion is a process where heated aluminum billets are pressed through dies to create long components with constant cross-sections. This method is ideal for producing parts like bumper beams and space frames. The extruded shapes can then be bent or hydroformed to achieve more complex geometries.
When designing and manufacturing aluminum body panels, it's essential to consider the material's properties and the forming process. Guidelines include:
- Geometry and Tooling: Ensure that the panel design is compatible with aluminum's formability and that tooling is optimized for aluminum.
- Material Selection: Choose appropriate aluminum alloys based on the required mechanical properties and formability.
- Simulation Tools: Use simulation software to validate panel geometry and predict potential forming issues.
Despite the advantages of aluminum, forming body panels presents several challenges:
- Formability: Aluminum has lower formability than steel, requiring careful control of forming conditions.
- Springback: Aluminum tends to spring back more than steel, affecting dimensional accuracy.
- Welding: Aluminum does not weld as easily as steel, often requiring specialized techniques like self-piercing rivets or adhesives.
As technology advances, we can expect further innovations in aluminum forming techniques. These may include more efficient warm forming processes, improved electromagnetic forming methods, and increased use of additive manufacturing for complex components. Additionally, advancements in material science could lead to the development of new aluminum alloys with improved formability and weldability.
The use of aluminum in automotive manufacturing also offers environmental benefits. Aluminum is highly recyclable, which reduces waste and conserves natural resources. Furthermore, lighter vehicles made with aluminum body panels can improve fuel efficiency, leading to lower emissions and a reduced carbon footprint.
Economic Considerations
While aluminum offers many advantages, its higher cost compared to steel can be a significant factor in production decisions. However, the long-term benefits of reduced fuel consumption and extended vehicle lifespan can offset these initial costs. Moreover, advancements in manufacturing technologies are continually reducing the cost gap between aluminum and steel.
Forming aluminum body panels involves a range of techniques from traditional cold forming to more advanced methods like warm forming and hydroforming. Understanding the properties of aluminum alloys and optimizing the forming process are crucial for producing high-quality panels. As the automotive industry continues to seek lightweight materials, innovations in aluminum forming will play a significant role in vehicle design and manufacturing.
Aluminum alloys commonly used for automotive body panels include the 5000 series (e.g., 5052, 5754) and the 6000 series (e.g., 6016, 6014). These alloys offer a balance of strength, corrosion resistance, and formability.
Warm forming improves aluminum's formability by heating the material to a temperature range where it becomes more ductile, allowing for more complex shapes to be formed with reduced springback.
Hydroforming is used to create complex shapes, particularly for hollow components like tubes and profiles, by applying high pressure to shape the material into a mold.
Aluminum does not weld as easily as steel due to oxide formation on its surface, which can trap gases and weaken welds. Specialized techniques like self-piercing rivets or adhesives are often used instead.
Extrusion is used to produce long components with constant cross-sections, such as bumper beams and space frames. These extruded shapes can then be further processed through bending or hydroforming.
