Installing aluminum soffit panels is a practical and aesthetic way to enhance the appearance of your home while providing ventilation and protection against moisture. This comprehensive guide will walk you through the entire process of installing aluminum soffit panels, from preparation to finishing touches.
Before starting your installation, gather the following tools and materials:
- Measuring tape
- Carpenter's square
- Circular saw or jigsaw
- Utility knife
- Drill
- Aluminum soffit panels
- Aluminum J-channel
- Nails (1 ¼ inch trim nails recommended)
- Staples (for securing panels)
- Caulk (for sealing joints)
- Safety gear (gloves, goggles)
1. Remove Old Soffit Panels: If you are replacing existing soffits, carefully take them down. Inspect the underlying framing for any damage and repair as necessary.
2. Clean the Area: Ensure that the soffit framing is clean and free of debris.
3. Measure and Cut: Measure the length and width of the soffit area. Cut your aluminum soffit panels to size, making sure to subtract 1/4 inch from your measurements for a snug fit.

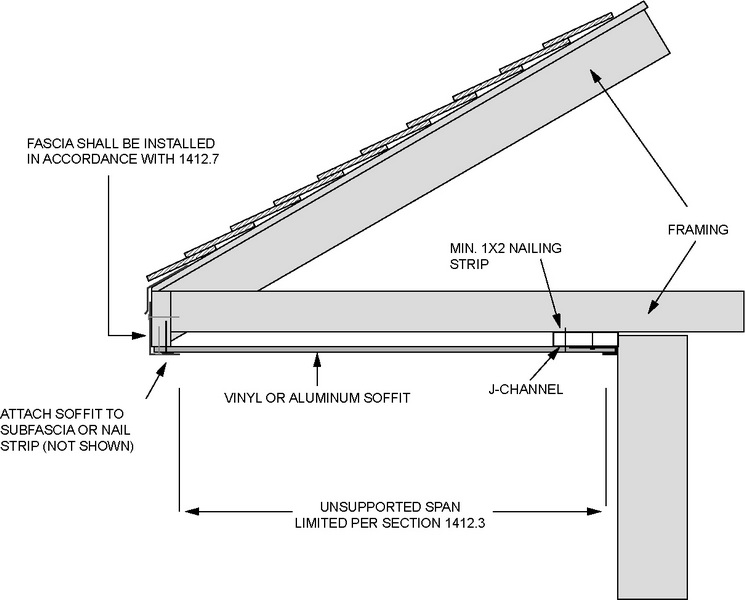

1. Position the J-Channel: Start by installing the J-channel against the existing soffit framing. Use nails or staples to secure it in place.
2. Cut Corners: For corners, notch the top and backside of the J-channel to fit around corner boards, cutting the bottom to extend past corner boards.
3. Leveling: Ensure that the bottom edge of the J-channel is level with the bottom surface of the fascia board.
1. Insert First Panel: Slide the first soffit panel into the J-channel with the groove side facing outward.
2. Secure Panel: Use a carpenter's square to ensure that the panel is perpendicular to the house. Nail through the outer V-grooves into the fascia board.
3. Continue Installation: Slip subsequent panels into place, ensuring that they interlock properly with previous panels. Use nails in each outer groove and along the groove flange for stability.
4. Cutting for Fit: If you encounter corners or irregular spaces, you may need to cut panels at a 45-degree angle for a clean finish.
5. Expansion Gaps: Leave enough space for expansion in all receiving channels as temperature changes can cause materials to expand or contract.
1. Prepare Fascia Boards: Cut fascia boards to length, ensuring they fit snugly against your newly installed soffits.
2. Secure Fascia: Position fascia boards beneath your soffit panels, nailing them securely while ensuring they are flush with both the soffits and any adjacent trim.
3. Finishing Touches: Use caulk to seal any joints between fascia and soffit panels to prevent moisture ingress.
After installing both soffit and fascia panels:
- Inspect all seams and joints.
- Caulk any gaps for a watertight seal.
- Paint or finish as desired to match your home's exterior.
Installing aluminum soffit panels can significantly improve both ventilation and aesthetics of your home's exterior while requiring minimal maintenance over time. With careful preparation, precise measurements, and attention to detail during installation, you can achieve professional-looking results that will last for years.
Aluminum soffit panels are lightweight, durable materials installed on the underside of eaves to provide ventilation and protect against moisture while enhancing aesthetic appeal.
Measure from the inside edge of your J-channel to the outer edge of your wooden framing at several points, adjusting for any variations in depth before cutting your aluminum panels 1/4 inch shorter than this measurement.
Yes, many homeowners can install aluminum soffit panels themselves with proper tools and instructions, making it a feasible DIY project.
Aluminum soffits require little maintenance; periodic cleaning with mild soap and water is usually sufficient to keep them looking new.
If you discover damaged framing during installation, it's crucial to repair or replace it before proceeding with installing new soffit panels to ensure structural integrity and prevent future issues.
By following this guide on how to install aluminum soffit panels, you can enhance your home's functionality while adding value through improved aesthetics and ventilation solutions.
