Installing composite panel fasteners requires precision and attention to detail to ensure a secure and durable installation. Composite panels, such as aluminum composite materials (ACM) and fiberglass-reinforced plywood, are widely used in construction for their lightweight, durability, and aesthetic appeal. In this article, we will guide you through the process of installing composite panel fasteners like a professional.
Composite panels are made from a combination of materials, often including a core sandwiched between two outer layers. For example, ACM panels consist of a polyethylene core between two aluminum sheets, while fiberglass-reinforced plywood panels use a plywood core with fiberglass reinforcement. These materials are chosen for their strength, resistance to weathering, and versatility in design.
- Aluminum Composite Materials (ACM): These are popular for exterior cladding due to their lightweight and corrosion resistance.

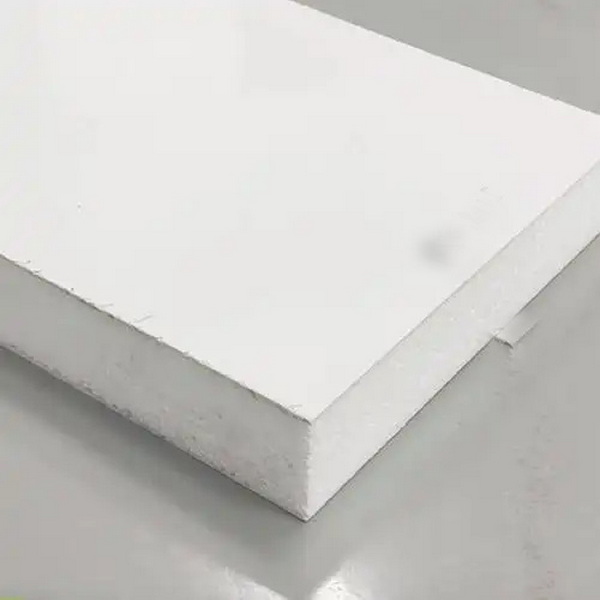

- Fiberglass-Reinforced Plywood: Commonly used in truck and trailer manufacturing for its durability and resistance to moisture.
Before installing composite panel fasteners, it's crucial to prepare the site and materials properly.
1. Verify Substrate Condition: Ensure the wall or substrate is structurally sound and flat.
2. Check for Penetrations: Seal all openings around windows, doors, and other penetrations.
3. Review Building Codes: Familiarize yourself with local building codes and manufacturer specifications.
1. Panel Inspection: Check for any damage or defects in the panels.
2. Fastener Selection: Choose fasteners compatible with your composite material. For example, Hucktainer fasteners are suitable for fiberglass-reinforced plywood and metal-clad composite panels.
The installation process involves several key steps:
- Vertical Support Rails: Install these at specified intervals (typically 16-24 inches on center) to provide a solid base for the panels.
- Horizontal Supports: Add these where necessary to ensure even distribution of weight.
- Alignment and Leveling: Ensure all supports are properly aligned and leveled.
- Dimension Verification: Confirm panel dimensions match the installation plan.
- Pre-drilling: Drill mounting holes according to engineering specifications.
- Cleaning: Clean the panels thoroughly before installation.
- Fastener Selection: Use specified fasteners and mounting clips designed for composite panels.
- Torque Specifications: Follow exact torque specifications to avoid over-tightening.
- Expansion Anchors: Install these where required to accommodate thermal expansion.
- Backer Rod Installation: Place backer rods in joints as specified.
- Sealant Application: Apply compatible sealants and tool joints properly.
- Cure Time: Allow sufficient time for sealants to cure.
- Panel Alignment: Check that all panels are level and plumb.
- Joint Consistency: Ensure consistent joint spacing and sealant application.
- Fastener Installation: Verify all fasteners are properly engaged.
- Thermal Expansion: Allow for greater thermal movement due to cold temperatures.
- Drainage Provisions: Include additional drainage to manage snowmelt and rain.
- Cold-Weather Sealants: Use sealants rated for cold weather conditions.
- Fasteners: Hucktainer or similar fasteners for composite panels.
- Drill Press: For precise hole drilling.
- Torque Wrench: To ensure correct fastener tightening.
- Sealants: Compatible with the composite material and climate conditions.
- Insufficient Support Spacing: Can lead to panel sagging or failure.
- Incompatible Fasteners: May not provide adequate hold or corrode over time.
- Inadequate Expansion Allowance: Can cause panel damage due to thermal expansion.
When installing composite panel fasteners, several common mistakes can lead to structural issues, safety hazards, and aesthetic problems. Understanding these mistakes is crucial for achieving a successful installation.
- Incompatible Materials: Using fasteners made from materials incompatible with the composite panel can lead to corrosion or inadequate hold. For example, using a fastener that reacts galvanically with the panel material can cause premature corrosion[1][11].
- Wrong Drill Point or Length: Ordering fasteners with incorrect drill points or lengths can cause installation difficulties, such as burning out the drill bit or failing to secure the panel properly[1].
- Inadequate Substrate Preparation: Failing to ensure the substrate is level and structurally sound can lead to panel sagging or detachment[9].
- Insufficient Expansion Allowance: Not accounting for thermal expansion can result in panel warping or buckling[5][4].
- Incorrect Tool Settings: Failing to set tools correctly, such as hex drive sockets, can lead to excessive wobble and damage to the fastener head[1].
- Using Wrong Tools: Using inappropriate tools or bits can cause damage to the panel or fastener[1].
- Incorrect Sealant Application: Applying sealants improperly can lead to weak bonding points or bubbles in the sealant, compromising the integrity of the installation[2].
- Inadequate Expansion Space: Not providing sufficient expansion space between panels can cause them to warp or buckle due to thermal movement[4][8].
- Safety Negligence: Ignoring safety protocols can lead to accidents during installation[1].
- Lack of Quality Control: Failing to inspect the installation regularly can result in undetected issues that may become major problems over time[5].
Installing composite panel fasteners requires careful planning and execution to ensure a successful and durable installation. By following these steps and considering special climate conditions, you can achieve professional results. Always refer to manufacturer specifications and local building codes for specific requirements.
Composite panels commonly used in construction include Aluminum Composite Materials (ACM) and Fiberglass-Reinforced Plywood. ACM is popular for exterior cladding due to its lightweight and corrosion resistance, while fiberglass-reinforced plywood is often used in truck and trailer manufacturing.
Choosing the right fasteners involves considering the type of composite material and the environmental conditions. For example, Hucktainer fasteners are suitable for fiberglass-reinforced plywood and metal-clad composite panels. Always ensure that the fasteners are compatible with the panel material and climate conditions.
Common mistakes include insufficient support spacing, using incompatible fasteners, and failing to account for thermal expansion. These errors can lead to panel damage or failure over time.
Proper joint treatment involves installing backer rods, applying compatible sealants, and allowing sufficient cure time. Consistent joint spacing and proper tooling of the sealants are also crucial.
In cold climates, it's important to allow for greater thermal expansion, include additional drainage provisions, and use cold-weather rated sealants. These measures help manage snow load impacts and prevent moisture accumulation.
