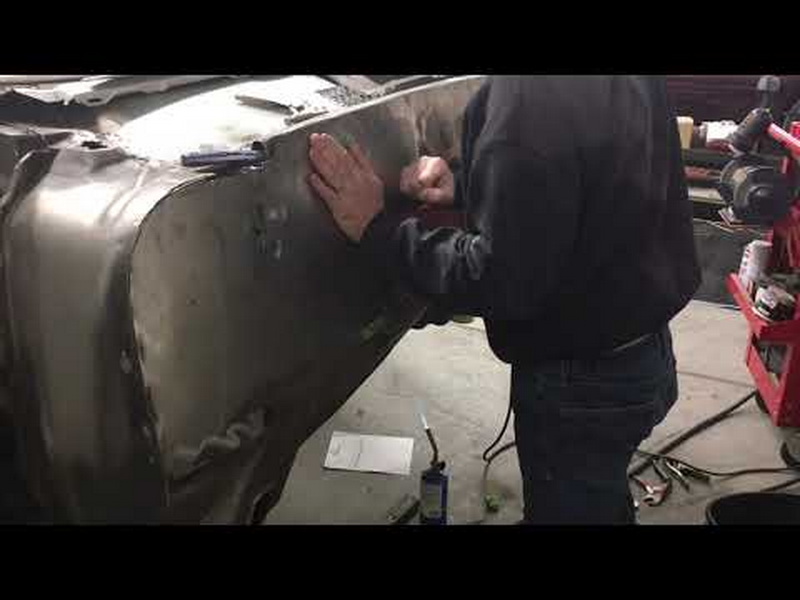

Welding aluminum body panels is a critical skill in automotive repair and fabrication. Aluminum is widely used in vehicle manufacturing due to its lightweight properties, which contribute to fuel efficiency and performance. However, welding aluminum presents unique challenges that require specific techniques and equipment. This comprehensive guide will explore the methods, tools, and best practices for successfully welding aluminum body panels.
Aluminum has distinct properties that differentiate it from other metals like steel.
- Lightweight: Aluminum is significantly lighter than steel, making it ideal for automotive applications.
- Corrosion Resistance: It naturally forms a protective oxide layer, which helps resist corrosion but complicates welding.
- Thermal Conductivity: Aluminum dissipates heat quickly, requiring careful control of heat input during the welding process.
These properties necessitate a tailored approach when welding aluminum body panels.
Before diving into the welding process, it's essential to gather the right tools and equipment:
- Welding Machine: Choose between MIG (Metal Inert Gas) or TIG (Tungsten Inert Gas) welding machines. MIG is typically easier for beginners, while TIG offers more control for intricate work.
- Filler Rods: Select appropriate filler rods based on the aluminum alloy being welded. Common options include 4047 and 4045 for general-purpose welding.
- Protective Gear: Always wear protective gear, including gloves, a welding helmet with proper shading, and flame-resistant clothing.
- Cleaning Supplies: Use stainless steel brushes or chemical cleaners to remove the oxide layer before welding.
Proper preparation is crucial for successful aluminum welding. Follow these steps:
1. Clean the Surface: Remove any contaminants such as oil, grease, dirt, and oxidation. Use a stainless steel brush or chemical cleaner specifically designed for aluminum.
2. Cutting and Fitting: Ensure that the pieces to be welded fit together snugly. Use a grinder or saw to achieve precise cuts.
3. Edge Preparation: For thicker materials, bevel the edges to create a groove that allows for better penetration during welding.
4. Clamping: Secure the panels in place using clamps to prevent movement during the welding process.
MIG welding is often preferred for aluminum body panels due to its speed and ease of use. Here's how to do it:
1. Set Up the Machine: Adjust the machine settings according to the thickness of the aluminum being welded. A good starting point is around 200 amps for 1/8 inch thick aluminum.
2. Select Shielding Gas: Use 100% argon or an argon-helium mix for better penetration on thicker materials.
3. Welding Angle: Hold the gun at a 10-15 degree angle while pushing forward to create a steady bead.
4. Travel Speed: Maintain a consistent travel speed to avoid burn-through or insufficient penetration.
5. Multiple Passes: For thicker sections, make multiple passes to ensure strength and integrity in the weld joint.
TIG welding provides more control and is ideal for thinner materials or intricate designs:
1. Machine Setup: Set your TIG welder to AC mode for aluminum and adjust amperage based on material thickness.
2. Filler Rod Technique: Introduce filler rod into the weld pool as you move along the joint, ensuring it melts into the base material.
3. Control Heat Input: Use foot pedals or amperage controls to adjust heat input dynamically as you weld.
4. Post-Weld Treatment: After welding, allow the joint to cool slowly to prevent warping or cracking.
Welding aluminum can present several challenges:
- Porosity: This occurs when gas gets trapped in the weld pool, leading to weak joints. Ensure proper cleaning and shielding gas coverage.
- Burn-Through: Thin aluminum can easily burn through if too much heat is applied. Control your travel speed and amperage carefully.
- Warping: Due to its high thermal conductivity, aluminum can warp during welding. Use heat sinks or preheat larger sections if necessary.
Welding aluminum body panels requires a combination of skill, knowledge, and proper equipment. By understanding aluminum's unique properties and following best practices in preparation and technique, you can achieve strong, durable welds that restore vehicle integrity effectively. Whether you choose MIG or TIG welding methods, practice will enhance your proficiency over time.
The best methods are MIG and TIG welding; MIG is easier for beginners while TIG offers more precision for detailed work.
To prevent warping, control heat input by adjusting travel speed and using heat sinks where necessary.
Common filler rods include 4047 and 4045; choose based on the specific alloy of aluminum being welded.
Cleaning is crucial as contaminants can lead to porosity and weak welds; always clean surfaces thoroughly before starting.
Yes, but be cautious as different thicknesses require careful heat management; consider beveling edges on thicker materials for better fusion.
