Aluminum honeycomb panels have gained significant popularity in various industries due to their unique combination of lightweight properties and exceptional strength. These panels are widely used in aerospace, automotive, construction, and furniture applications. Understanding the factors that affect the strength of aluminum honeycomb panels is crucial for engineers, designers, and manufacturers to optimize their performance for specific applications. This article delves into the various factors influencing the strength of aluminum honeycomb panels, including material properties, design considerations, manufacturing processes, and environmental influences.
*Lightweight High-Strength Aluminum Honeycomb Panels*
The strength of aluminum honeycomb panels is primarily determined by the properties of the materials used in their construction. The core material, typically aluminum, plays a significant role in the overall strength of the panel. The following material properties are critical:
The type of aluminum alloy used in the honeycomb core and face sheets significantly impacts the panel's strength. Common alloys include 5052, 6061, and 7075, each offering different mechanical properties. For instance, 7075 aluminum is known for its high strength-to-weight ratio, making it ideal for applications requiring maximum strength. The choice of alloy can also affect the panel's resistance to corrosion, fatigue, and other environmental factors.
The thickness of the honeycomb core and the face sheets also affects the panel's strength. Thicker materials generally provide greater strength and stiffness. However, increasing thickness can also add weight, which may not be desirable in applications where weight savings are critical. Engineers must balance the need for strength with the requirement for lightweight materials, especially in industries like aerospace and automotive.
The adhesive used to bond the honeycomb core to the face sheets is another crucial factor. The strength of the adhesive joint can significantly influence the overall strength of the panel. High-performance adhesives that can withstand environmental stresses and maintain their bond over time are essential for ensuring the durability of aluminum honeycomb panels. The choice of adhesive can also affect the panel's resistance to moisture and temperature variations.

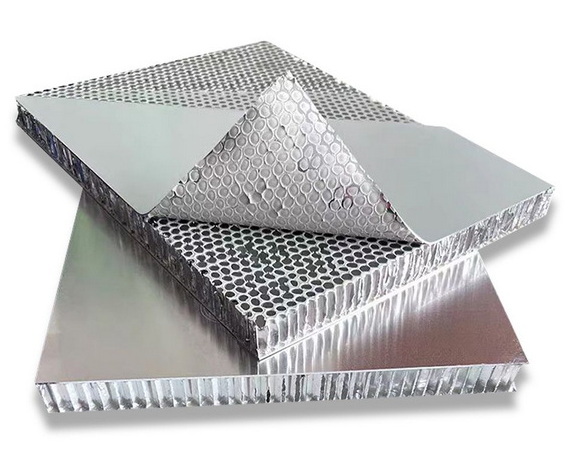

*Cross-Section of Aluminum Honeycomb Panels*
The design of aluminum honeycomb panels is a critical factor in determining their strength. Several design elements can enhance the performance of these panels:
The size and shape of the honeycomb cells influence the panel's strength and stiffness. Smaller cells generally provide higher strength and stiffness due to the increased surface area for bonding and load distribution. However, larger cells can reduce weight and material costs, making them suitable for specific applications. The design must consider the intended use of the panel and the types of loads it will encounter.
The overall geometry of the panel, including its dimensions and shape, affects its strength. Panels with larger surface areas may experience greater bending moments, leading to potential failure if not designed correctly. Engineers must consider the intended application and load conditions when designing the panel geometry. For example, panels used in structural applications may require different geometries than those used for aesthetic purposes.
Understanding how loads are distributed across the panel is essential for optimizing its strength. Panels subjected to uniform loads may perform differently than those experiencing concentrated loads. Engineers must analyze load paths and ensure that the design can accommodate the expected load conditions. This analysis often involves finite element modeling to predict how the panel will behave under various loading scenarios.
*Aluminum Honeycomb in Crash Test*
The manufacturing process used to create aluminum honeycomb panels can significantly impact their strength. Various methods are employed, each with its advantages and disadvantages:
The method used to produce the honeycomb core affects its structural integrity. Common methods include mechanical expansion, chemical expansion, and laser cutting. Each method can produce different cell sizes and shapes, influencing the panel's overall strength. For instance, laser-cut cores may offer more precise dimensions, leading to better bonding and load distribution.
The bonding process between the face sheets and the honeycomb core is critical for ensuring strength. Techniques such as adhesive bonding, welding, and mechanical fastening can be used. The choice of bonding method can affect the panel's ability to withstand shear and tensile forces. For example, adhesive bonding is often preferred for its ability to distribute stress evenly across the panel, while welding may be used for applications requiring higher temperature resistance.
Quality control during manufacturing is essential for ensuring the strength of aluminum honeycomb panels. Regular inspections and testing can help identify defects or inconsistencies in the materials or manufacturing processes that could compromise strength. Techniques such as ultrasonic testing and X-ray inspection can be employed to detect internal flaws that may not be visible externally.
Environmental factors can also affect the strength of aluminum honeycomb panels. Understanding these influences is crucial for ensuring long-term performance:
Aluminum honeycomb panels can be sensitive to temperature changes. High temperatures may cause thermal expansion, while low temperatures can lead to contraction. Engineers must consider the operating temperature range when designing panels for specific applications. In extreme environments, thermal insulation may be necessary to protect the panel's integrity.
Exposure to moisture can weaken the adhesive bonds in aluminum honeycomb panels, leading to delamination and reduced strength. Protective coatings and sealants can help mitigate these effects, but proper design and material selection are essential. Panels used in humid environments may require additional treatments to enhance their moisture resistance.
Aluminum is susceptible to corrosion when exposed to certain chemicals. Panels used in harsh environments must be designed with corrosion-resistant coatings or materials to maintain their strength and integrity over time. Understanding the chemical environment in which the panels will be used is critical for selecting appropriate materials and finishes.
*Aluminum Honeycomb Laminated Panels*
Aluminum honeycomb panels are used in various applications due to their strength and lightweight properties. Some common applications include:
In the aerospace industry, aluminum honeycomb panels are used in aircraft interiors, fuselage structures, and cargo floors. Their lightweight nature helps improve fuel efficiency while maintaining structural integrity. The aerospace sector demands high-performance materials that can withstand extreme conditions, making aluminum honeycomb panels an ideal choice.
Automakers utilize aluminum honeycomb panels in vehicle construction to reduce weight and enhance fuel efficiency. These panels are often used in doors, hoods, and other structural components. The automotive industry is increasingly focused on sustainability, and lightweight materials like aluminum honeycomb panels contribute to lower emissions and improved performance.
In construction, aluminum honeycomb panels are used for facades, ceilings, and partitions. Their strength and aesthetic appeal make them a popular choice for modern architectural designs. The versatility of aluminum honeycomb panels allows architects to create innovative designs while ensuring structural stability.
Aluminum honeycomb panels are increasingly used in furniture design due to their lightweight and durable properties. They are often found in tabletops, cabinets, and shelving units. The use of aluminum honeycomb panels in furniture allows for sleek designs without compromising strength, making them ideal for contemporary interiors.
Understanding the factors that affect the strength of aluminum honeycomb panels is essential for optimizing their performance in various applications. Material properties, design considerations, manufacturing processes, and environmental influences all play a crucial role in determining the overall strength and durability of these panels. By carefully considering these factors, engineers and designers can create aluminum honeycomb panels that meet the specific requirements of their intended applications.
The primary advantage of aluminum honeycomb panels is their exceptional strength-to-weight ratio, making them lightweight yet strong, ideal for various applications.
Thicker cores generally provide greater strength and stiffness, but they can also increase the overall weight of the panel.
Common aluminum alloys used in honeycomb panels include 5052, 6061, and 7075, each offering different mechanical properties.
Environmental factors such as temperature variations, humidity, and chemical exposure can weaken the adhesive bonds and overall structural integrity of aluminum honeycomb panels.
Aluminum honeycomb panels are commonly used in aerospace, automotive, construction, and furniture industries due to their lightweight and strong properties.
