Aluminium Composite Panels (ACPs) have become increasingly popular in the construction and signage industries due to their versatility, durability, and aesthetic appeal. These panels consist of two thin aluminium sheets bonded to a non-aluminium core, making them lightweight yet sturdy. However, working with ACPs requires specialized tools, particularly when it comes to cutting and shaping. In this comprehensive guide, we'll explore the best router bits for precision cutting of aluminium composite panels, their features, and how to choose the right one for your project.
Before delving into the specifics of router bits, it's essential to understand the material we're working with. Aluminium Composite Panels, also known as ACM or ACP, are widely used in:
- External cladding for buildings
- Interior design elements
- Signage and displays
- Transportation industry (e.g., vehicle bodies)
- Furniture and exhibitions
The unique structure of ACPs, with their aluminium faces and polymer core, presents both advantages and challenges when it comes to cutting and shaping.
Aluminium Composite Panel Structure
Selecting the appropriate router bit is crucial for achieving precise, clean cuts in aluminium composite panels. The right bit will:
- Ensure smooth edges without burrs or fraying
- Prevent delamination of the aluminium sheets from the core
- Allow for accurate folding and shaping of the panel
- Extend the life of your tools and reduce wear
- Improve overall efficiency and quality of your work
Solid carbide spiral 'O' flute router bits are highly recommended for cutting ACPs. These bits feature:
- A single flute design that efficiently evacuates chips
- A sharp cutting edge that produces clean cuts
- High heat resistance, crucial for working with aluminium

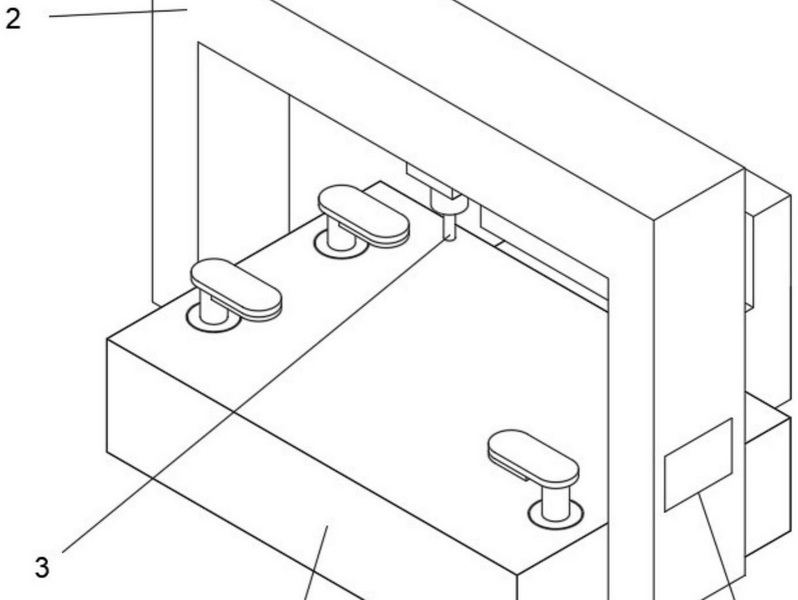

These bits are ideal for straight cuts and can handle high feed rates, making them perfect for CNC machining of ACPs.
V-groove router bits are essential for creating folds in ACPs. They come in various angles, typically:
- 90 degrees for sharp folds
- 135 degrees for softer bends
- 108 degrees for intermediate angles
These bits remove a V-shaped channel of material, allowing the panel to be folded along the groove.
Scoring bits are designed to create a shallow groove in the aluminium face of the panel. This technique is used when:
- Preparing panels for folding
- Creating decorative patterns
- Allowing for expansion and contraction in outdoor applications
Compression spiral bits feature:
- An upcut spiral at the bottom
- A downcut spiral at the top
This design compresses the material as it cuts, reducing the risk of delamination and producing exceptionally clean edges.
When selecting the best router bit for your ACP cutting needs, consider the following factors:
Different ACPs may have varying core materials and aluminium thicknesses. Ensure your chosen bit is compatible with the specific panel you're working with.
The optimal cutting speed and feed rate depend on the bit type and the ACP's composition. Generally:
- Higher speeds are suitable for straight cuts
- Lower speeds are better for intricate shapes and curves
The diameter of the router bit affects:
- The width of the cut
- The minimum radius of curves you can achieve
- The overall cutting speed
Choose a diameter that balances precision with efficiency for your project.
Ensure the bit's shank size is compatible with your router or CNC machine. Common sizes include:
- 1/4 inch
- 1/2 inch
- 8mm
- 12mm
Some router bits come with special coatings that can:
- Reduce friction
- Improve heat dissipation
- Extend the life of the bit
Consider coated bits for high-volume production or challenging materials.
To achieve the best results when cutting aluminium composite panels:
1. Maintain sharp bits: Regularly sharpen or replace your router bits to ensure clean cuts.
2. Use appropriate speeds: Start with lower speeds and gradually increase to find the optimal cutting speed for your material.
3. Secure the panel: Properly clamp the ACP to prevent vibration and ensure accurate cuts.
4. Consider chip evacuation: Use dust extraction systems to remove chips and prevent overheating.
5. Practice on scrap material: Test your setup on scrap pieces before cutting valuable panels.
6. Use coolants: For high-speed or prolonged cutting, consider using appropriate coolants to prevent overheating.
Based on the factors discussed, here are some top recommendations for aluminium composite panel router bits:
Amana Tool 51411 Solid Carbide CNC Spiral 'O' Flute
- Diameter: 1/4 inch
- Overall Length: 2 inches
- Cutting Length: 3/4 inch
- Shank: 1/4 inch
This bit excels in producing smooth, clean cuts in ACPs and other non-ferrous metals.
Freud 22-130 90-Degree V-Groove Bit
- Diameter: 1-3/8 inch
- Cutting Length: 1/2 inch
- Shank: 1/2 inch
Perfect for creating precise 90-degree folds in ACPs.
MLCS 7688 Solid Carbide ACM Scoring Bit
- Diameter: 1/8 inch
- Cutting Length: 1/4 inch
- Shank: 1/4 inch
Ideal for creating shallow grooves for decorative purposes or preparing panels for folding.
Whiteside 1072 Compression Spiral Bit
- Diameter: 1/2 inch
- Cutting Length: 1-1/2 inch
- Shank: 1/2 inch
Excellent for producing clean, delamination-free edges on ACPs.
To ensure longevity of your router bits and maintain safety:
1. Clean bits after each use to remove debris and prevent corrosion.
2. Store bits in a dry, organized manner to protect cutting edges.
3. Wear appropriate personal protective equipment, including safety glasses and hearing protection.
4. Follow manufacturer guidelines for maximum RPM and feed rates.
5. Regularly inspect bits for signs of wear or damage.
Choosing the best aluminium composite panel router bit for precision cutting involves considering various factors such as the specific application, material properties, and desired finish. Solid carbide spiral 'O' flute bits are excellent for general cutting, while V-groove bits are essential for creating folds. Scoring bits and compression spiral bits offer specialized solutions for specific ACP working techniques.
By selecting the right bit, following best practices, and maintaining your tools properly, you can achieve professional-quality results when working with aluminium composite panels. Remember to prioritize safety and always test your setup on scrap material before tackling your main project.
The frequency of replacement depends on usage, but generally:
- For occasional use: Every 6-12 months
- For regular use: Every 3-6 months
- For heavy industrial use: Monthly or as needed based on performance
Signs that it's time to replace your bit include:
- Increased cutting resistance
- Rough or uneven edges on cut panels
- Visible wear or chipping on the cutting edges
While it's possible to use some woodworking bits on ACPs, it's not recommended. ACPs require specialized bits designed to handle the unique properties of aluminium and composite materials. Using woodworking bits may result in:
- Poor cut quality
- Rapid bit wear
- Potential safety hazards
Always use bits specifically designed for ACPs to ensure the best results and safety.
The ideal cutting speed varies depending on the router bit, panel thickness, and specific application. However, a general guideline is:
- For straight cuts: 16,000-22,000 RPM
- For curved cuts or intricate designs: 12,000-18,000 RPM
Always start at a lower speed and gradually increase until you achieve the desired cut quality without overheating the material.
To prevent delamination:
1. Use compression spiral bits or bits designed specifically for ACPs
2. Ensure your router bit is sharp and clean
3. Use appropriate cutting speeds and feed rates
4. Secure the panel firmly to prevent vibration
5. Consider using a sacrificial backing board
6. Cut in multiple passes for thicker panels
While it's possible to sharpen some router bits at home, it's generally recommended to have ACP router bits professionally sharpened. This ensures:
- Proper geometry is maintained
- Even sharpening across all cutting edges
- No damage to specialized coatings
If you choose to sharpen bits yourself, use diamond sharpening tools and follow manufacturer guidelines carefully.
