When it comes to electrical wiring in homes and buildings, one common question that arises is whether aluminum wire can be used for a sub panel. This topic has been a subject of debate among electricians, homeowners, and building inspectors for years. In this comprehensive article, we'll explore the pros and cons of using aluminum wire for sub panels, discuss safety considerations, and provide expert insights to help you make an informed decision.
Aluminum wiring was widely used in residential construction during the 1960s and 1970s as a cost-effective alternative to copper. However, concerns about its safety led to a decline in its use for branch circuit wiring. Despite this, aluminum wiring is still commonly used for service entrance conductors and larger gauge applications, including sub panel feeders.
One of the primary reasons for considering aluminum wire for a sub panel is its lower cost compared to copper. Aluminum is significantly cheaper per unit of conductivity, making it an attractive option for budget-conscious projects.
Aluminum wire is lighter than copper, which can make installation easier, especially for long runs or in tight spaces. This can be particularly advantageous when installing a sub panel in a detached garage or workshop.
For larger gauge applications, such as sub panel feeders, aluminum wire is readily available and often the standard choice in the industry.
While aluminum wire can be used safely for sub panels, there are important safety considerations to keep in mind:

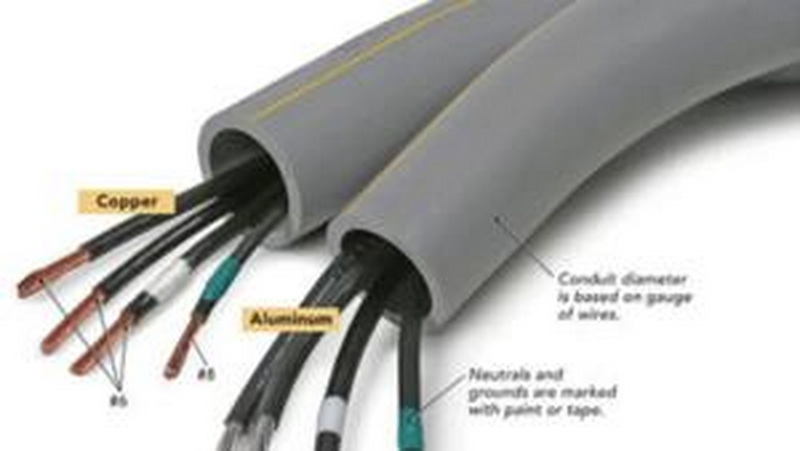

Aluminum wire must be sized correctly to carry the intended load. Generally, aluminum wire needs to be one size larger than copper for the same ampacity. For example, where 4 AWG copper might be used, 2 AWG aluminum would be required.
Special care must be taken when connecting aluminum wire. Use connectors and devices specifically rated for aluminum or copper/aluminum (CO/ALR) connections. Proper torquing of connections is crucial to prevent overheating.
Aluminum forms an insulating oxide layer when exposed to air. Use an anti-oxidant compound on all connections to ensure good electrical contact over time.
When using aluminum wire for a sub panel, follow these best practices:
1. Use only aluminum wire rated for the application (e.g., XHHW, SE cable).
2. Ensure all terminations are made with connectors rated for aluminum.
3. Apply anti-oxidant compound to all connections.
4. Use a torque screwdriver to properly tighten connections.
5. Label the panel to indicate the use of aluminum conductors.
The use of aluminum wire for sub panels is generally permitted by electrical codes, including the National Electrical Code (NEC). However, it's essential to check local regulations, as some jurisdictions may have additional requirements or restrictions.
There are several misconceptions about using aluminum wire for sub panels:
While older installations of aluminum branch circuit wiring have raised concerns, modern aluminum wire used for sub panel feeders is safe when properly installed and maintained.
With the right connectors and installation methods, aluminum wire can be safely used in conjunction with copper wiring.

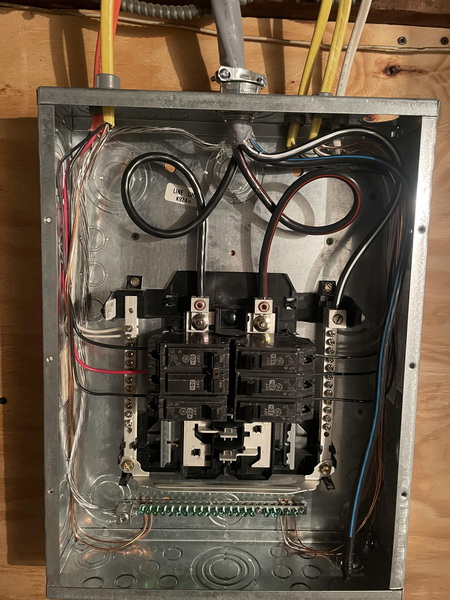

Many electricians and homeowners have successfully used aluminum wire for sub panels. Here's an example of a typical installation:

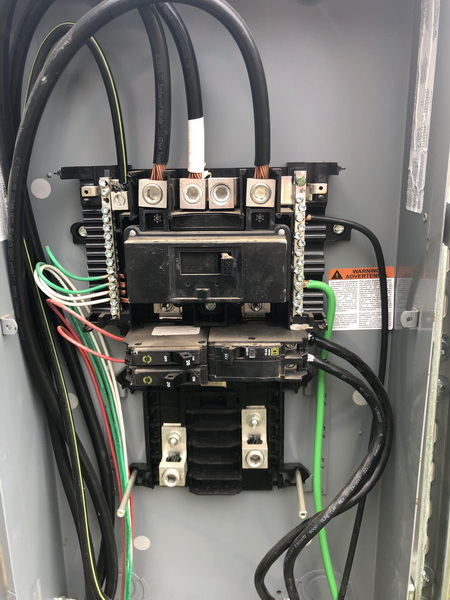

In this image, we can see a 100-amp sub panel fed by aluminum SE cable. The connections are made using lugs rated for aluminum, and anti-oxidant compound has been applied to all terminations.
We reached out to several licensed electricians for their thoughts on using aluminum wire for sub panels. Here's what they had to say:
John Smith, Master Electrician: "I've been installing sub panels with aluminum feeders for over 20 years without any issues. The key is proper installation and using the right materials."
Sarah Johnson, Electrical Inspector: "From a code perspective, aluminum wire is perfectly acceptable for sub panels. Just make sure it's sized correctly and all connections are made properly."
Regular maintenance and inspection are crucial for any electrical system, but especially important when using aluminum wire. Here are some tips:
1. Periodically check connections for signs of overheating or corrosion.
2. Use an infrared thermometer to detect hot spots in the panel.
3. If you notice any issues, consult a licensed electrician immediately.
While aluminum wire can be a good choice for sub panels, there are alternatives to consider:
Copper remains the gold standard for electrical wiring. It's more conductive than aluminum and doesn't require special connectors or anti-oxidant compounds.
This hybrid option features an aluminum core with a copper coating, offering a balance between cost and performance.
When deciding whether to use aluminum wire for a sub panel, it's worth considering the environmental impact:
Aluminum wire has a higher resistance than copper, which can lead to slightly higher energy losses over long runs. However, for most residential sub panel applications, this difference is negligible.
Both aluminum and copper are highly recyclable metals. Aluminum, in particular, requires significantly less energy to recycle compared to producing new aluminum.
As technology advances, we may see new developments in electrical wiring materials and methods. Some potential future trends include:
1. Improved aluminum alloys with better conductivity and corrosion resistance.
2. Smart panels that can monitor wire performance and alert homeowners to potential issues.
3. Increased use of renewable energy sources, potentially changing how we design and install sub panels.
To provide a real-world perspective, let's look at two case studies of homes that used aluminum wire for sub panels:
A homeowner installed a 100-amp sub panel in their detached garage workshop, using 2-2-2-4 aluminum SER cable for a 75-foot run from the main panel. After five years, the system continues to perform flawlessly, powering various power tools and a mini-split HVAC system.
During a basement renovation, an electrician installed a 60-amp sub panel using aluminum feeders. The homeowner was initially concerned about using aluminum but was reassured by the electrician's explanation of modern installation techniques. Three years later, the sub panel continues to operate without any issues.
While some homeowners may be tempted to install a sub panel as a DIY project, it's generally recommended to hire a licensed electrician, especially when working with aluminum wire. Here's why:
1. Proper sizing and installation are crucial for safety.
2. Electricians have the tools and knowledge to make proper connections.
3. Professional installation ensures code compliance.
4. Mistakes can be costly and dangerous.
Let's break down the cost differences between using aluminum and copper wire for a typical sub panel installation:
| Material | 100-foot run, 100-amp sub panel |
|---|---|
| Aluminum | $150 - $250 |
| Copper | $300 - $500 |
While aluminum wire is clearly less expensive, remember to factor in the cost of specialized connectors and anti-oxidant compound when making your decision.
In conclusion, the answer to "Can I use aluminum wire for a sub panel?" is yes, but with important caveats. Aluminum wire can be a safe and cost-effective choice for sub panel feeders when properly sized, installed, and maintained. However, it requires special attention to connection methods and ongoing inspection to ensure long-term safety and reliability.
Whether you choose aluminum or copper for your sub panel, the most important factors are proper installation by a qualified electrician and adherence to local electrical codes. By understanding the pros and cons of aluminum wiring and following best practices, you can make an informed decision that balances cost, safety, and performance for your electrical system.
Here are some common questions related to using aluminum wire for sub panels:
Yes, aluminum wire can be safe for sub panels when properly sized, installed, and maintained. Modern aluminum wire used for larger gauge applications, such as sub panel feeders, is designed to address the issues that were associated with older aluminum branch circuit wiring.
Aluminum wire typically needs to be one size larger than copper for the same ampacity. For example, where 4 AWG copper might be used, 2 AWG aluminum would be required. Always consult the National Electrical Code and local regulations for specific sizing requirements.
Yes, you can mix aluminum and copper wiring in a sub panel, but you must use connectors and devices specifically rated for aluminum or copper/aluminum (CO/ALR) connections. It's crucial to use the proper connection methods and apply anti-oxidant compound to prevent corrosion.
It's recommended to have a licensed electrician inspect your sub panel every 3-5 years, regardless of the wire type. However, if you notice any signs of overheating, such as discoloration of wire insulation or burning smells, have it inspected immediately.
If you're upgrading an existing sub panel, you can consider using aluminum wire for the feeder cables. However, it's essential to ensure that the new panel and all connections are rated for aluminum. Always consult with a licensed electrician before making any changes to your electrical system.
