Extruded aluminum honeycomb is a versatile and lightweight material widely used in various industries, including aerospace, construction, and transportation. Its unique structure, mimicking the natural honeycomb, provides exceptional strength-to-weight ratio, corrosion resistance, and impact absorption. This article delves into the manufacturing process of extruded aluminum honeycomb, exploring its production stages and applications.

Introduction to Aluminum Honeycomb

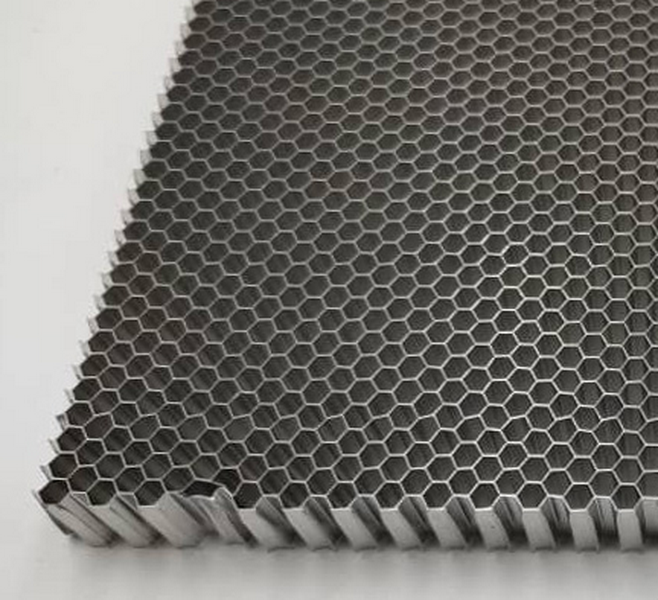

Aluminum honeycomb is a structural component composed of thin aluminum sheets or foils bonded together in a geometric honeycomb pattern. This design enhances rigidity while maintaining a low weight, making it ideal for applications where weight reduction and high performance are crucial. The core can be used alone or sandwiched between other materials to create composite panels with improved mechanical characteristics.

Manufacturing Process of Extruded Aluminum Honeycomb

The production of extruded aluminum honeycomb involves several precise stages:

1. Aluminum Foil Preparation:

The process begins with selecting high-quality aluminum foil, typically made from 3000 or 5000 series aluminum foils or sheets, known for their excellent strength-to-weight ratio and corrosion resistance. The aluminum foil is cut to the required thickness, usually ranging between 0.02 mm and 0.1 mm, depending on the desired strength and application of the final honeycomb core.

2. Surface Treatment:

Once cut, the aluminum foil undergoes essential surface treatments to enhance its bonding capability and durability:

- Degreasing: The foil is cleaned to remove oils, grease, and other contaminants that may interfere with adhesion.

- Etching: A mild chemical etching process creates a roughened surface, improving the mechanical grip of the adhesive and enhancing the bonding strength between layers.

- Coating (Optional): In applications requiring extra durability, the foil is coated with corrosion-resistant layers such as chromate or epoxy-based coatings to protect against oxidation and environmental damage.

3. Adhesive Application:

After surface treatment, an industrial-grade adhesive is applied to the aluminum foil sheets. The adhesive must be carefully selected based on the strength, temperature resistance, and environmental exposure requirements of the final product. Commonly used adhesives include phenolic, epoxy-based, and polyurethane adhesives.

4. Stacking and Pressing:

Once the adhesive is applied, multiple layers of aluminum foil are stacked on top of each other in a highly controlled manner. The alignment of layers is crucial to ensuring uniformity and structural consistency. After stacking, the sheets undergo hot or cold pressing to activate the adhesive and bond the layers into a compact block.

5. Expansion into Honeycomb Structure:

Once the adhesive has fully cured, the bonded aluminum block is expanded to form the characteristic hexagonal cell structure of the honeycomb core. Expansion can be carried out using different methods depending on production scale and precision requirements.

6. Cutting and Shaping:

After expansion, the honeycomb core is cut into precise dimensions based on its intended application. Cutting is performed using advanced techniques to maintain the uniformity and structural integrity of the honeycomb cells.

7. Surface Treatment and Final Processing:

Before the aluminum honeycomb core is ready for use, it undergoes final treatments to enhance its durability and suitability for different environments. This may include corrosion protection coatings or fire-resistant coatings.

Applications of Extruded Aluminum Honeycomb

Extruded aluminum honeycomb is widely used in various industries due to its unique properties:

- Aerospace: For aircraft and spacecraft components where weight reduction and high strength are critical.

- Construction: In building facades and cladding for its thermal insulation and structural integrity.

- Transportation: In vehicle bodies for lightweight and impact-resistant structures.

Innovations in Aluminum Honeycomb Applications

The versatility of extruded aluminum honeycomb has led to its adoption in a wide range of innovative applications:

- Aerospace: Beyond traditional aircraft components, aluminum honeycomb is being used in satellite structures and spacecraft due to its lightweight and high-strength properties.

- Construction: In addition to building facades, honeycomb cores are used in energy-efficient building insulation systems and acoustic panels.

- Transportation: Besides vehicle bodies, aluminum honeycomb is used in high-speed rail components and marine vessels for its impact resistance and corrosion protection.

Applications of Extruded Aluminum Honeycomb

Extruded aluminum honeycomb is widely used in various industries due to its unique properties:

- Aerospace: For aircraft and spacecraft components where weight reduction and high strength are critical.

- Construction: In building facades and cladding for its thermal insulation and structural integrity.

- Transportation: In vehicle bodies for lightweight and impact-resistant structures.

Sustainability and Environmental Impact

The production and use of extruded aluminum honeycomb also have significant environmental implications. Aluminum is a recyclable material, which makes honeycomb cores highly sustainable. Additionally, the lightweight nature of aluminum honeycomb reduces the overall weight of structures, leading to energy savings in transportation and construction. However, the manufacturing process involves energy-intensive steps, and efforts are being made to optimize production efficiency and reduce environmental impact.

Future Developments

As technology continues to evolve, we can expect further innovations in the production and application of extruded aluminum honeycomb. Advances in materials science may lead to the development of new alloys with improved properties, while advancements in manufacturing technologies could enhance efficiency and reduce costs. The integration of smart materials and sensors into honeycomb structures could also enable real-time monitoring and adaptive performance in various applications.

Conclusion

Extruded aluminum honeycomb is a highly versatile material with a wide range of applications. Its manufacturing process involves precise stages from aluminum foil preparation to final surface treatments. Understanding these processes is crucial for optimizing its use in various industries.

Frequently Asked Questions

1. What is the primary material used in extruded aluminum honeycomb?

Extruded aluminum honeycomb is primarily made from thin aluminum foils, typically from the 3000 or 5000 series, known for their strength and corrosion resistance.

2. How is the honeycomb structure formed?

The honeycomb structure is formed by expanding a stack of heat-bonded aluminum foil into a hexagonal cell pattern.

3. What are the common applications of extruded aluminum honeycomb?

Extruded aluminum honeycomb is commonly used in aerospace, construction, and transportation industries due to its lightweight and high-strength properties.

4. What types of adhesives are used in bonding aluminum honeycomb layers?

Common adhesives include phenolic, epoxy-based, and polyurethane adhesives, chosen based on the required strength and environmental resistance.

5. Can extruded aluminum honeycomb be customized for specific applications?

Yes, extruded aluminum honeycomb can be customized in terms of size, thickness, and density to meet different application needs.
