Fusing aluminum panels is a vital skill in construction, automotive repair, DIY projects, and industrial fabrication. Aluminum's unique properties—lightweight, corrosion-resistant, and strong—make it a popular choice, but its fusion requires specialized methods and careful technique. This comprehensive guide explores how to fuse aluminum panel using various methods, from professional welding to accessible brazing and soldering, with detailed steps, safety tips, and visual aids to ensure success for both beginners and experienced fabricators.
Aluminum panels are widely used in architecture, transportation, and manufacturing due to their versatility and durability. However, fusing (joining) aluminum presents challenges not found with other metals, primarily because of its rapid oxidation and high thermal conductivity. Understanding the right techniques and preparation steps is crucial for achieving strong, lasting joints.
Aluminum's natural oxide layer forms instantly when exposed to air, creating a barrier that complicates fusion. Its high thermal conductivity means heat dissipates quickly, making it harder to maintain the necessary temperature at the joint. Additionally, aluminum's lower melting point compared to other metals increases the risk of burning through the material.
Before starting any fusion process, proper preparation is essential:
- Clean the Surface: Use a stainless steel wire brush to remove the oxide layer and any contaminants. Acetone can be used to wipe away oils or grease.
- Fit and Clamp: Ensure panels align perfectly. Use clamps to secure them and maintain alignment during fusion.
- Ventilation: Work in a well-ventilated area to avoid inhaling fumes.
- Protective Gear: Wear gloves, safety glasses, and appropriate clothing to protect against burns and UV radiation.
There are several effective ways to fuse aluminum panels, each with its own advantages and use cases.
- Best for: High-quality, precise, and strong joints.
- How it works: Uses a non-consumable tungsten electrode and an inert gas (usually argon) to protect the weld area from oxidation.
- Pros: Clean, precise welds; minimal contamination.
- Cons: Requires skill and specialized equipment.
- Best for: Fast, versatile, and industrial-scale welding.
- How it works: Uses a consumable wire electrode and inert gas shielding.
- Pros: High speed, suitable for thicker panels.
- Cons: Less precise than TIG; more spatter.
- Best for: Quick, strong joints without melting the base metal.
- How it works: Uses a filler rod with a lower melting point than aluminum; the rod melts and flows into the joint.
- Pros: No need for expensive welding equipment; strong bond.
- Cons: Joint is not as strong as a weld; requires clean surfaces.
- Best for: Low-stress joints, electronics, or thin panels.
- How it works: Uses a low-melting-point alloy (solder) to join panels.
- Pros: Simple, low-heat process.
- Cons: Weaker than welding or brazing; aluminum oxide must be removed immediately before soldering.
- Best for: Non-structural or temporary joints.
- How it works: Uses industrial adhesives or mechanical fasteners (rivets).
- Pros: No heat required; simple tools.
- Cons: Not suitable for high-stress applications.
Brazing is a popular and accessible method for fusing aluminum panels, especially for DIYers and small-scale fabricators.
- Aluminum panels
- Aluminum brazing rods
- Propane or MAP gas torch
- Stainless steel wire brush
- Clamps
- Safety gear (gloves, goggles)
1. Clean the Surfaces
- Thoroughly brush the joining edges with a stainless steel wire brush.
- Wipe with acetone to remove oils.
2. Fit and Clamp
- Align the panels and clamp them securely.
3. Heat the Joint
- Use the torch to heat the joint area evenly.
- Do not apply the flame directly to the brazing rod; heat the base metal until it's hot enough to melt the rod.
4. Apply Brazing Rod
- Touch the brazing rod to the joint. If the temperature is correct, the rod will melt and flow into the joint.
- Move the rod along the seam, ensuring even coverage.
5. Cool and Inspect
- Allow the joint to cool naturally.
- Inspect for gaps or weak spots; reheat and add more rod if needed.
Heating the joint with a propane torch and applying the brazing rod.
Video Tutorial: How to Braze Aluminum
TIG welding is the gold standard for professional aluminum panel fusion.
- TIG welder with AC capability
- Argon gas supply
- Tungsten electrode
- Aluminum filler rod (matching alloy)
- Stainless steel wire brush
- Clamps
- Safety gear (welding helmet, gloves, jacket)
1. Preparation
- Clean the aluminum surfaces and remove oxide layers.
- Clamp the panels for a tight fit.
2. Set Up the Welder
- Use AC mode for aluminum.
- Set the correct amperage based on panel thickness.
- Ensure a steady argon gas flow.
3. Welding
- Strike an arc with the tungsten electrode.
- Add filler rod as the weld pool forms.
- Move steadily along the joint, maintaining a consistent arc length and travel speed.
4. Finishing
- Allow the weld to cool.
- Inspect and, if necessary, grind or polish the bead for aesthetics.

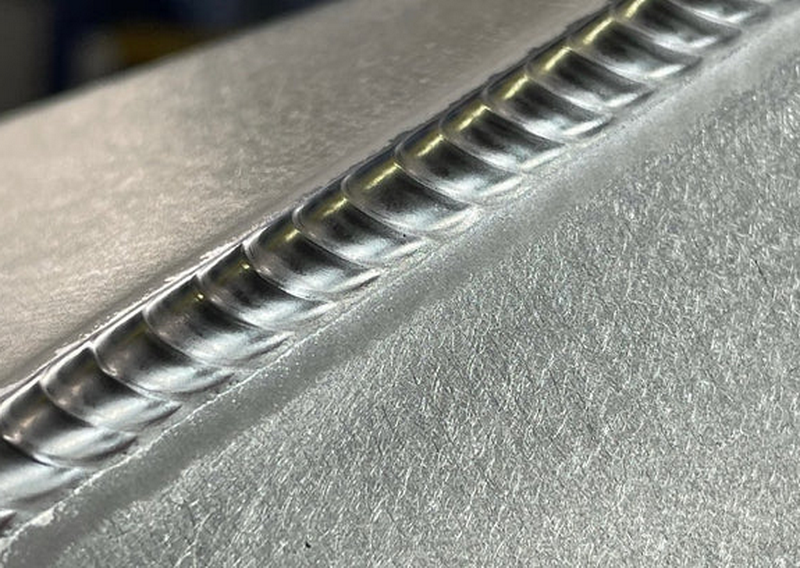

TIG welding setup for aluminum panels.
Video Tutorial: TIG Welding Aluminum
- Always clean the aluminum immediately before fusion to prevent oxide formation.
- Preheat thicker panels to reduce thermal shock and improve flow.
- Use the correct filler material for the specific aluminum alloy.
- Practice on scrap pieces to perfect your technique.
- For brazing or soldering, avoid overheating—aluminum melts quickly and can lose structural integrity.
- Not Cleaning Properly: Skipping surface preparation leads to weak joints.
- Overheating: Melting the base metal instead of just the filler rod (in brazing/soldering) can ruin the panel.
- Incorrect Filler Rod: Using the wrong alloy can cause brittle or weak joints.
- Poor Fit-Up: Gaps between panels reduce joint strength.
- Inadequate Clamping: Movement during fusion can result in misalignment.
Mastering how to fuse aluminum panel opens up a world of creative and practical possibilities. Whether you choose TIG welding for professional results, MIG welding for speed, or brazing and soldering for accessible DIY solutions, the keys to success are preparation, cleanliness, and practice. Always prioritize safety, use the right materials, and don't hesitate to consult expert resources or training for advanced projects. With the right approach, your fused aluminum panels will be strong, durable, and ready for any application.
TIG welding is generally considered the best for structural strength and clean, precise joints. It provides high-quality welds with minimal contamination, especially when using the appropriate filler rod and shielding gas.
Yes, you can use brazing rods and a propane torch to join aluminum panels without a traditional welder. This method is accessible, strong for many applications, and ideal for DIYers.
The oxide layer prevents proper bonding between the panels and the filler material. Removing it ensures a strong, reliable joint and reduces the risk of joint failure.
Wear protective gloves, safety glasses, and appropriate clothing. Work in a well-ventilated area to avoid inhaling fumes, and ensure you have a fire extinguisher nearby.
Use lower heat settings, preheat the panels if necessary, and clamp them securely. Move quickly and evenly along the joint to minimize heat buildup in any one area.
