Aluminum honeycomb panels have gained significant popularity in various industries due to their remarkable strength-to-weight ratio, durability, and versatility. These panels are widely used in aerospace, automotive, construction, and interior design applications. Understanding how the strength of aluminum honeycomb panels is achieved involves exploring their unique structural design, material properties, and manufacturing processes. This article delves into these aspects, providing insights into the engineering behind aluminum honeycomb panels.

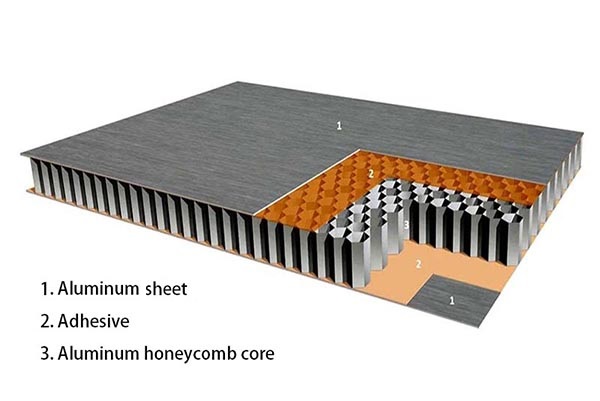

At the core of aluminum honeycomb panels is their distinctive honeycomb structure. This design consists of a series of hexagonal cells that are arranged in a way that resembles a beehive. The honeycomb core is sandwiched between two thin layers of aluminum, known as skins. This configuration is crucial for achieving the panels' strength and rigidity.
The honeycomb core is made from aluminum sheets that are cut and formed into hexagonal shapes. This core structure provides several advantages:
1. Load Distribution: The hexagonal shape allows for efficient load distribution across the panel. When force is applied to the surface, the load is spread evenly throughout the core, minimizing stress concentrations.
2. Shear Strength: The design of the honeycomb core enhances its shear strength, making it resistant to deformation under lateral forces. This is particularly important in applications where panels are subjected to wind loads or impacts.
3. Lightweight Nature: The hollow cells of the honeycomb core significantly reduce the overall weight of the panel without compromising strength. This lightweight characteristic is essential in industries like aerospace, where every ounce counts.
The outer layers of aluminum, or skins, play a vital role in the overall strength of the honeycomb panel. These skins are typically made from high-strength aluminum alloys, which contribute to the panel's durability and resistance to environmental factors.
1. Tensile Strength: The aluminum skins provide tensile strength, allowing the panel to withstand stretching and pulling forces. This is crucial in applications where the panel may experience tension.
2. Impact Resistance: The skins also enhance the panel's resistance to impacts. The combination of the honeycomb core and aluminum skins creates a robust structure that can absorb energy from impacts without significant damage.
3. Corrosion Resistance: Aluminum is naturally resistant to corrosion, making honeycomb panels suitable for outdoor applications. The skins protect the core from moisture and environmental elements, extending the panel's lifespan.
The manufacturing process of aluminum honeycomb panels is a critical factor in achieving their strength. The process involves several steps, including material selection, core fabrication, skin preparation, and assembly.
Choosing the right materials is essential for producing high-quality aluminum honeycomb panels. The aluminum used for the skins is typically selected based on its strength, weight, and corrosion resistance. Common alloys include 5052 and 6061, which offer excellent mechanical properties. These alloys are chosen not only for their strength but also for their ability to be easily formed and welded, which is crucial during the manufacturing process.
The honeycomb core is fabricated by cutting aluminum sheets into strips and then forming them into hexagonal shapes. This process can be done using various methods, including:
- Die Cutting: This method involves using a die to cut the aluminum sheets into the desired shape. It is efficient for producing large quantities of honeycomb cores.
- Laser Cutting: Laser cutting provides precision and flexibility in shaping the core. It is ideal for custom designs and smaller production runs.
Once the strips are cut, they are bonded together to form the honeycomb structure. This bonding can be achieved using adhesives or by mechanical means. The choice of bonding method can affect the overall strength and durability of the panel, making it a critical consideration during manufacturing.
The aluminum skins are prepared by cutting them to the required dimensions and surface treatment. Surface treatments, such as anodizing or painting, can enhance the skins' corrosion resistance and aesthetic appeal. Anodizing, in particular, creates a protective oxide layer that not only improves corrosion resistance but also allows for various color finishes, making the panels visually appealing for architectural applications.
The final step in the manufacturing process is assembling the honeycomb core and aluminum skins. This is typically done using adhesives that provide a strong bond between the core and skins. The assembly process may involve:
- Pressing: The core and skins are pressed together to ensure a tight bond.
- Curing: The adhesive is cured to achieve maximum strength. This can be done at room temperature or in an oven, depending on the adhesive used.
Once assembled, the panels are cut to size and undergo quality control checks to ensure they meet the required specifications. This quality assurance process is vital to ensure that the panels can withstand the intended loads and environmental conditions.
The strength and lightweight nature of aluminum honeycomb panels make them suitable for a wide range of applications:
In the aerospace industry, aluminum honeycomb panels are used in aircraft interiors, fuselage structures, and cargo floors. Their lightweight design contributes to fuel efficiency, while their strength ensures safety and durability. The use of these panels helps reduce the overall weight of the aircraft, which is critical for improving fuel efficiency and performance.
Aluminum honeycomb panels are increasingly used in automotive applications, including body panels, floor structures, and interior components. The panels help reduce vehicle weight, improving fuel efficiency and performance. Additionally, their ability to absorb energy during impacts enhances passenger safety, making them a preferred choice for modern vehicle designs.
In construction, aluminum honeycomb panels are used for facades, ceilings, and partitions. Their aesthetic appeal, combined with strength and insulation properties, makes them a popular choice for modern architectural designs. The panels can be finished in various colors and textures, allowing architects to create visually striking buildings while maintaining structural integrity.
The marine industry utilizes aluminum honeycomb panels for boat hulls, decks, and interior structures. The panels' resistance to corrosion and lightweight nature make them ideal for marine environments. Their ability to withstand harsh conditions while providing structural support is essential for the longevity and performance of marine vessels.
Aluminum honeycomb panels offer several advantages over traditional materials:
1. High Strength-to-Weight Ratio: The combination of the honeycomb core and aluminum skins results in a panel that is both strong and lightweight, making it ideal for applications where weight is a concern.
2. Energy Absorption: The honeycomb structure is effective at absorbing energy from impacts, reducing the risk of damage. This property is particularly beneficial in applications where safety is paramount.
3. Thermal Insulation: The air-filled cells of the honeycomb core provide thermal insulation, making these panels suitable for energy-efficient buildings. This insulation helps maintain comfortable indoor temperatures while reducing energy costs.
4. Versatility: Aluminum honeycomb panels can be customized in terms of size, shape, and finish, allowing for a wide range of applications. This adaptability makes them suitable for both industrial and aesthetic purposes.
5. Sustainability: Aluminum is a recyclable material, making honeycomb panels an environmentally friendly choice. The ability to recycle aluminum reduces waste and conserves natural resources, aligning with modern sustainability goals.
The strength of aluminum honeycomb panels is achieved through their innovative design, material properties, and manufacturing processes. The combination of a honeycomb core and aluminum skins results in a lightweight yet robust structure that is suitable for various applications. As industries continue to seek materials that offer strength, durability, and efficiency, aluminum honeycomb panels will remain a popular choice.
Aluminum honeycomb panels are made of a honeycomb core sandwiched between two layers of aluminum skins. The core is typically formed from aluminum sheets, while the skins are made from high-strength aluminum alloys.
The benefits include a high strength-to-weight ratio, energy absorption, thermal insulation, versatility, and sustainability. These properties make them suitable for a wide range of applications across various industries.
They are commonly used in aerospace, automotive, construction, and marine industries. Their lightweight and strong characteristics make them ideal for applications where performance and safety are critical.
The manufacturing process involves material selection, core fabrication, skin preparation, and assembly using adhesives. Each step is crucial to ensure the final product meets the required specifications for strength and durability.
Yes, aluminum is a recyclable material, making honeycomb panels an environmentally friendly choice. The recycling process helps reduce waste and conserve natural resources, contributing to sustainable practices in manufacturing.
